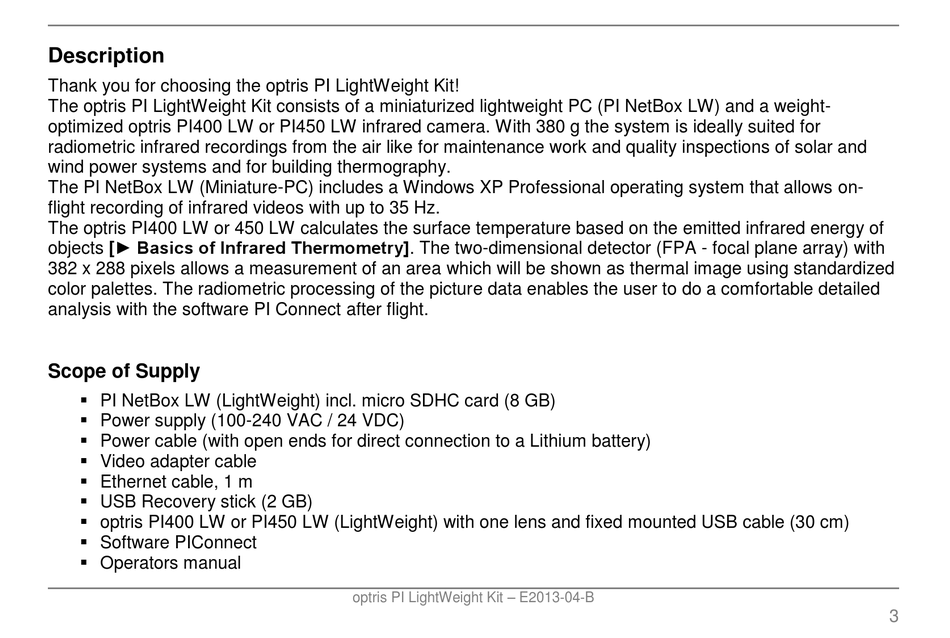

Description

Thank you for choosing the optris PI LightWeight Kit!
The optris PI LightWeight Kit consists of a miniaturized lightweight PC (PI NetBox LW) and a weight-
optimized optris PI400 LW or PI450 LW infrared camera. With 380 g the system is ideally suited for
radiometric infrared recordings from the air like for maintenance work and quality inspections of solar and
wind power systems and for building thermography.
The PI NetBox LW (Miniature-PC) includes a Windows XP Professional operating system that allows on-
flight recording of infrared videos with up to 35 Hz.
The optris PI400 LW or 450 LW calculates the surface temperature based on the emitted infrared energy of
objects [► Basics of Infrared Thermometry]. The two-dimensional detector (FPA - focal plane array) with
382 x 288 pixels allows a measurement of an area which will be shown as thermal image using standardized
color palettes. The radiometric processing of the picture data enables the user to do a comfortable detailed
analysis with the software PI Connect after flight.

Scope of Supply

 PI NetBox LW (LightWeight) incl. micro SDHC card (8 GB)
 Power supply (100-240 VAC / 24 VDC)
 Power cable (with open ends for direct connection to a Lithium battery)
 Video adapter cable
 Ethernet cable, 1 m
 USB Recovery stick (2 GB)
 optris PI400 LW or PI450 LW (LightWeight) with one lens and fixed mounted USB cable (30 cm)
 Software PIConnect
 Operators manual
