- Page 1 Mikrotherm Manual radiator valves with presetting eNGiNeeriNG ADVANtAGe Pressurisation & Water Quality Balancing & Control Thermostatic Control...
-
Page 2: Technical Description

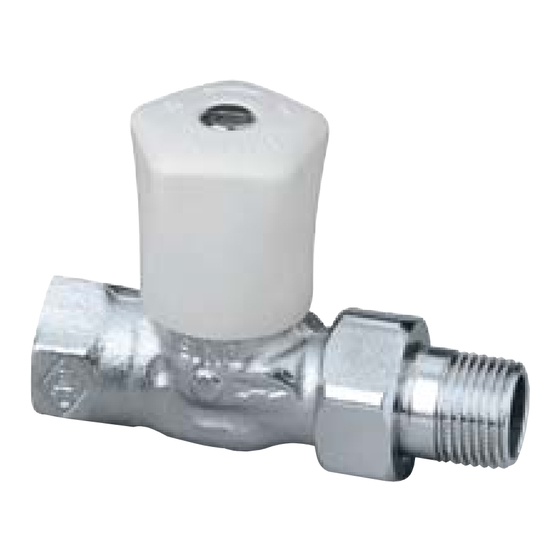

Application the HeiMeieR Mikrotherm manual radiator valve is used in warm water pump heating systems, gravity or low pressure steam systems. With models in angle and straight form from dn 10 to dn 32, the manual radiator valve can be used for a number of different purposes. - Page 3 Manual RadiatoR ValVes - MikrotherM Note the contents of the heat transfer medium should comply with Vdi guideline 2035 on damage and scale deposit formation in warm water heating systems. For industrial and long-distance energy systems, see the applicable codes VdtÜV 1466 and aGFW FW 510. Mineral oils in the heat transfer medium or lubricants containing mineral oils of any type lead to strong swelling and in most cases cause ePdM seals to fail.
- Page 4 Manual RadiatoR ValVes - MikrotherM Accessories Compression fitting Ø Pipe Article No for copper or precision steel pipes. Metal-to-metal joint. Brass nickel-plated. 10 (3/8”) 2201-12.351 Female thread connection Rp 3/8 – 15 (1/2”) 2201-15.351 15 (1/2”) 2201-16.351 Rp 3/4. support sleeves should be used 20 (3/4”)
-
Page 5: Technical Data
Manual RadiatoR ValVes - MikrotherM technical data Diagram DN 10 (3/8“) æ 1,17 1,45 angle / straight 0,18 0,35 0,65 0121-01 / 0122-01 æ 1,71 0,14 0,056 ¥ /æ 6000 5000 3000 2000 8 9 9 1000 20 30 200 300 500... - Page 6 Manual RadiatoR ValVes - MikrotherM Diagram DN 20 (3/4“) angle / straight 0121-03 / 0122-03 æ 3,1 0,54 1,12 1,98 æ 3,3 0,15 0,32 0,064 0,11 ¥ /æ 6000 5000 3000 2000 1000 20 30 200 300 500 1000 2000 ª...
- Page 7 Manual RadiatoR ValVes - MikrotherM Diagram DN 32 (11/4“) angle / straight 0121-05 / 0122-05 æ 8,9 æ 10,1 0,79 0,57 1,42 2,2 ¥ /æ 6000 5000 3000 2000 1000 20 30 200 300 500 1000 2000 3000 5000 ª “...
- Page 8 Manual RadiatoR ValVes - MikrotherM Dimensions Lengths according to DIN 3841, part 1 angle form straight form Ø D Ø D Spanner opening Rp3/8 10,1 G5/8 R3/8 Rp1/2 13,2 G3/4 R1/2 Rp3/4 14,5 R3/4 G1 1/4 R1 30,5 Rp 1 1/4 15 G1 1/2 R1 1/4 95 α...
