These easy instructions are intended to guide you through the replacement process.
Before you begin, place your notebook computer on a clean or covered surface to avoid
damage to the computer's case.*
Follow the ESD (Electrostatic Discharge) damage prevention instructions:
o Hold parts by the edges, away from exposed circuitry when possible.
o Do not walk around excessively as this promotes static build-up.
Before you begin, remove any jewelry you may be wearing to prevent scratches to the surface
of your notebook computer.*
The appearance of the electronic components shown in the illustrations may be different from
the components shipped. This slight difference does not affect the accuracy of these
instructions.
* Sony is not responsible for damage caused by incorrect handling of the notebook computer.

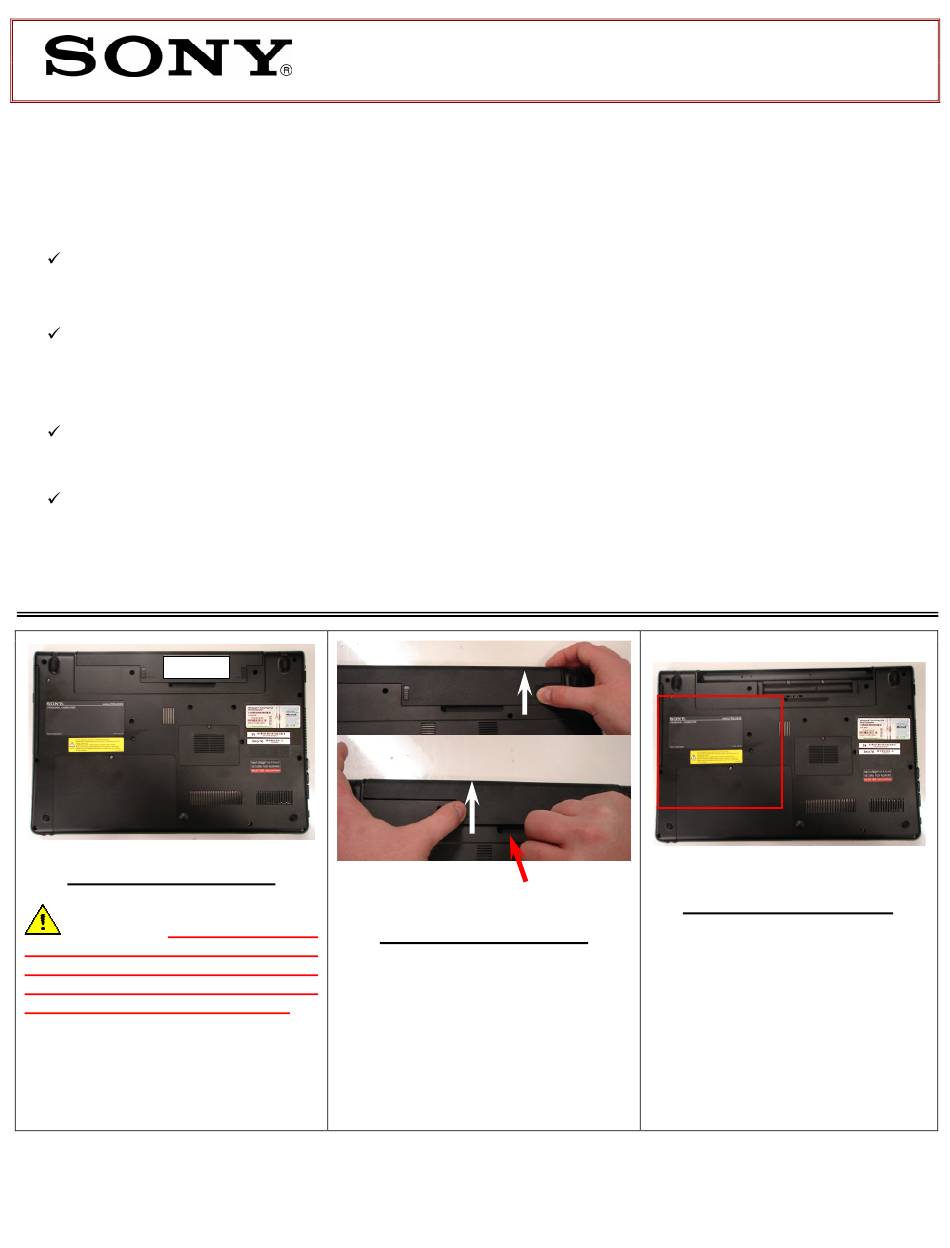

Battery
Prepare the Computer
CAUTION:
Make
computer is turned off, the lid is
closed, and the AC Adapter is
disconnected. Failure to do so can
result in damage to the computer.
Step 1. Place the computer upside
down on a protected surface with the
front edge facing you.
P/N 989201983
Rev. B

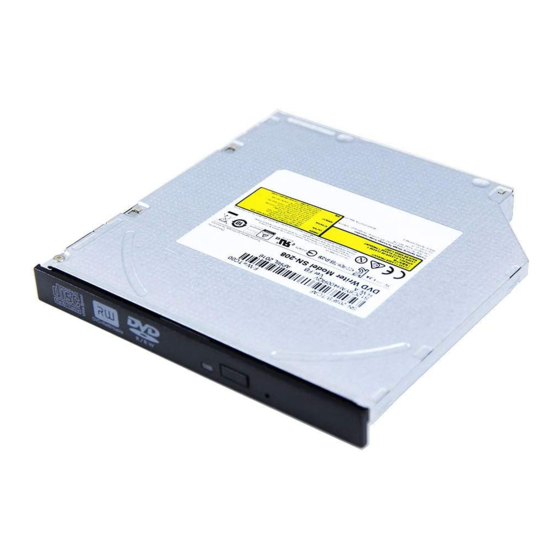

VPCEC Series Optical Disk Drive
IMPORTANT!
PLEASE READ BEFORE YOU START
sure
the
Battery Pack Removal
Step 2.
1) Slide the Left battery tab to the
unlock position.
2) With your Right thumb, slide the
Right battery tab to the Left and
hold.
3)
Lift the battery with your Left thumb
using the notch at the bottom to
remove.
Replacement Instructions
1.
2.
3.
Lift to remove
1/3
Optical Drive Removal
(Steps 3-6)
Step 3. The Optical Disk Drive (ODD)
is located on the Left side of the unit
as shown.
