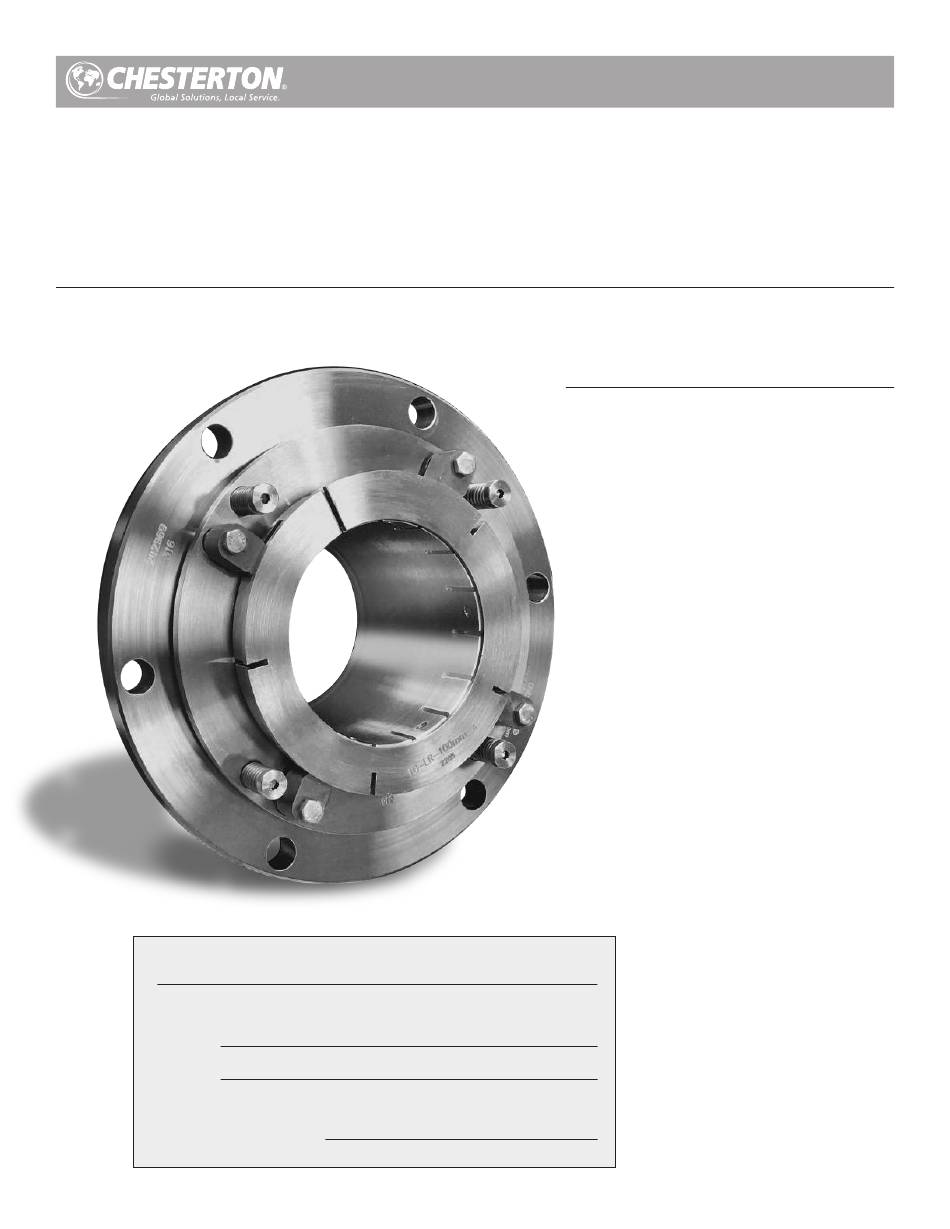

170L Slurry Cartridge
Single Seal-Wet Version
Designed to fit Weir
Installation, Operation and Rebuild Instruction
Seal Data Reference
(from Box Label)
ITEM #
SEAL
(example 170L 100mm SSC/TC)
INSTALLATION DATE
AH series pump
™
INSTALLATION, OPERATION and
MAINTENANCE INSTRUCTIONS

TABLE OF CONTENTS

Cautions ..............................................................2
1.0
2.0
Transport and Storage .........................................2
3.0
Description...........................................................2
3.1 Parts Identification .................................................................. 2
3.2 Operating Parameters .............................................................. 3
3.3 Intended Use ........................................................................... 3
3.4 Pump Frame Size Availability Data .......................................... 4
3.5 Clamped Gland Configuration ................................................ 5
3.6 Bolted Gland Configuration ..................................................... 5
4.0
Preparation for Installation ....................................6
4.1 Equipment ............................................................................... 6
4.2 Mechanical Seal ...................................................................... 7
5.0
Seal Installation ....................................................7
6.0
Start-up ................................................................................... 8
7.0
Shut Down .............................................................................. 8
8.0
Spare Parts ..........................................................8
9.0
Seal Maintenance and Repair ...............................8
9.1 Returning Seals for Repair....................................................... 8
9.2 Seal Maintenance ................................................................... 9
