Em Remote; Gas Detector; Co2 Monitor - AGS Merlin 2000S User Manual

Merlin 2000S
2.6

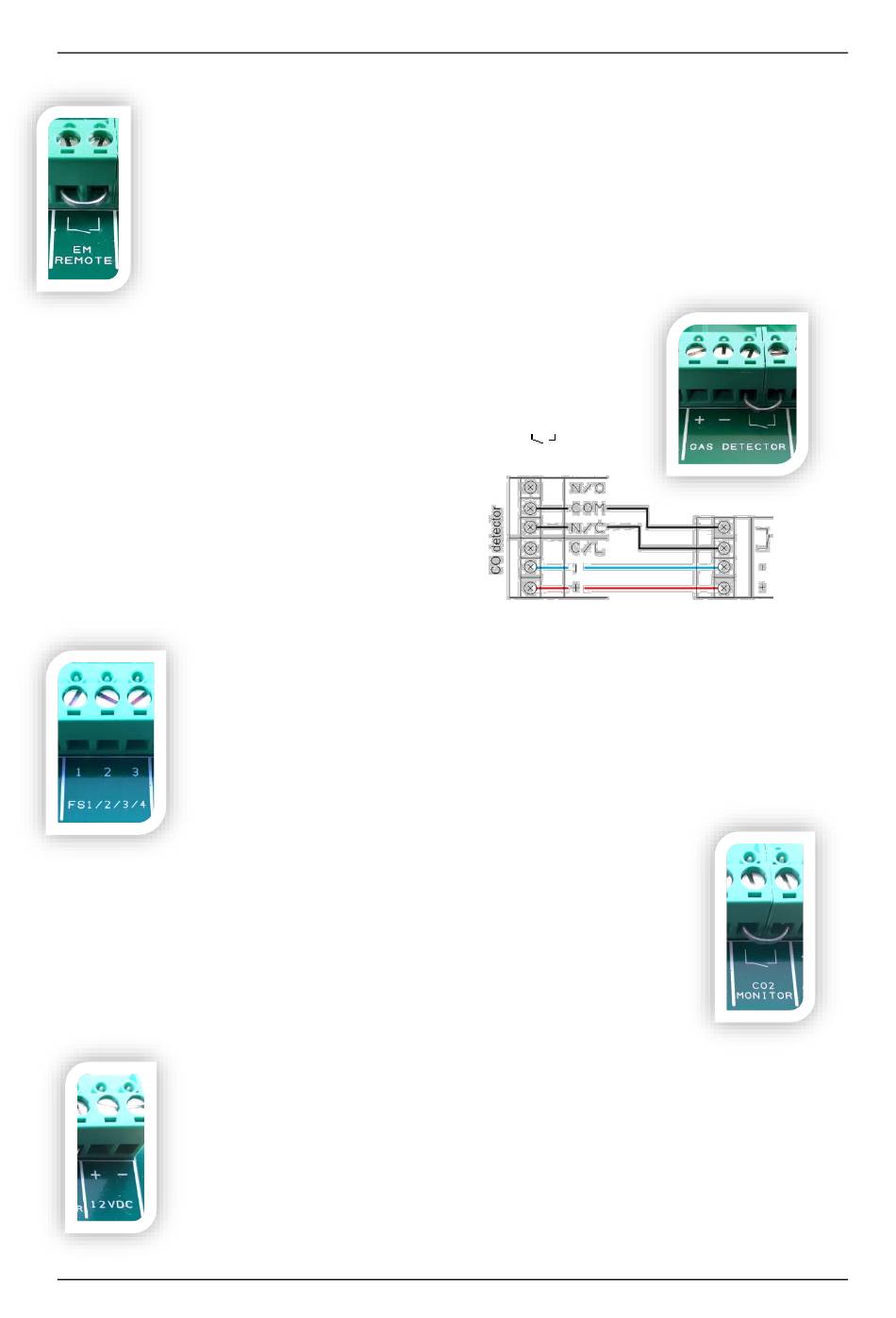

The terminal for remote emergency shut-off buttons is detailed on the circuit
board as [EM REMOTE].
These connections are linked out as a factory setting.
Remote emergency shut-off buttons should be volt free and wired to the Merlin
2000S using a plenum security cable, white, 18/2 (18AWG 2 conductor),
stranded, CMP or similar.
2.7

GAS DETECTOR

These connections can be wired to a Merlin gas detector (LPG,
natural gas or carbon monoxide) as shown.
If no detector is being used leave the link in between the "
Refer to your detector guide for more information.
2.8
This terminal switches when the key is turned on and off.
This can be linked to a fan switch (panel supplied separately) which can
provide power to the fans when the control panel is switched on.
2.9

CO2 Monitor

This terminal can be wired to CO2 monitor to shut off the system in the
event of CO2 being at alarm level.
If no CO2 monitor is connected, the panel will 'beep' and CO2 LED will
flash 3 times to indicate this terminal has been disabled.
2.10
This is a permanent 12v DC output when there is power at the panel and can
be used to create a relay switch with the BMS relay output.
This is normally used to power a PM2 current monitor. (Supplied separately)
Contact your supplier for more information.
Rev: 06 05-19

EM REMOTE

FS 1/2/3/4
12V DC
".
User Guide
5
