- Page 1 Voice Module AF-MUL User Manual Comat AG Bernstrasse 4 CH-3076 Worb Tel. +41 (0)31 838 55 77 www.comat.ch info@comat.ch Fax +41 (0)31 838 55 99 Ba Voice Module / 2.2004 E...
-
Page 2: Table Of Contents
Table of contents Introduction ............................3 1.1 Structure of Voice Module AF-MUL................... 3 1.2 Connection between Comat BoxX and AF-MUL ................ 4 Programming of AF-MUL........................5 2.1 Assigned functions ........................6 2.2 Recording via WAV input with a PC ................... 7 2.2.1 Configuration ........................ -
Page 3: Introduction
This functions allows an additional wide field of applications of remote alarm and status transmissions, as well as remote controlling of the Comat BoxX by phone (mobile phones) touch keys. The Voice Module AF-MUL has to be connected to the Comat BoxX with a special bridge connector AF-BC (Included with AF-MUL). -
Page 4: Connection Between Comat Boxx And Af-Mul

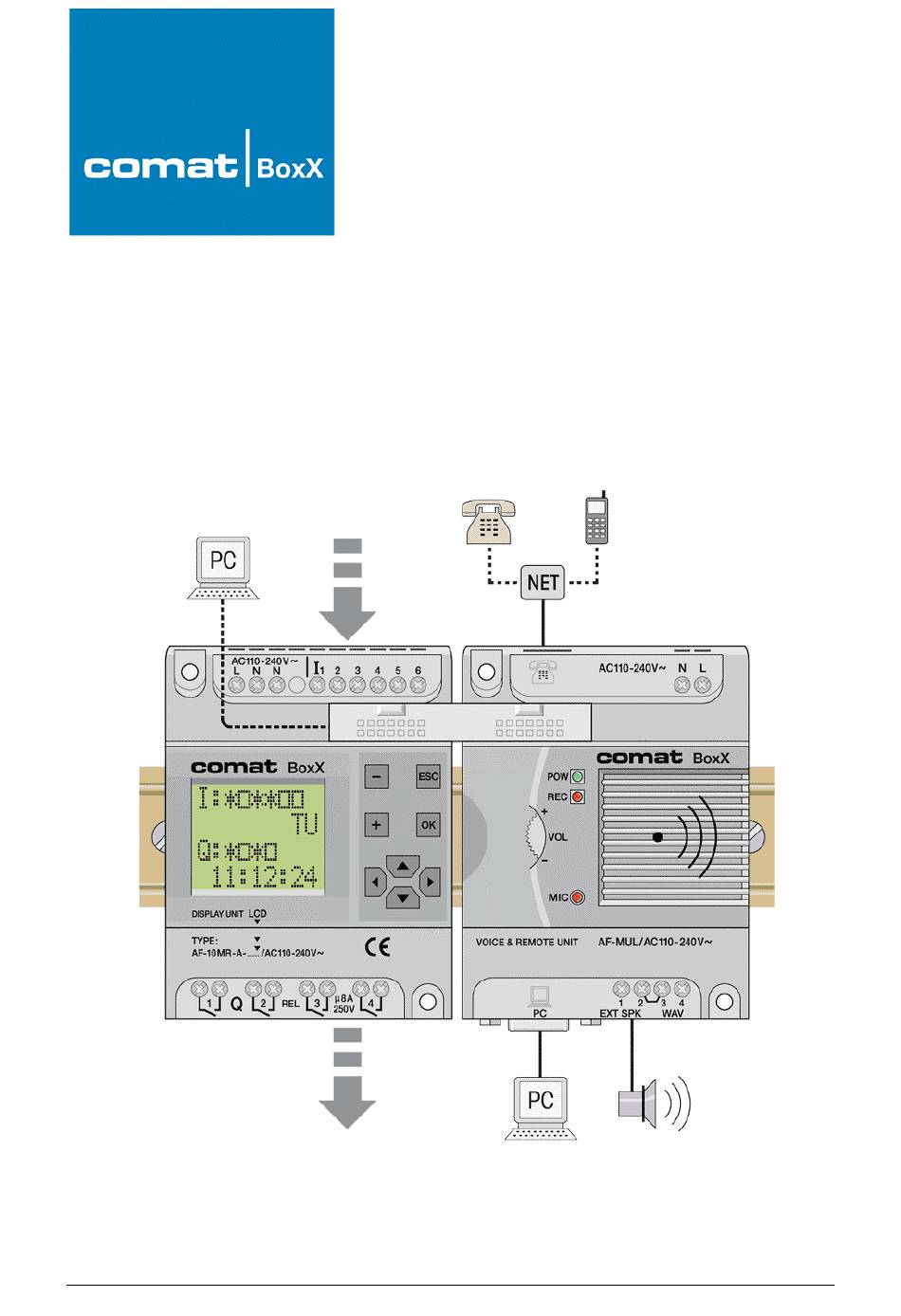

Connect Comat BoxX and AF-MUL with the special connection bridge AF-BC (enclosed with the AF-MUL voice module). [Pos. 1] Connect the power supply of AF-MUL and Comat BoxX first and plug the telephone line into the “TEL” socket (110-240VAC or 12-24VDC). [Pos2]... -
Page 5: Programming Of Af-Mul
0, the second recording as message number 1, the third recording as message number 2, and so on. Recording options: 1. Directly over the incorporated AF-MUL microphone (Pos. 6) 2. Over the WAV input (Pos. 10) a) Connecting a tape recorder b) Connecting a PC or a note book and recording with the PC or note book microphone c) Data transfer of a synthetic voice from the PC. -
Page 6: Assigned Functions
Please enter your control Please try again. code. Message No 4 ~ 98 Message/Status/Alarm/etc. according assignment. All further messages (4 ~ 98) can be assigned to any functions, status or alarm messages. Voice Module AF-MUL User Manual / 2.2004 E... -
Page 7: Recording Via Wav Input With A Pc
This software allows to enter a written Text message with a synthetic voice playback. 2.2.1 Configuration 1. Connect WAV cable (AF-WAV) to the WAV input of the AF-MUL (Pos. 10) 2. Connect the programming cable (AF-RS-232) between the AF-MUL (Pos. 9) and your PC 3. -
Page 8: Selection Of Max. Recording Time
Chapter 2 Programming of AF-MUL 2.2.2 Selection of max. recording time Select „Set Voice Module Type“. Fig. 1.5 Set Voice length type Fig. 1.6 Remark: Shorter recording time results in improved voice quality. Voice Module AF-MUL User Manual / 2.2004 E... -
Page 9: Online Recording
Chapter 2 Programming of AF-MUL 2.2.3 Online Recording Select „Online Record“ from the Option menu. Fig. 1.7 The following window opens: Platzhalt Fig. 1.8 Voice Module AF-MUL User Manual / 2.2004 E... -
Page 10: Set Ring Repetitions
Each message is replayed after transmission is completed. Exit with „Close“. 2.2.4 Set Ring repetitions This window allows to choose repetitions of calling rings before the AF-MUL answers a phone call. Fig. 1.9 Voice Module AF-MUL User Manual / 2.2004 E... -
Page 11: Password For Outgoing Calls
Fig. 1.11 If Yes is selected, the AF-MUL request the password before the message is played. If No is selected, the AF-MUL plays the message without asking for the correct password. Voice Module AF-MUL User Manual / 2.2004 E... -
Page 12: Acceptance Of Incoming Calls
Chapter 2 Programming of AF-MUL Fig. 1.12 2.2.6 Acceptance of incoming calls This feature allows to ignore incoming calls. Fig. 1.13 If No is selected, no incoming calls are accepted. Voice Module AF-MUL User Manual / 2.2004 E... - Page 13 Chapter 2 Programming of AF-MUL Fig. 1.14 Voice Module AF-MUL User Manual / 2.2004 E...
-
Page 14: Playing Of Messages
Q1 – Q8, HI, LO, M00 – M126, X. Output The option range of output is 01 – 98, and there are 98 voice sections in total. Application: This function is applicable where voice prompt is required. Voice Module AF-MUL User Manual / 2.2004 E... - Page 15 Fig. 1.16 Note: If two different playing blocks are called at the same time to play a message, the message of the Function Block with the higher block number will be played. Voice Module AF-MUL User Manual / 2.2004 E...
-
Page 16: Automatic Dial Function
Automatic dial function Chapter IV Automatic dial function The Comat BoxX can automatically dial via the AF-MUL Voice Module and transmit alarm alerts. Fig. 1.17 You need the TEL phone dialling and RS Set-/Reset Function Blocks to call other subscribers and to transmit messages or alerts. -
Page 17: Function Description Of Tel And Rs Function Blocks
When S is „1“, Q is ON („1“) and held ON, and will not be reset until Input R is set („1“). Switch characteristics RS relay is a simple trigger. The output value depends on the input status and the original output status. Voice Module AF-MUL User Manual / 2.2004 E... -
Page 18: Application Of The Automatic Dialing Function
Fig. 1.18 4.4 Hang up and open phone line • If the AF-MUL is called up by an external phone, it takes 1 minute for the voice module to hang up after the phone line has been cleared. • If the AF-MUL calls another subscriber which does not enter the correct password, the AF-MUL hangs up after 1 minute and clears the line. -
Page 19: Application Example
Monitoring of motion sensor. Transmit alarm message „Burglar in the house“ over the telephone line (External Phone number 031354876) Play „Burglar in the house“ over the incorporated AF-MUL speaker Switch ON of alarm siren Switch OFF alarm Switch ON alarm The following recordings/messages are required. - Page 20 If the entered password is correct, you will hear message 1. „The password is correct. Please enter your control code.” Use phone key1 to switch on the heater. At the same time message 4 will be played. „The heater is on.“ Voice Module AF-MUL User Manual / 2.2004 E...
- Page 21 The alarm is deactivated with phone key 4. Message 8 is played for your confirmation. „Alarm is off.“ If you call the AF-MUL phone number, the MUL is answering your call with message 0. „Thank you for your call. Please enter your password.”...
-
Page 22: Recording Of Messages Via The Incorporated Microphone
Fig. 1.20 6.2 Temporary installation of one switch for recording 1. Connect AF-MUL with Comat BoxX (AF-BC) and connect to power supply. 2. Connect to temporary switch (k1) between power supply input L and signal input I1 as shown in fig. -
Page 23: Deleting All Previous Recordings
6.3 Deleting all previous recordings Set Code 99 on Recording Function Block MR. Close switch k1 for one second and open switch again. The memory of AF-MUL is now empty (all previous messages are erased). 6.4 Recording Set code 0 on Recording Function Block. -
Page 24: Recording Example
Set the recording time to max. 4 minutes to receive a better voice quality. (Refer to chapter 2.2.2). To avoid feedback turn the volume switch on the AF-MUL to minimum volume. 6.5 Recording example 1. Close switch k1. The red lamp [Pos. 5, Fig. 1.1] is illuminated and indicates that recording is in progress. -
Page 25: Recording Of Voice Messages Via Wav Input With A Tape Recorder
6.6 Recording of voice messages via WAV input with a tape recorder The procedure is the same as described above. At the same time play switch on the tape recorder k1 should be depressed. Opening switch k1 ends the recording. Voice Module AF-MUL User Manual / 2.2004 E...
