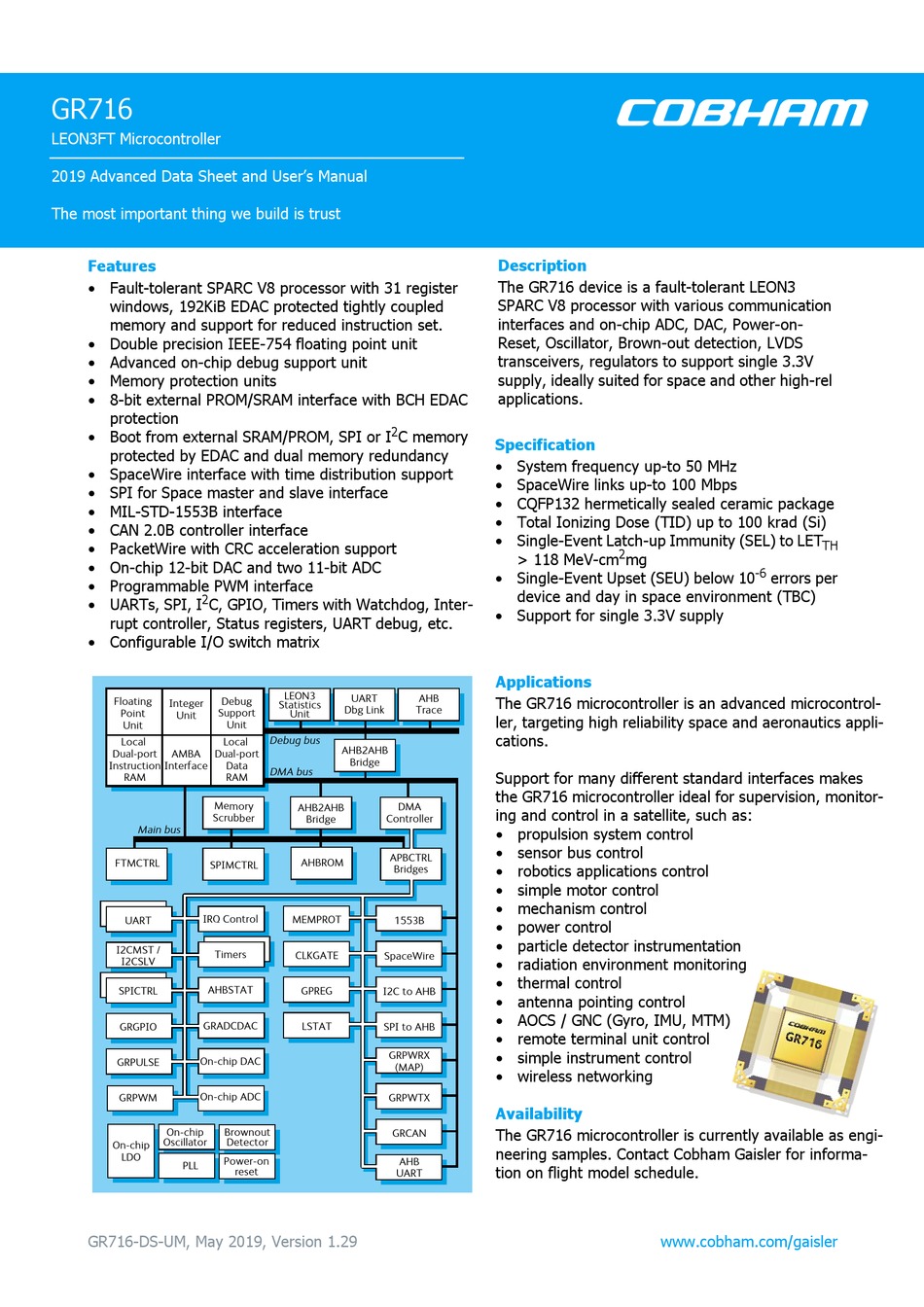

GR716

LEON3FT Microcontroller

2019 Advanced Data Sheet and User's Manual

The most important thing we build is trust

Features

• Fault-tolerant SPARC V8 processor with 31 register

windows, 192KiB EDAC protected tightly coupled

memory and support for reduced instruction set.

• Double precision IEEE-754 floating point unit

• Advanced on-chip debug support unit

• Memory protection units

• 8-bit external PROM/SRAM interface with BCH EDAC

protection

• Boot from external SRAM/PROM, SPI or I

protected by EDAC and dual memory redundancy

• SpaceWire interface with time distribution support

• SPI for Space master and slave interface

• MIL-STD-1553B interface

• CAN 2.0B controller interface

• PacketWire with CRC acceleration support

• On-chip 12-bit DAC and two 11-bit ADC

• Programmable PWM interface

2

• UARTs, SPI, I

C, GPIO, Timers with Watchdog, Inter-

rupt controller, Status registers, UART debug, etc.

• Configurable I/O switch matrix

Floating

Debug

Integer

Point

Support

Unit

Unit

Local

Local

Dual-port

AMBA

Dual-port

Instruction

Interface

RAM

Main bus

FTMCTRL

SPIMCTRL

IRQ Control

UART

I2CMST /

Timers

I2CSLV

AHBSTAT

SPICTRL

GRADCDAC

GRGPIO

On-chip DAC

GRPULSE

On-chip ADC

GRPWM

On-chip

Brownout

Oscillator

On-chip

LDO

Power-on

PLL

GR716-DS-UM, May 2019, Version 1.29

2

C memory

LEON3

UART

Statistics

Dbg Link

Unit

Unit

Debug bus

AHB2AHB

Bridge

Data

DMA bus

RAM

DMA

AHB2AHB

Controller

Bridge

APBCTRL

AHBROM

Bridges

MEMPROT

1553B

CLKGATE

SpaceWire

GPREG

I2C to AHB

LSTAT

SPI to AHB

GRPWRX

(MAP)

GRPWTX

GRCAN

Detector

AHB

reset

UART

Description

The GR716 device is a fault-tolerant LEON3

SPARC V8 processor with various communication

interfaces and on-chip ADC, DAC, Power-on-

Reset, Oscillator, Brown-out detection, LVDS

transceivers, regulators to support single 3.3V

supply, ideally suited for space and other high-rel

applications.

Specification

• System frequency up-to 50 MHz

• SpaceWire links up-to 100 Mbps

• CQFP132 hermetically sealed ceramic package

• Total Ionizing Dose (TID) up to 100 krad (Si)

• Single-Event Latch-up Immunity (SEL) to LET

> 118 MeV-cm

• Single-Event Upset (SEU) below 10

device and day in space environment (TBC)

• Support for single 3.3V supply

Applications

AHB

The GR716 microcontroller is an advanced microcontrol-

Trace

ler, targeting high reliability space and aeronautics appli-

cations.

Support for many different standard interfaces makes

the GR716 microcontroller ideal for supervision, monitor-

ing and control in a satellite, such as:

• propulsion system control

• sensor bus control

• robotics applications control

• simple motor control

• mechanism control

• power control

• particle detector instrumentation

• radiation environment monitoring

• thermal control

• antenna pointing control

• AOCS / GNC (Gyro, IMU, MTM)

• remote terminal unit control

• simple instrument control

• wireless networking

Availability

The GR716 microcontroller is currently available as engi-

neering samples. Contact Cobham Gaisler for informa-

tion on flight model schedule.

2

mg

-6

errors per

www.cobham.com/gaisler

TH
