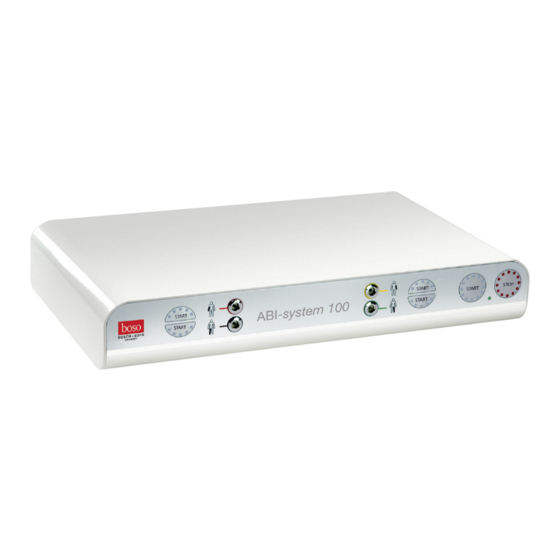

boso ABI-system 100
and
boso ABI-system 100 PWV
the powerful system for the early detection of PAD and
the determination of the pulse wave velocity
(optional)
0124

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABI-system 100 and is the answer not in the manual?

Questions and answers

Related Manuals for boso ABI-system 100

Summary of Contents for boso ABI-system 100

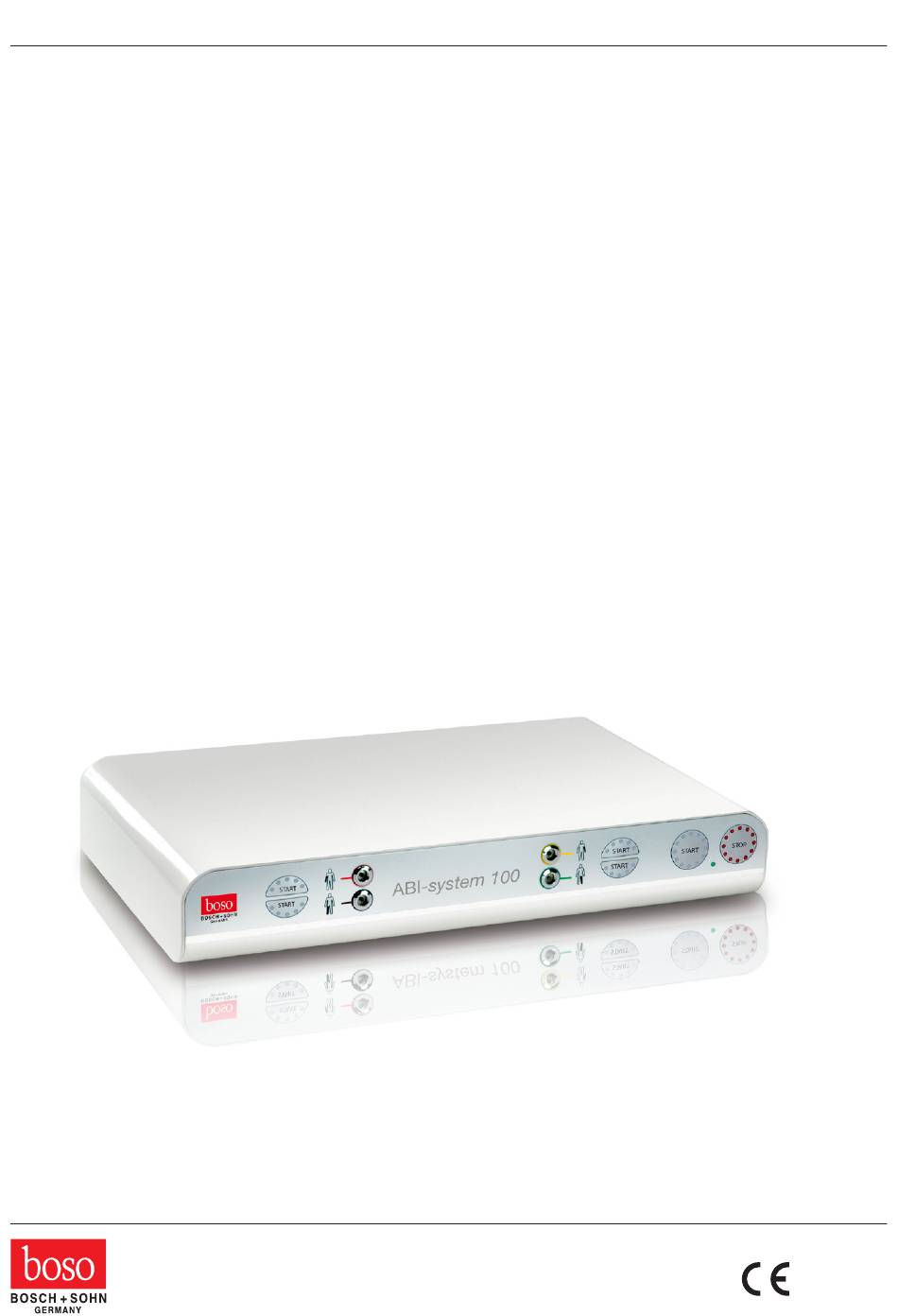

  • Page 1 User instructions boso ABI-system 100 boso ABI-system 100 PWV the powerful system for the early detection of PAD and the determination of the pulse wave velocity (optional) 0124...

  • Page 2: Table Of Contents

    Table of contents Contents of package ................3 Purpose ....................3 Contraindications ................... 3 Explanation of symbols and operating controls ........4 Explanation of icons ................5 Preliminary remarks ................6 Important information ................6 Ankle-Brachial Index (ABI) ............... 7 Pulse wave velocity (PWV) ..............

  • Page 3: Contents Of Package

    USB cable 3,0 m boso power supply unit art. no.: 410-7-154 Warranty certificate User instructions boso ABI-system 100 / boso ABI-system 100 PWV User instructions boso profil-manager XD 2. Purpose Non-invasive measurement of systolic and diastolic blood preasure on the following limbs: arm left, arm right, ankle left, ankle right. The theraby determinated Ankle Brachial Index (ABI) is utilised as an indication of the prevalence of peripheral arterial disease.

  • Page 4: Explanation Of Symbols And Operating Controls

    4. Explanation of symbols and operating controls Cuff connection Cuff connection Right arm Left arm (colour code red) (colour code yellow) Cuff connection Cuff connection Right leg Left leg (colour code black) (colour code green) START key Press this key to start a easurement manually. All 4 cuffs will be inflated.

  • Page 5: Explanation Of Icons

    5. Explanation of icons Read the user instructions Protection class II device Degree of protection against electric shock: type BF USB 2.0 connection The CE mark documents compliance with the Medical Devices 0124 Directive 93/42/EEC, Notified body: DEKRA, 0124 Manufacturer 2018 Year of manufacture Potential equalisation...

  • Page 6: Preliminary Remarks

    6. Preliminary remarks Your boso ABI-system 100 is an innovation on the market of blood pressure measurement technology for medical professionals. It provides a simple way of deter- mining the ankle-brachial index (ABI) and optional pulse wave velocity (PWV). The pressure variations (oscillations) caused by pulse waves and transmitted by the cuffs are stored and evaluated by microprocessors.

  • Page 7: Ankle-Brachial Index (Abi)

    could lead to injuries. • During measurement the flow of blood must not be stopped any longer than necessary (> 2 minutes). In case of a malfunction of the device, take off the cuffs from the arms and legs. • Too many measurements may lead to impairment of blood flow and thus to injries. •...

  • Page 8: Turning The Device On

    10. Turning the device on The mains connection socket is located at the rear of the device. Use only the boso power supply unit (order no. 410-7-154), as it produces a rectified output of the correct polarity. Other commercially available power supply units can cause damage to the electronic components, which will invalidate the warranty.
  • Page 9 The cuffs are colour-coded. Attach the individual cuffs to both upper arms and both ankles according to their colour coding (matching the symbols next to the air connection sockets on the apparatus). Attach the upper arm cuffs so that the lower edge of the cuff is about 2-3 cm above the elbow joint.

  • Page 10: Taking And Abi / Pwv Measurement

    Select "ABI + PWV measurement" in the registry "data" or press the START button on the unit. The ABI-system 100 starts the ABI measurement after a short calibration procedure (about 3 seconds). Upon completion of the ABI measurement and another break (about 10 seconds) the PWV measurement is started.
  • Page 11 Individual comments can be added for each ABI measurement via the "Remarks..." button. Templates can be defined and stored for later usage. Saving an ABI / PWV measurement (optional) To save an ABI measurement, select "Save measurement". The measurement must be repeated if the results are obviously wrong Blood pressure is a dynamic parameter and can be influenced by various effects: - movement before or during the measurement...

  • Page 12: Cleaning The Apparatus And Cuff

    14. Cleaning the apparatus and cuff Please use only a soft, dry cloth to clean the device. Small stains on the cuff can be carefully removed with a damp cloth. 15. Disinfecting the apparatus We recommend Antifect® Liquid disinfectant (Schülke&Mayr) to wipe the apparatus and cuffs for disinfection.

  • Page 13: Instructions For Disposal

    Maximum deviation of cuff ± 3 mmHg pressure measurement: (max. difference right/left ± 2 mmHg) Measurement range puls: 30 to 190 puls/min. Maximum deviation of ± 5 % puls measurement: Maximum deviation of ± 5 % PWV measurement: Operating conditions: Environmental temperature +10 to +40°C Relative humidity 30 to 85% Transport and storage conditions:...

  • Page 14: Calibration Checks - Testing Instructions

    After a short calibration process the apparatus will be in test mode. The current pressure will be displayed in the corresponding boso profil-manager XD fields. Perform the usual test for deviation of pressure display and pressure cir- cuit integrity (allow a set-up time of at least 30 seconds for the cuff).

  • Page 15: Emc Notes

    Guidance and manufacturer’s declaration – electromagnetic emissions The boso ABI-system 100 (PWV) is intended for use in the electromagnetic environment specified below. The customer of the user of the boso ABI-system 100 (PWV) should assure that it is used in such an environment.
  • Page 16 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the boso unit is used exceeds the applicable RF compliance level above, the boso unit should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessa- ry, such als re-orienting or relocating the boso ABI-system 100 (PWV).
  • Page 17 Your notes:...
  • Page 18 Your notes:...
  • Page 19 Your notes:...
  • Page 20 BOSCH + SOHN GmbH u. Co. KG Bahnhofstrasse 64 • 72417 Jungingen • Germany Phone: +49 (0) 74 77 / 92 75-0 • Fax: +49 (0) 74 77 / 10 21 www.boso.de • mail: zentrale@boso.de...

This manual is also suitable for:

Abi-system 100 pwv
