Redback Networks SmartEdge 400 Hardware Manual

Hide thumbs Also See for SmartEdge 400:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Hardware Manual
Mounting the Chassis
Install the Cable Management Brackets
The SmartEdge 400 router is shipped with a pair of cable management brackets; the bracket for the front
of the chassis is approximately 1.0 in (2.54 cm) longer than the bracket for the rear of the chassis. When
installed at the front of the chassis, a single bracket accommodates both fiber-optic and nonfiber cables.
To install the bracket for the front of the chassis, align it with the three screw holes at the right side of the
chassis and secure it with three 10-32 x 0.25-inch screws provided with the bracket; tighten each screw
using 15.0 inch-lbs torque (1.7 Newton-meters) maximum; see Figure 4-4.
The cable management bracket for the rear of the chassis routes the DC power cables and the DS-3 and E3
cables attached to the BNC connectors; you can install the bracket on either side of the chassis.
To install the bracket, align it with the three screw holes at the right or left side of the rear of the chassis
and secure it with three 10-32 x 0.25-inch screws provided with the bracket; tighten each screw using
15.0 inch-lbs torque (1.7 Newton-meters) maximum; see Figure 4-4, which illustrates the installation on
the right side of the chassis.

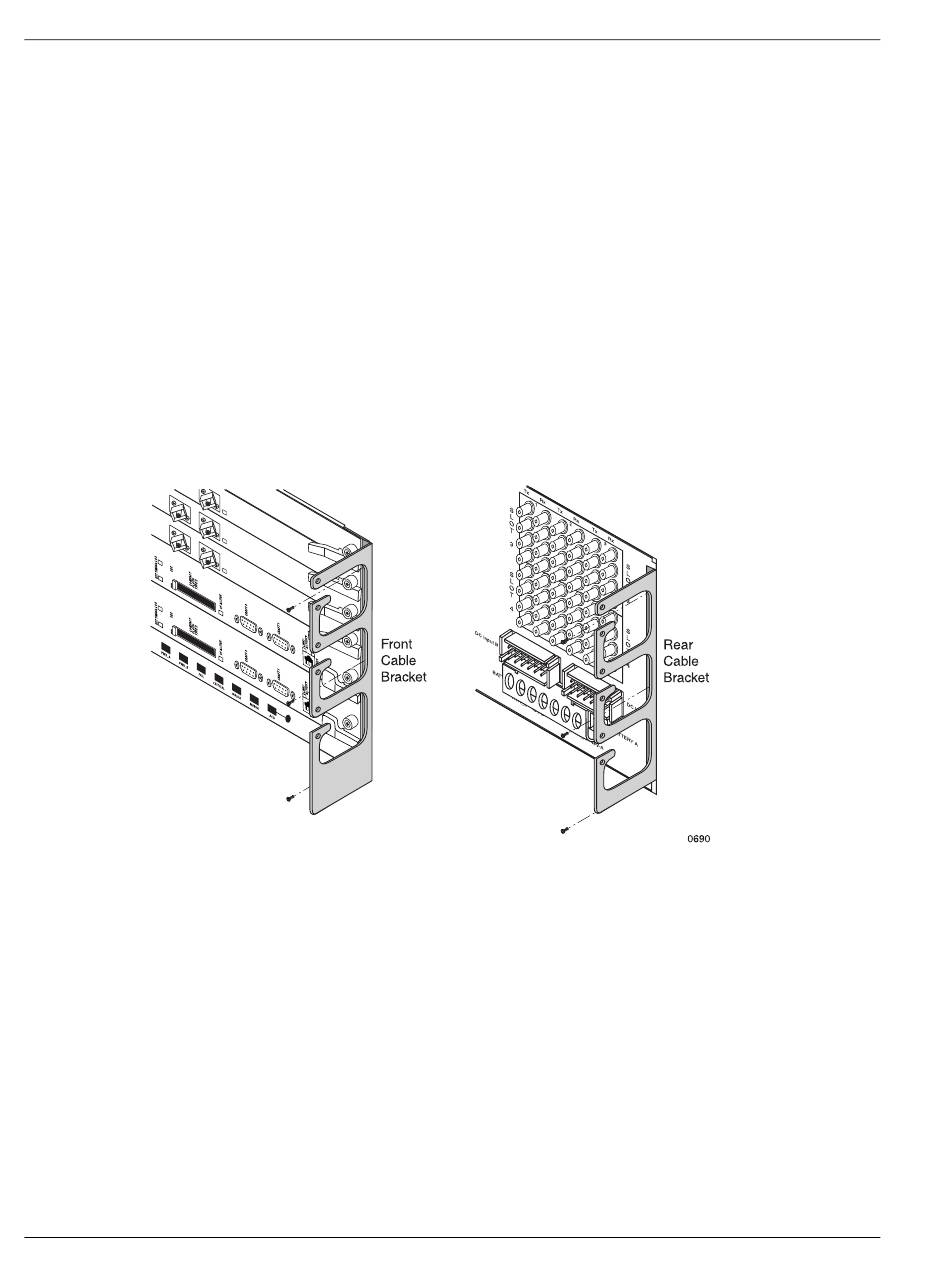

Figure 4-4 Installing the Cable Management Brackets
4-8
SmartEdge 400 Router Hardware Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartEdge 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redback Networks SmartEdge 400

Summary of Contents for Redback Networks SmartEdge 400

  • Page 1 Install the Cable Management Brackets The SmartEdge 400 router is shipped with a pair of cable management brackets; the bracket for the front of the chassis is approximately 1.0 in (2.54 cm) longer than the bracket for the rear of the chassis. When installed at the front of the chassis, a single bracket accommodates both fiber-optic and nonfiber cables.
  • Page 2 DC power sources are not available. An AC power supply connects to the SmartEdge 400 chassis with a pair of AC power tray jumper cables using connectors on the rear of the AC power tray.
  • Page 3 12-24 or equivalent screws. Perform the following steps; see Figure 4-7: 1. Position the AC power tray directly below the SmartEdge 400 chassis so that the screw holes in the AC power tray mounting brackets are aligned with the screw holes in the rack just below the chassis.

  • Page 4: Connecting The Power Cables

    Connect the Ground Cables and C-Bracket The back panels of the SmartEdge 400 chassis and the AC power tray each have a pair of 10-32 studs, which are used to attach a ground cable to each unit; if the AC power tray is installed, the studs are also used to attach a C-bracket that provides additional stability for the AC power tray in the event of an earthquake.
  • Page 5 Connect the DC Power Sources The SmartEdge 400 chassis has four #8 terminal screws on the rear of the chassis for A- and B-side DC power cables for full power redundancy. The A- and B-side power cables are connected to separate A- and B-side connectors on the external fuse panel or circuit breaker panel.
  • Page 6 Connecting the Power Cables The following DC power source warnings and cautions apply when connecting DC power sources: Warning Risk of electrical shock. The system uses DC power sources, which can cause severe injury. To reduce the risk, the DC power sources must be installed only in restricted access areas (dedicated equipment rooms, equipment closets, or the like) in accordance with Articles 110-17, 110-26, and 110-27 of the National Electric Code, ANSI/NFPA 70.
  • Page 7 4. If you are connecting dual power sources, repeat steps 2 and 3 to connect the power cables to the terminal screws labeled “RTN_B” and “48V-B”. 5. If you removed the plastic safety cover, install it over the DC terminal block; see Figure 4-10. Figure 4-9 DC Power Connections 4-14 SmartEdge 400 Router Hardware Guide...
  • Page 8 Figure 4-10 Installing the Plastic Safety Cover Connect the AC Power Sources To connect the SmartEdge 400 router to AC power sources, perform the following steps; see Figure 4-11: 1. Connect the AC power tray to the chassis: a. Remove the DC jumper connector blocks from the connectors labeled “DC Input A” and “DC Input B”.
  • Page 9 Install a Mass-Storage Device Note the following guidelines for the installation of SmartEdge 400 cards: • Card slots in the SmartEdge 400 chassis are numbered sequentially from top-to-bottom; see Figure 4-12. • Slots 5 and 6 are reserved for controller cards only.
  • Page 10 Completing the Installation for the Cards Figure 4-12 Card Slots in the SmartEdge 400 Chassis Table 4-2 summarizes the slot assignments for the SmartEdge 400 cards. Table 4-2 Slot Assignments for SmartEdge 400 Cards Card Slots Available Controller 5, 6...
  • Page 11 If the locking mechanism is a pair of latching tabs, they will snap into place. • If the locking mechanism is a wire handle, push it down until it snaps into place. Figure 4-13 Installing a GBIC Transceiver 4-18 SmartEdge 400 Router Hardware Guide...
  • Page 12 Completing the Installation for the Cards Install an SFP Transceiver Perform the following steps to install an SFP transceiver: 1. Put on an antistatic wrist strap (one is shipped with the system), and attach it to an appropriate grounded surface. Note Do not attach the wrist strap to a painted surface;...
  • Page 13 3. Slowly insert the device in the slot. If the device does not engage the connectors with approximately 0.5 inches (1.27 cm) of the device outside the slot, do not continue. Remove the device and repeat this step. Figure 4-15 Installing a Mass-Storage Device 4-20 SmartEdge 400 Router Hardware Guide...

  • Page 14: Connecting And Routing The Cables

    Local or Remote Console Terminal Management Workstation A management workstation is connected to the SmartEdge 400 router using the Ethernet port on the front of a controller card. This type of connection provides access to the SmartEdge OS command-line interface (CLI) after you have configured the port.
  • Page 15 Local or Remote Console Terminal A local or remote console terminal is connected to the SmartEdge 400 router using the Craft port on the front of a controller card. This type of connection provides access to the SmartEdge OS CLI, either directly or through a terminal server.
  • Page 16 System management cables provide additional inputs and outputs that can enhance the operation of the system. None of these connections are required for a SmartEdge 400 router to function correctly. See Figure 4-18 for the location of the connectors for these cables on the rear of the chassis. The external timing cable is the only system management cable supported in this release.

  • Page 17: Connections For Traffic Card Cables

    Ethernet 10/100 Ethernet 1 to 6 FX-100 Ethernet – Gigabit Ethernet (any version) 1, 3 1. Support for the low-density version of a traffic card is dependent on the release of the operating system. 4-24 SmartEdge 400 Router Hardware Guide...

  • Page 18: Connect And Route The Cables At The Front Of The Chassis

    Cable connections are made with standard cables. Appendix A, “Cables and Pin Assignments,” describes the standard SmartEdge 400 cables and pin assignments. Laser Risk of severe damage to your eyes. All versions of the optical cards are Class 1 products, which use lasers to convert electrical signals to optical signals that can damage your eyes.
  • Page 19 Cable connections for the DS-3 and E3 ports are made with standard cables. Appendix A, “Cables and Pin Assignments,” describes the standard SmartEdge 400 cables and pin assignments. Slots and ports for the DS-3 and E3 cards are labeled on the rear panel of the chassis. To connect and route the cables at the rear of the chassis, perform the following steps: 1.
  • Page 20 Attach the DB-9 ends of the external timing cables to the primary and secondary connectors, labeled “Primary” and “Secondary”, at the left rear of the SmartEdge 400 chassis; tie the cables to the rack. Note Support for the status and control port is dependent on the release of the operating system.

  • Page 21: Connect The Equipment And Network Ends Of The Cables

    For an AC power source, insert the AC power cords into the AC power plugs at the rear of the chassis and into the building outlets. You are now ready to power on the system and check the operating status; continue with Chapter 5, “Determining Operating Status.” 4-28 SmartEdge 400 Router Hardware Guide...

  • Page 22: Determining Operating Status

    C h a p t e r 5 Determining Operating Status ® This chapter describes the SmartEdge 400 chassis and card LEDs used to determine the status of the system. It also describes how to troubleshoot hardware problems. These topics include: •...

  • Page 23: Powering On The System

    Display Results from Power-On Diagnostics Determine System Status with LEDs The status of the SmartEdge 400 router is indicated by the LEDs that are located on the front of the alarm card; see Figure 5-1. Figure 5-1 SmartEdge 400 Status LEDs...
  • Page 24 Determining Hardware Status Table 5-1 lists the LEDs that indicate the fan tray and system power status. Table 5-1 SmartEdge 400 Status LEDs Label Activity Color Description PWR A Green The A-side –48 VDC power source is present. None The A-side –48 VDC power source is absent or outside the under and over voltage limits.

  • Page 25: Determine Card Status With Leds

    2. If more than one source initiates the ACO action, every source that initiated the action must clear the action before the ACO LED is unlit. Determine Card Status with LEDs Each SmartEdge 400 controller and traffic card has equipment (card) and facility (port) LEDs to indicate current status of the card and its ports. Additionally, the controller cards have synchronization LEDs to indicate the status of any externally configured timing sources.
  • Page 26 Determining Hardware Status Controller Cards A controller card has the following LEDs; see Figure 5-3: • Four equipment LEDs—Indicate current card status • One synchronization and two external timing LEDs—Indicate the status of any connected external timing source • Two facility LEDs—Indicate status of the Ethernet port Table 5-4 lists the equipment LEDs, which indicate current status of the card.
  • Page 27 The Ethernet management link is receiving or transmitting frames. None The Ethernet management link is down. SPEED Yellow The Ethernet management link is operating at 100 Mbps. None The Ethernet management link is operating at 10 Mbps. SmartEdge 400 Router Hardware Guide...
  • Page 28 Determining Hardware Status Table 5-6 lists the synchronization and external timing LEDs, which indicate the status of any connected external timing source. Table 5-6 Synchronization and External Timing LEDs on Controller Cards Label Activity Color Description SYNC Green At least one of the selected synchronization references is in good condition and is providing reference.
