Cornelius FLAVORFUSION 629097219 Installation Instructions

INSTALLATION INSTRUCTIONS

F F I
LAVOR USION CEMAKER
!
WARNING:
Disconnect power to the unit before installing adaptor following all lock out / tag out procedures established by the
user. Verify all of the power is off to the unit before performing any work. Failure to comply could result in serious
injury, death or damage to the equipment.
!
WARNING:
All of the attachment screws and plates must be installed as directed in this manual. Failure to comply could result in
serious injury, death or damage to the equipment.

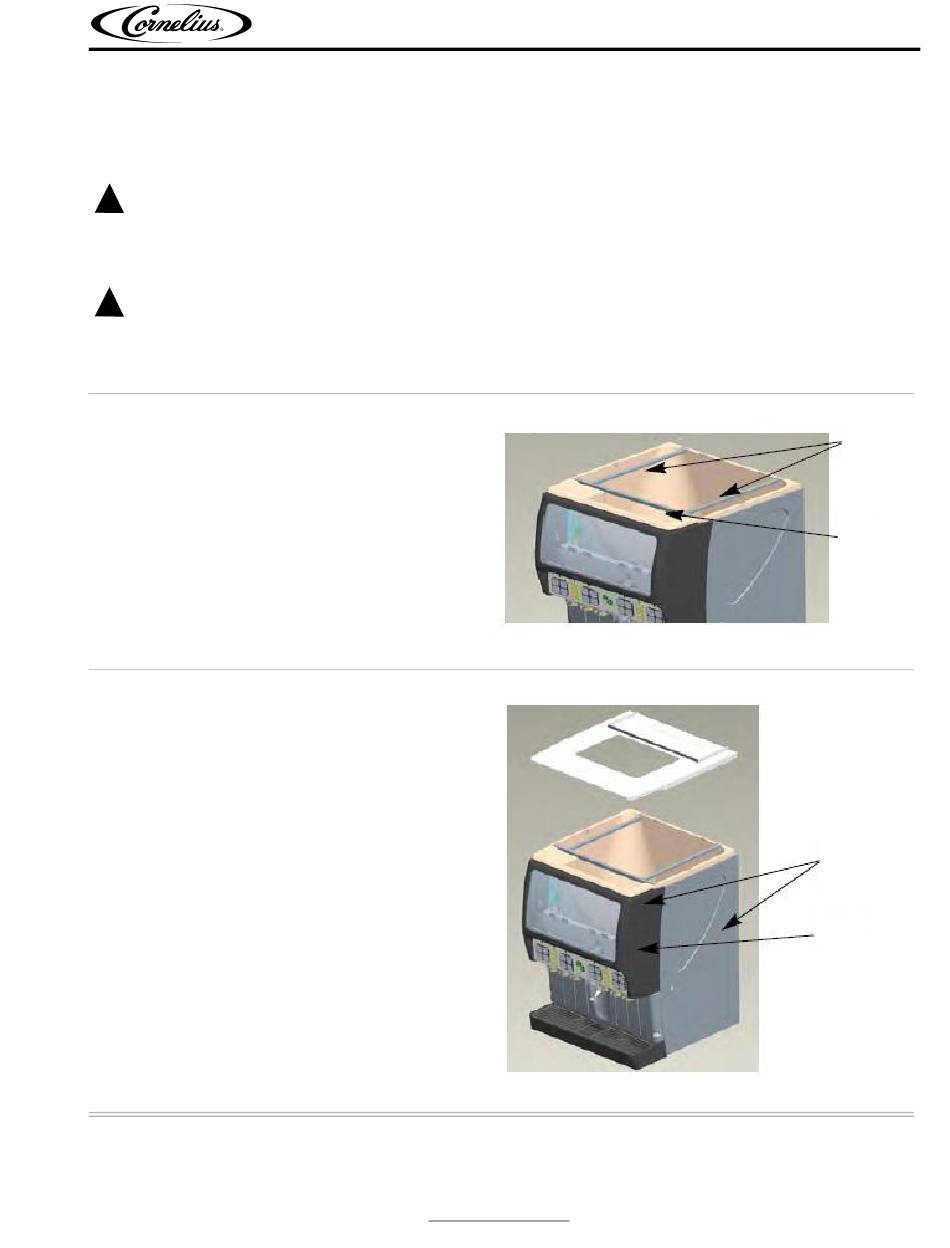

1. Place bar into first set of pockets inside the
hopper.
2. Place ice maker rail supports into the pock-
ets in the ice bin as shown in Figure 1.
3. Hook cross braces over top of bar and
place into inner pockets inside the hopper
(see Figure 2).
4. Place Icemaker Adaptor Kit on top of dis-
penser.
NOTE: Picture may not match your
adaptor model.
Revision Date: March 27, 2014
© 2013-2014, Cornelius Inc.
FlavorFusion Icemaker Adaptor Kit Installation Instructions
A K
DAPTOR IT FOR
www.cornelius.com
- 1 -
P/N 629097219
Figure 1
Figure 2
Publication Number: 629097219INS
Cross
Braces
Bar
Cross
Braces
Bar
Revision: B
