Simplicity
Crathco
Safety Information ...................................................2
Specifications ............................................................3
Installation and Set-Up ............................................4
Product Preparation & Use ......................................6
Thank you for purchasing this quality cold beverage dispenser. For your safety and the safety of
others, read all warnings and the operator's manual before installing or using the product. Properly
instruct all operators. Keep training records. For future reference, record serial number here:
Grindmaster-Cecilware
4003 Collins Lane, Louisville, KY 40245 USA
Phone: 502.425.4776 Toll Free: 800.695.4500
Fax: 502.425.4664
Web: gmcw.com Email: info@gmcw.com
©2016 Grindmaster-Cecilware
Printed in Thailand
™
Cold Beverage Dispensers
®
for Panera Bread
Table of Contents
Operator Manual
Bubbler CS-3L
Daily Cleaning...........................................................7
Maintenance .............................................................9
Troubleshooting .....................................................10
Basic Machine Parts ...............................................13
Spacer Bracket Installation ....................................15
Grindmaster-Cecilware provides the industry's
BEST warranty. Visit gmcw.com for warranty
terms and conditions.
®
Model CS-3L-16_PANERA
Part # 1101-016
0816 Form # CC-331-01
Part # 390-00092
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crathco Simplicity Bubbler CS-3L
Summary of Contents for Crathco Simplicity Bubbler CS-3L
-
Page 1: Table Of Contents
Operator Manual Simplicity Bubbler CS-3L ™ Crathco Cold Beverage Dispensers ® for Panera Bread ® Model CS-3L-16_PANERA Part # 1101-016 Table of Contents Safety Information ...........2 Daily Cleaning............7 Specifications ............3 Maintenance .............9 Installation and Set-Up ..........4 Troubleshooting .............10 Installation - Agitator Function (Model CS-3L-XX).5 Basic Machine Parts ..........13... -
Page 2: Safety Information
Observe machine voltage configuration. Do not apply improper voltage to machine or damage to machine will occur. Do not use extension cord. Do not operate the appliance below 1.7°C (35°F) or above 40°C (104°F). Crathco ® Simplicity CS-3L Panera Bubbler... -
Page 3: Specifications
115V / 60 Hz / 8.5A C-UL US, NSF agitator model. CS-3L-16-S (3) 4.75 gallon (18L) bowls, 31.0” x 20.4” x 17.7” 115V / 60 Hz / 8.5A C-UL US, NSF spray model. (Height includes 4” legs) Simplicity CS-3L Panera Bubbler Crathco ®... -
Page 4: Installation And Set-Up
2. Children should be supervised to ensure that they do not play with the appliance. 3. This appliance is only to be installed in locations where it can be overseen by trained personnel. Crathco ® Simplicity CS-3L Panera Bubbler... -
Page 5: Installation - Agitator Function (Model Cs-3L
Place drip tray cover on drip tray. Install drip tray. Install handle. Flip out support bracket for drip tray. Turn power “on”. Mix product in clean container. Install bowl cover. Fill bowl with product. Simplicity CS-3L Panera Bubbler Crathco ®... -
Page 6: Product Preparation & Use
3. Install lid and turn on main power switch. 4. 25~30° C (77~86° F) ambient temperature is suitable for the operation. 5. This machine maintains beverage temperature of 1~5° C (34~41° F). 6. The dispenser is not for dispensing potentially hazardous beverage. Crathco ® Simplicity CS-3L Panera Bubbler... - Page 7 Simplicity CS-3L Panera Bubbler Crathco ®...
- Page 8 BOWL LIDS IN COOL OR LUKEWARM WATER TO AVOID LEAKS DUE TO SEALED SURFACE BEING DAMAGED. NOTICE: The appliance is not suitable for installation in an area where a water jet could be used. The appliance must not be cleaned by water jet. Crathco ® Simplicity CS-3L Panera Bubbler...
-
Page 9: Daily Cleaning
3. The appliance is suitable for liquid juice concentrate and beverage mixing powder. 4. Access to the service area is restricted to persons having knowledge and practical experience of the appliance, in particular as far as safety and hygiene are concerned. Simplicity CS-3L Panera Bubbler Crathco ®... -
Page 10: Troubleshooting
.75mm surface is (0.03 inch) worn. thick. Impeller and/or axle worn? Replace worn parts. Pump motor magnet needs adjustment? See routine maintenance. ( Call for service. Impeller installed correctly? Crathco ® Simplicity CS-3L Panera Bubbler... - Page 11 Clean condenser or ( call for service. Impeller does not spin. Faulty No product agitation? Operator Manual Simplicity ™ Bubbler CS-3L Crathco ® Cold Beverage Dispensers pump motor? See previous page. ( Call for service. Model CS-3L-16 (cULus certification applies only to (CE declaration applies only to United States and Canada models.)
- Page 12 Prior authorization must be obtained from Grindmaster-Cecilware for all warranty claims. Grindmaster-Cecilware provides the industry’s BEST warranty. Visit our website at GMCW.com for warranty terms and conditions. Crathco ® Simplicity CS-3L Panera Bubbler...
-
Page 13: Basic Machine Parts

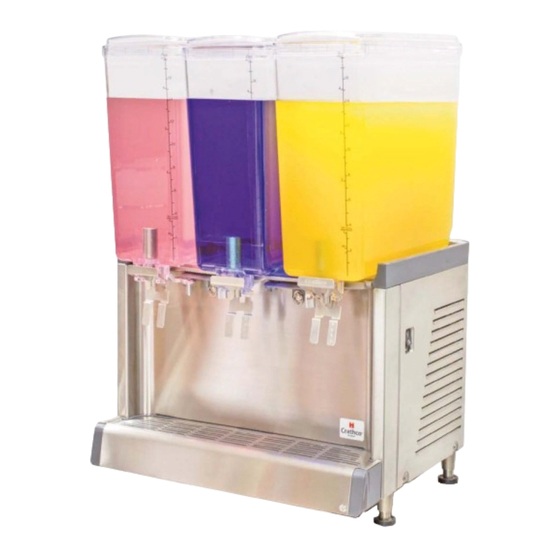

Basic Machine Parts (CS-3L) Simplicity CS-3L Panera Bubbler Crathco ®... - Page 14 Gasket, Bowl 18L, Tall 290-00089 Bowl 18 Liters, Tall (4.8 Gallon) 231-00404 Valve, Dispense with Seal 99464 Bowl Cover, 18 Liters, Tall 210-00495 Valve, Dispense 99463 Seal, Valve 99380 Push Hand (Cup Activated) 200-00063 Crathco ® Simplicity CS-3L Panera Bubbler...
-
Page 15: Spacer Bracket Installation
(Recommended attaching spacer shown. during cleaning of unit during closing or during opening). Total attachment time is 15 minutes. Simplicity CS-3L Panera Bubbler Crathco ®... - Page 16 Spacer Bracket Installation (continued) Orient bracket to base as before, Using a flat head screwdriver, remove rear thumb screw on the same using a Phillips head screwdriver, corner as the side panel screw that was removed. (Attach bracket at one remove rear side panel screw from corner at a tome so that the other corner screw holds side and rear either left or right side panel.
