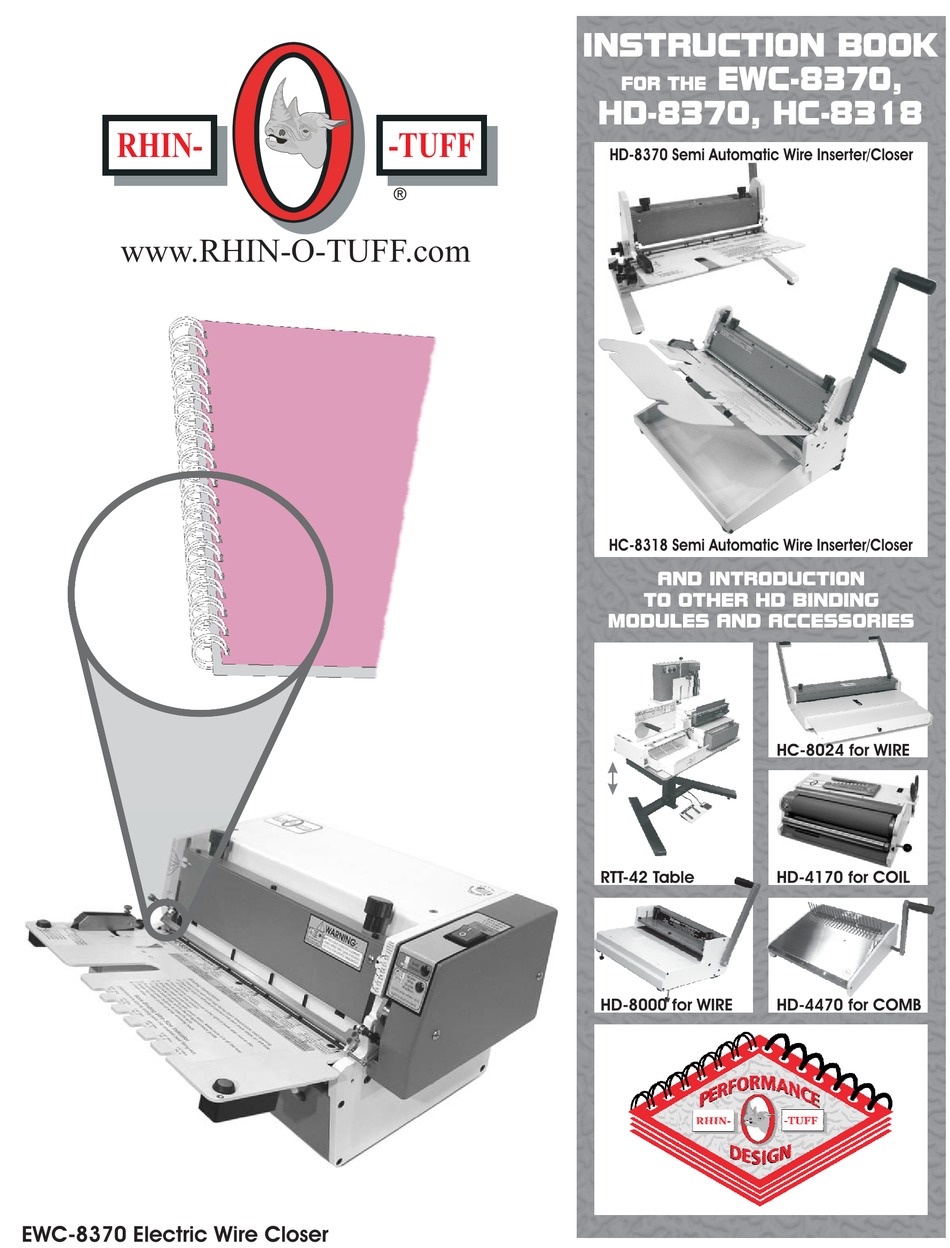

RHIN-
www.RHIN-O-TUFF.com
EWC-8370 Electric Wire Closer
-TUFF
}
INSTRUCTION BOOK
EWC-8370,
FOR THE
HD-8370, HC-8318
HD-8370 Semi Automatic Wire Inserter/Closer
HC-8318 Semi Automatic Wire Inserter/Closer
AND INTRODUCTION
TO OTHER HD BINDING
MODULES AND ACCESSORIES
RTT-42 Table
HD-8000 for WIRE
HC-8024 for WIRE
HD-4170 for COIL
HD-4470 for COMB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rhin-O-Tuff EWC-8370
Summary of Contents for Rhin-O-Tuff EWC-8370
- Page 1 RHIN- -TUFF HD-8370 Semi Automatic Wire Inserter/Closer www.RHIN-O-TUFF.com HC-8318 Semi Automatic Wire Inserter/Closer AND INTRODUCTION TO OTHER HD BINDING MODULES AND ACCESSORIES HC-8024 for WIRE RTT-42 Table HD-4170 for COIL HD-8000 for WIRE HD-4470 for COMB EWC-8370 Electric Wire Closer...
- Page 2 1 / 2” 9/16” 5/8” 3/4” 7/8” 1” 1-1/4” Online Machine Product Registration And Technical Support. Visit us at: www.RHIN-O-TUFF.com THE ULTIMATE IN: Quality Punching & Binding Equipment At Affordable Prices Performance Design 2350 E. Braniff Boise, Idaho 83716 USA 1-800-390-5782 PDI@PDIBIND.COM...
- Page 3 The EWC-8370: Our reliable EZ-Step inserter and closer is now available in a safe, button operated, electric machine, the EWC-8370. Adjustable for varying sizes of 3-1 pitch 1/4" to 9/16" (6mm-14mm), the EWC-8370 can become a module and be mounted to your OD or HD vertical punch (Except the HD- 7500) with an optional kit.
- Page 4 RTT-42 Rhin-O-Tuff Table Our new electric binding equipment table adjusts from 25” to 44” (63cm-112cm) in seconds for sitting or standing while punching and binding. The table is 42” (107cm) wide, 23”...
-
Page 5: Table Of Contents
Warranty Registration Card Information: Please fill this out immediately and mail in. Product registration is important to establish trouble free warranty repair of any of your Rhin-O-Tuff equipment. Please fill out and mail in the card provided with your machine or register on-line at www.RHIN-O-TUFF.com... -
Page 6: Important Safety Notice
When this manual refers to the Upper Position of the closing bar, the EWC-8370 is in the normal up position at rest. Then referring to pulling the handle or closing wire, the EWC-8370 is operated with the two green buttons, one on each side of the table. -
Page 7: Installation
Never attempt to move the EWC-8370 with one person! Always move your EWC-8370 with two people, one on each end. To mount your EWC-8370 to an OD or HD vertical punch (except HD-7500) will require an optional mounting kit. Contact your dealer for the kit that fits your punch model and follow the instructions inside the kit. -
Page 8: New Setup Guide, Step 1 Thought Step 10
The size of hole for all 3 machines should be 11/64” (.172) round (or larger) or 5/32” (.156) square. The Margin or Backspace for is .168” for round and .179” for square holes. 4) Setup Guide, STEP 1 through STEP 10; The HD-8370 has a setup guide intended to make binding easy for new and experienced users. -
Page 9: Step 1, Determine The Correct Wire Size For A Book
STEP 2A & 2B RED, Adjust Closing Bar: See Figure 2, next page. With the closing handle in the BACK position (EWC-8370 in its normal up position), adjust the Closing Bar by turning BOTH Adjustment Knobs simultaneously to the wire number determined in STEP 1 to Both labels 2B. -
Page 10: Step 3A & 3B Blue: Adjust Lower Closing Bar
Fig. 2 STEP 3A & 3B BLUE, Adjust Lower Closing Bar: See Figure 3. Locate Both Step 3A decals on both sides of the machine in Fig. 3 balloon (1). Adjust the Closing Lower Bar Knobs located behind the machine to the Wire No. -
Page 11: Step 4 Green, Adjust Wire Rest
STEP 4 GREEN, Adjust Wire Rest: See Figure 4. Locate Step 4 decal only on the left side of the machine (1). Adjust the Step 4 Knob by unlocking the center winged knob then turn the outside dial so that the Wire Rest (2) aligns with the appropriate Wire Number on decal 4B shown in Fig.4 (3). -
Page 12: Step 6, Load Wire
STEP 6, Load Wire: See Figure 6a. Place a piece of wire to be closed into the book load area with the wide loop facing down (1). Fig. 6a See Figure 6b. Place the first loop on the left side of the wire in-between the twin book stops on the left side of the machine. -
Page 13: Step 6, Adjust Table Height
STEP 6, Adjust Table Height: See Figure 6c. Locate the table height adjustment knob (1) only on the left side of the machine, unlock center winged knob and turn the outside dial until the wide loops of wire are slightly below table’s edge. As shown in Figure 6c Cross Section. -
Page 14: Step 7, Load Book
(2) of the wire, adjust until the narrow loops of the wire are hidden (3) with the Wire Guide in the down position. Loosen the pivots on both ends (4) (Black levers on the EWC-8370) and adjust the Upper Wire Guide (1) up or down until you have reached the desired results. Lightly retighten when adjusted. -
Page 15: Step 7, Adjust Book Guide
STEP 8, Load Book: Just prior to loading the book, the Rear inside Cover needs to be moved to the front of the book. This has three benefits. First, after binding, when you roll the rear cover back to its correct position, the rear cover hides the wire bind in the last page of the book making a professional presentation. -
Page 16: Step 8, Upper Wire Guide
STEP 8, Adjust Book Guide: Locate the book guide adjustment knob in Figure 8b item 1 only located on the left side of the machine. Unlock the center winged knob and turn the outside dial until the book guide indicator is in front of the book length to be bound. -
Page 17: Step 9, Bind
Fig. 8c STEP 9, Bind: See Figure 9. Bind (Close) the book (EWC-8370, Push buttons). Pull the Binding handle all the way forward and down then return to the upward and back position. Lift the Upper Wire Guide while removing the book then go to STEP 10. -
Page 18: Calendar Binding (Hc-8318 Only)
5) Calendar Binding (HC-8318 only): The HC 8318 Wire Inserter can bind books up to18” (457MM) long or documents with a calendar hanger inserted into the two wire elements. When binding any continuous wire up to 18” long, use the prior instructions for binding a book. All setup instructions are the same for the 18”... -
Page 19: Glossary Of Terms
6) Glossary of Terms: “Pitch” First loop to end loop Narrow Loop Shape Wide Loop Fig. 11 Fig. 12 Element / Wire References to the wire as a whole. I.e.: 32 loops Narrow Loop The section of the element that is closed into the holes of the book. Faces up when loaded properly. - Page 20 Close How near the narrow loop is to the wide loop when element is closed. Narrow loop should overlap wide loop by about 1/32” when closed. Cross-match The evenness of the bind. Viewed from end. Even Close: An even close is the most desirable type of bind. Over Close: When the wide loops are closed under the narrow loops, the covers may slip out of the bind if not closed tight enough.
-
Page 21: Ewc-8370 Control Panel
7) EWC-8370 Control Panel: See figure 13. The Power Switch I/0 (1) is located on top of the machine (On 230VAC models the power switch is on the back of the machine with the fuse. An indicator light is located in position (1) that indicates that the power is on or off). -
Page 22: Ewc-8370 115Vac
115VAC ONLY QUALIFIED PERSONEL SHOULD ATTEMPT TO WORK ON THIS EQUIPMENT. 983001 8370 EWC8370 8318 Issue May 2007 Page 20... -
Page 23: Ewc-8370Ce 230Vac
230 VAC ONLY QUALIFIED PERSONEL SHOULD ATTEMPT TO WORK ON THIS EQUIPMENT. 983001 8370 EWC8370 8318 Issue May 2007 Page 21... - Page 24 Be sure to fill out and return you Product Warranty Registration Card inside. If you don’t find one, please call us at 1-800-390-5782 or 1-208-384-8551. You can also register this product online at www.RHIN-O-TUFF.com then select Support then Warranty Registration. Quality Paper Punching and Book Binding Equipment at Affordable Prices www.RHIN-O-TUFF.com...
