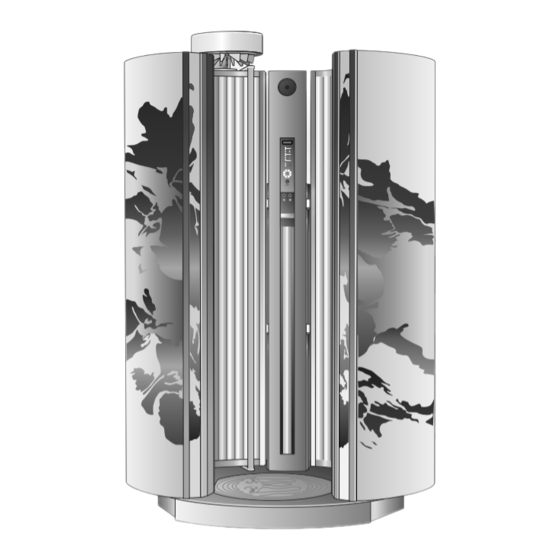

- Page 1 B E A U T Y A N G E L C V T 3 2 O PE R ATING IN STR U CTI ON S...
- Page 3 Operating instructions Translation of the original operating instructions BEAUTY ANGEL CVT 32 1020037-00 / en / 10.2018...
- Page 4 Legal notice Legal notice Manufacturer: JK-Products GmbH Köhlershohner Straße 60 53578 Windhagen GERMANY Tel.: +49 (0) 22 24 / 818-140 Fax: +49 (0) 22 24 / 818-166 Customer service / JK-International GmbH, Technical service Division JK-Global Service (Spare part orders for Köhlershohner Straße 60 components): 53578 Windhagen...
-
Page 5: Table Of Contents
Legal notice Legal notice Safety instructions and warnings ..........5 General ................... 5 1.1.1 Definitions ..................5 1.1.2 Symbol explanation ................. 6 Intended use ................... 7 Foreseeable misuse ................ 8 Device-specific safety instructions ..........8 1.4.1 Prohibited usage beauty device ............8 1.4.2 Important notes ................ - Page 6 Legal notice Operation ..................31 User safety information ..............31 Application times ................32 Application tips ................33 Operating overview ............... 35 3.4.1 Navigation ..................36 Functions ..................37 Start ....................38 AUX (music) .................. 39 Cleaning and maintenance ............40 Safety instructions when undertaking cleaning or maintenance work ............
-
Page 7: Safety Instructions And Warnings
Safety instructions and warnings Safety instructions and warnings To ensure safe operation of the device, it is necessary to read the following safety instructions and warnings carefully and comply with them. The safety instructions summarized here are repeated in the corresponding chapters, where necessary. -
Page 8: Symbol Explanation
Safety instructions and warnings 1.1.2 Symbol explanation The following types of safety notices are employed in these operating instruc- tions: DANGER! Type and source of hazard This safety notice indicates the existence of a direct danger to body and life. DANGER! Type and source of hazard This safety notice warns of dangers to body and life which... -
Page 9: Intended Use
Safety instructions and warnings Intended use BEAUTY ANGEL CVT 32: This device provides cosmetic stimulation of the skin with red light (photo-bio- stimulation). Further information can be found on pages 27 and 28. This device is intended only for commercial use and not for private use. -
Page 10: Foreseeable Misuse
Safety instructions and warnings Foreseeable misuse The following uses of the device are explicitly prohibited: The device may not be used by more than one person at the same time. People with a body weight of more than 135 kg may not use the device. ... -
Page 11: Important Notes
Safety instructions and warnings 1.4.2 Important notes An application is not recommended in the following circumstances: If you have utilized an oxygen facial pack in the last 24 hours, If your facial skin has been electronically tightened in the last 24 hours, ... - Page 12 Safety instructions and warnings People with the following illnesses may only use the device after con- sultation with their doctor: Cardiovascular diseases Hip and knee implants Severe diabetes Severe migraine attacks Tumour diseases Gallstones or kidney stones ...
-
Page 13: Skin Type Descriptions
Safety instructions and warnings 1.4.4 Skin type descriptions NOTE: Extending the specified application times cannot place ex- cessive demands on the skin due to the emitted light. How- ever we recommend a 48 hour break after a 20 minute treatment. ... -
Page 14: Safety Instructions And Warnings
Safety instructions and warnings Safety instructions and warnings 1.5.1 Operator's obligations As the operator you are responsible for providing clear operating, cleaning and maintenance instructions and ensuring the intended use and the proper operation of the device by means of training and instruction for the personnel. Your operating instructions must enable the safe use and safe operation of the device and take into account the characteristics and expertise of your company and also the national work safety and environmental protection... - Page 15 Safety instructions and warnings Assembly DANGER! Personal danger due to electric shock or burns! – The assembly and electrical connection must comply with the national regulations. – The on-site electrical installation must be fitted with an easily accessible all-pole isolating device (master switch), complying with overvoltage category III.
- Page 16 Safety instructions and warnings Setup location WARNING! Salty air! Contaminated air! Device damage due to corrosion of the housing and electri- cal components. – Do not install the device at swimming pools. – Do not operate the device in locations with aggressive environmental conditions (e.g.
-
Page 17: Commissioning
Safety instructions and warnings 1.5.5 Commissioning DANGER! Damaged mains power cable! Personnel at risk of electric shock or electric burns. – The mains connection cable must be replaced immedi- ately. Initial commissioning will be undertaken by the manufacturer's own service personnel or by an authorized service company. -
Page 18: Decommissioning
Safety instructions and warnings 1.5.7 Decommissioning The device must be disconnected from the power supply in order to tempo- rarily or permanently decommission it. You must abide by the legal disposal requirements when permanently de- commissioning the device. 1.5.8 Storage Store the devices in a dry location with a stable temperature. -
Page 19: Directives
Safety instructions and warnings The components and devices are labelled with the following symbol: The device will, if requested, be properly disposed of by the JK Corporate Group. This service is available free of charge. Your partner agency or dealer will be happy to advise. -
Page 20: Technical Modifications
Safety instructions and warnings Further details can be found in the information brochure 'Audio Guide' availa- ble on the Internet at http://www.jk-globalservice.de . NOTE: Pre-recorded SD cards which are delivered as accessories for a JK audio system are also subject to payment obligation for commercial usage. -
Page 21: Signs And Stickers On The Device
Safety instructions and warnings Signs and stickers on the device Danger area warning signs and important information about components are attached to the device. The signs shown below are examples. Ensure that the warning signs are always clearly recognisable and legible. Any missing warn- ing signs or stickers must be replaced. - Page 22 Safety instructions and warnings 2: Serial number The serial number is located at the bottom left of the pillar. 3: Maintenance instruction sticker (800701-..) 20/60...
- Page 23 Safety instructions and warnings 4: Connection sticker (1009050-..) The sticker is located behind the trim. 10/2018 1020037-00 Operating instructions – 21/60...
- Page 24 Safety instructions and warnings 5: Sticker "Don't grease“ (1014572-).. The sticker is located behind the trim. 6: EU warning sticker (1008607-..) This sticker also includes the language form 1504231-.. (see Technical Doc- umentation folder). 7: 'No export USA/Canada' sticker (84829-..) The sticker is mounted on the rear panel.
- Page 25 Safety instructions and warnings 8: Lamp set sticker The precise details of the required lamps are available in the separate appendix. 10/2018 1020037-00 Operating instructions – 23/60...
-
Page 26: Warranty
Safety instructions and warnings Warranty On behalf of customers who have purchased a collagen device for private or commercial utilisation from one of the JK-International GmbH sales partners, JK-International GmbH accepts liability for any defects that arise in accord- ance with the following regulations; consumable parts such as collagen pres- sure lamps and starters as well as acrylic glass panels are not covered by the warranty. -
Page 27: Description
Description Description Scope of delivery BEAUTY ANGEL CVT 32 device UV high pressure lamps lamps Vibra Shape Fan (body cooling) Trim, including loudspeaker and cockpit control Interior lighting Audio system AUX cable ... -
Page 28: Device Description
Description Device description 1. Base plate 2. Foot mat and vibration plate (Vibra Shape) 3. Operating panel 4. Holding bars 5. Headphone connection, jack plug Ø 6.3 mm 6. AUX connection, jack plug Ø 3.5 mm 7. Fan (body cooling) 8. -
Page 29: Accessories (Optional)
Description Accessories (optional) 1. Central air outlet system 2. AROMA Functional description The application with red light (photobiomodulation) promotes the formation of collagen, elastin and hyaluronic acid. The short-term effect is manifested as a firmer and closer skin feeling and a revitalised facial complexion. -
Page 30: Description Of The Recommended Applications
Description Description of the recommended applications AGEsmart application RENEW AGEsmart application VITALIZE AGEsmart application PROTECT Suitable for more mature users in Suitable for mature users who Ideal for younger users of 18 years order to alleviate wrinkles and wish to refresh their skin and and over for refining their com- actively combat skin aging counteract the initial signs of... -
Page 31: Agesmart And Vibrashape
Description AGEsmart and VibraShape Thanks to whole body vibration BEAUTY ANGEL CVT 32 not only offers an innovative light treatment but also a healthy training effect. This is made pos- sible by a vibration plate integrated into the standing surface which activates the entire musculature through its vibration. -
Page 32: Description: Vibration Programmes
Description Description: vibration programmes Programme Procedure Frequency Loosening and Low oscillating fre- relaxing the mus- quency cles Fitness programme Medium oscillating for newcomers frequency Fitness programme High oscillating fre- for advanced cus- quency tomers Improving the skin Alternating oscillat- texture and guard- ing frequency ing against cellu- lites... -
Page 33: Operation
Operation Operation User safety information DANGER! Danger of hearing damage! Using earphones or headphones at high volume can result in permanent hearing damage. – Do not set the volume too high. NOTE: Extending the specified application times cannot place ex- cessive demands on the skin due to the emitted light. -
Page 34: Application Times
Operation Application times NOTE: The vibration programmes each run for 10 minutes and can be utilized simultaneously either with or independently of the light application. AGEsmart AGEsmart application – Treatment recommendations Applications per week PROTECT VITALIZE RENEW Light Intensive Light Intensive Light Intensive... -
Page 35: Application Tips
Operation Application tips Beauty device – Stand up straight during the application and in the centre of the device. WARNING! Holding bars break when exposed to severe strain! The holding bars can be broken off if they are exposed to severe strain. - Page 36 Operation Vibra Shape DANGER! Risk of injury! The vibration function is not suitable for all users. – Please observe the contra-indications on page 9. NOTE: Each programme starts with a warm-up phase and ends with a cooling-down phase. A vibration programme normally lasts for 10 minutes.
-
Page 37: Operating Overview
Operation Operating overview 1. START/STOP button 2. Down navigation arrow button 3. Minus button 4. Display – Functions … 5. Vibra Shape diode 6. Body cooling pictogram 7. Volume pictogram 8. Audio system pictogram 9. Up navigation arrow button 10. Plus button 10/2018 1020037-00 Operating instructions –... -
Page 38: Navigation
Operation 3.4.1 Navigation The device is operated with the navigation ring. Switch on lamps: Tip the button once. Switch off lamps/interrupt application: Hold the button. Select device function (go to pictogram) e.g. VOLUME Select sub-function (if available) Change setting The diodes of the available functions and the navigation ring are illuminated in default mode after starting up the device. -
Page 39: Functions
Operation Functions Function Button sequence Description Information 1. Lamps START/STOP If the lamps are switched off Switch lamps on/off during the during the application, the appli- application (in combination with cation time continues to run. Vibra Shape: See below) 5. Vibra Shape Select Vibra Shape Tip the button once: Vibration plate ... -
Page 40: Start
Operation Start – Close the entrance. – Press the START/STOP button. Upon starting the following functions are activated: UV high pressure lamps lamps Body cooling Audio system AROMA (optional) 38/60... -
Page 41: Aux (Music)
Operation AUX (music) DANGER! Danger of hearing damage! Using earphones or headphones at high volume can result in permanent hearing damage. – Do not set the volume too high. The user can connect her/his own private MP3 player or smartphone to the device. -
Page 42: Cleaning And Maintenance
Cleaning and maintenance Cleaning and maintenance Safety instructions when undertaking cleaning or maintenance work DANGER! Electricity throughout entire device! Personnel danger due to electric shock or electric burns. – Before beginning work, disconnect all of the power connections from mains voltage. –... -
Page 43: Faults
Cleaning and maintenance Faults Error codes are output to the display to simplify troubleshooting: If a fault occurs, the error code flashes on the display. If several errors occur, the error messages are displayed alternately. Error elimination is acknowledged by pressing the START/STOP-button. ... -
Page 44: Cleaning The Surfaces
Cleaning and maintenance 4.3.1 Cleaning the surfaces Acrylic glass surfaces WARNING! Do not rub with a dry cloth – danger of scratching! Failure to comply invalidates any warranty claims. – For the fast, hygienic and proper cleaning of acrylic glass surfaces, use specially developed cleaning agents. -
Page 45: Cleaning Plan
Cleaning and maintenance Cleaning plan Component Interval Activity page Entry area Cleaning and disinfection Foot mat (plastic) Cleaning and disinfection Control panel Cleaning and disinfection Holding bars Cleaning and disinfection Protective goggles Cleaning and disinfection AUX cable Cleaning and disinfection Acrylic glass panels Cleaning Surfaces... -
Page 46: Maintenance
Cleaning and maintenance Maintenance Maintenance and care play a major role in deciding whether the device ade- quately meets the requirements placed on it. Compliance with the specified maintenance intervals and thorough maintenance and care are therefore absolutely essential. The current operating hours of maintenance parts can be called up in service mode (see 'Presettings', order no. -
Page 47: Maintenance Plan
Cleaning and maintenance Maintenance plan WARNING! Only use genuine spare parts of the same type! If other parts are used then the device no longer complies with the conformity declaration and may not be operated any longer! Any liability for damage or injury proven to be the result of the use of non-genuine spare parts is excluded. - Page 48 Cleaning and maintenance Maintenance performed by authorized, trained and qualified staff WARNING! Danger to persons from maintenance work that has not been carried out! If maintenance work is not carried out, it can lead to material damage or personal injuries! –...
-
Page 49: Instructions For Replacing The Lamps
Cleaning and maintenance Instructions for replacing the lamps The lamp effect decreases over the course of time. As such, the replacement intervals specified in the maintenance plan must be adhered to. DANGER! Danger of burns from hot lamps and surfaces! Finger and hands may get burned when replacing lamps. -
Page 50: Beauty Light Lamps
Cleaning and maintenance 4.8.1 Beauty Light lamps Replace faulty lamps immediately. Always replace the entire set of lamps after the specified operating time. – Turn 90° and carefully remove from the socket. – Push the pins vertically into the socket from above. –... -
Page 51: Makrolon Tubes
Cleaning and maintenance 4.8.2 Makrolon tubes Coloured makrolon tubes can be fitted on the accent lamps. The makrolon tubes do not have to be changed, merely refitted with the new lamps. – Remove the makrolon tube from the old lamp. –... - Page 52 Cleaning and maintenance – Remove the screw. – Fold down the clamping strip. – Use the suction cup to pull out the panel from the guide. – Remove the panel to the side and carefully place it to one side. –...
-
Page 53: Cleaning Or Replacing The Lamps On The Right
Cleaning and maintenance 4.10 Cleaning or replacing the lamps on the right WARNING! Acrylic glass panels unusable due to soiling! Soiling on the panels is burned in by the hot lamps and results in the long term in unserviceable panels. –... -
Page 54: Cleaning Or Replacing Interior Lighting
Cleaning and maintenance 4.11 Cleaning or replacing interior lighting – Using suction cups, pull the lamp cover in the upper area from the panel and remove. Replacing lamps: see page 47. Makrolon tube: see page 49. The assembly is the same process in reverse order. When assembling the device please note: –... - Page 55 Cleaning and maintenance – Write the current date on the rear of the new canister. – Remove the lid from the canister. – Insert the new canister. Replace the cover: – Insert the pin into the slot. – Place the cable next to the thread. –...
-
Page 56: Technical Data
Technical data Technical data Power, connection rating and noise level BEAUTY ANGEL CVT 32 Power consumption rating (without exhaust air): 5400 W Power consumption rating (with exhaust air): 5700 W Rated frequency: 50 Hz Rated voltage: 400 V ~3 230 V ~3... -
Page 57: Dimensions
Technical data Dimensions B = 1090 mm BK = 2100 mm B1 = 700 mm BK1 = 375 mm B2 = 1350 mm TK = 2400 mm B3 = 620 mm TK1 = 1000 mm T = 1100 mm TK2 = 300 mm T1 = 700 mm T2 = 1100 mm H = 2360 mm... -
Page 58: Lamp Sets
Power Control Order-no. Low pressure lamps 2.00 m 180 W 180 W 1011136-.. BEAUTY ANGEL BEAUTY LIGHT 180 W C2 Low pressure lamps 2.00 m 180 W 180 W 1011136-.. BEAUTY ANGEL BEAUTY LIGHT 180 W C2 Accent lighting Number... -
Page 59: Spare Parts And Accessories
Technical data Spare parts and accessories Number Description Order-no. Acrylic glass panels 1506540-.. AROMA, 5 ml WELLNESS 1009536-.. Protective goggles 84592-.. AUX cable 1001855-.. Allen key 83828-.. 10/2018 1020037-00 Operating instructions – 57/60... -
Page 60: Appendix
Appendix Appendix JK timer controls The following coin modules/time control systems can be utilized with the BEAUTY ANGEL CVT 32 series devices. MCS III plus Order no.: 500000456 04144 / 0 Studiopilot Order no.: 34009900 58/60... -
Page 61: Index
Index Index Accessories ......27, 57 Electrical installation ....13 Acrylic glass (care) ....42 Electrical specifications .... 54 Acrylic glass panel, Equipment ........ 25 permitted load ......54 Error codes ......41 Adolescents ......7, 31 Exhaust air ventilation ....13 AGEsmart Export ........ - Page 62 Index Operating altitude ..... 14 Safety ........13 Operating overview ....35 Safety equipment ..... 24 Operator's obligations ....12 Safety instructions Order numbers ....56, 57 Device-specific safety instructions ......8 General safety instructions ....12 Packaging ........ 16 Scope of delivery ....
