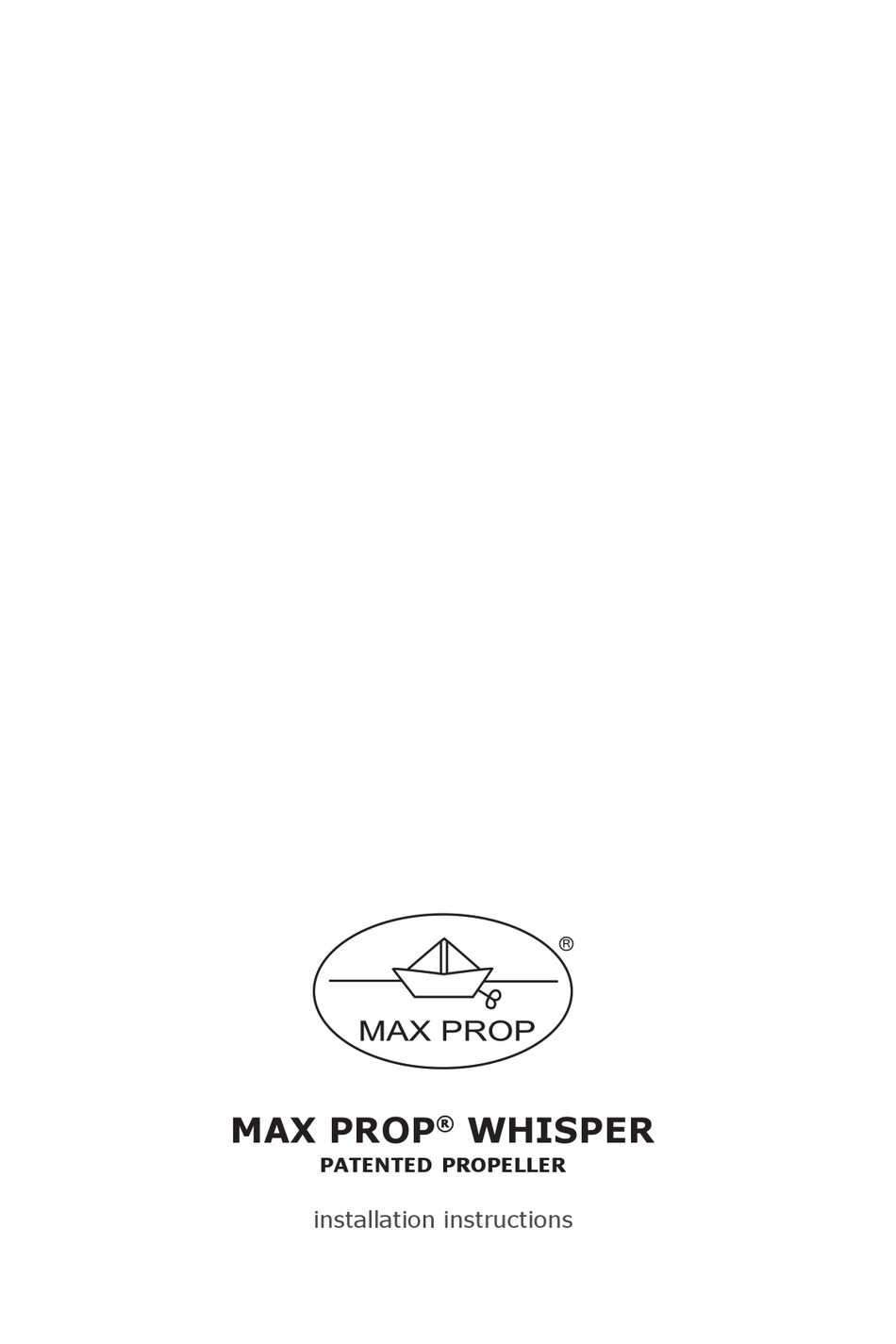

- Page 1 MAX PROP WHISPER ® patented propeller installation instructions...
-
Page 2: Installation
INTRODUCTION Thank you for choosing a feathering propeller MAX PROP WHISPER. This instruction ® manual will be used to answer all your questions about installation and use of the propeller. It is very important to read it carefully and verify the correct operation of the propeller before installing it on your boat. - Page 3 Fill the propeller with marine grease through the appropriate holes by using a lubrication tool. The MAX PROP WHISPER propeller works properly only if ® completely filled with fluid grease. Verify that the grease seeps from the joints through the rotating parts (the hub and the blades) and the propeller body, so as to be sure that all of the rotating surfaces are perfectly greased.
-
Page 4: Pitch Adjustment
The diameter and pitch must be calculated as if MAX PROP WHISPER was a common ® fixed-pitch propeller. With respect to traditional propellers, MAX PROP WHISPER gives ®... - Page 5 hole “R” and the backwards motion pitch by acting on the screw/rod housed in the hole “L”. On the contrary, if the propeller is left-handed the two pitches, for forward motion and for backwards motion, are changed by acting on the screws/ rods housed in the holes “L”...
- Page 6 d. The penetration depth of the screw/rod in the propeller body, and therefore the propeller pitch, can be easily varied by the user by choosing one of the following two procedures, at will: • PROCEDURE A: Before installing the propeller on the boat, at first insert into the two housings two screws/rods each having great length and then screw them up to abutment.
- Page 7 FIG. 5 SCREW/ROD KIT SUPPLIED FOR PITCH ADJUSTMENT SCREWS/RODS S UPPLIED SCREWS/RODS S UPPLIED FOR F ORWARD FOR R EVERSE PROCEDURE RANGE ...
- Page 8 24 degrees for the forward motion and minimum pitch 16 degrees for the backwards motion. In order to obtain pitches whose values are outside the adjustment range, Max Prop can supply longer screws, on request. • PROCEDURE B: If this procedure is chosen, each MAX PROP WHISPER propeller is supplied with ®...
- Page 9 If the shaft rotates clockwise, the rotation is right-handed; by contrast, if it rotates counterclockwise, the rotation is left-handed). In order to change rotation of the MAX PROP WHISPER, from right-hand rotation to left-hand ®...
-
Page 10: Important Warnings
PROPELLER USE The MAX PROP WHISPER propeller works completely automatically. It takes the pitch ® when the drive shaft is rotated to travel forward or backwards (WARNING: reversing the rotation when the number of revolutions is too high is definitely inadvisable). The propeller feathers when engine is off, starting from the position to travel forward, with the propeller shaft locked. - Page 11 PROPELLER DISASSEMBLY In order to remove the propeller you must first remove the zinc and the nut-locking screws; then fasten a perforated washer, supplied only on request, on the zinc-holding ring by means of five threaded grub screws (fig. 8). Screw the five threaded grub screws (long enough and provided with five nuts) into the five threaded holes obtained in the zinc-holding ring, making sure that all five threaded grub screws are tightened to the bottom of their own threaded hole.
- Page 12 4. The non-compliance of the conditions 1, 2 and 3 means the loss of the warranty. 5. Max Prop Srl is to repair and replace free of charge the original pieces of the propeller which may result damaged due to construction defects or due to material defects. Max Prop Srl will not pay, for any reasons, any refund whatsoever, not even partial.
