ACCESSORY (801903/801908) FOR
DUSTTRAK ENVIRONMENTAL MONITOR
Thank you for purchasing the wireless router and
mounting kit (TSI P/N 801903 and 801908) for your
DustTrak™ Environmental Monitor. These instructions
will help you quickly install the wireless router into the
enclosure.
Unpacking the Wireless Router
Accessories
1. Carefully unpack the Wireless Router and Mounting
Kit from the shipping container and verify that all the
items listed in the following table are present.
2. Contact
TSI
immediately if items are missing or
broken.
3. Configuration of the wireless router and DustTrak
Environmental Monitor Ethernet IP address should
be completed prior to starting this installation
procedure.
NOTE: Instrument power supply should be
disconnected prior to starting this
installation procedure.
_______________
TSI and TSI logo are registered trademarks of TSI Incorporated.
DustTrak is a trademark of TSI Incorporated.
3M, the 3M logo and Command are registered trademarks of 3M Company.
WIRELESS ROUTER
Item
Qty.
Description
1
GL-AR150
Wireless Router
with USB Cable
4" Wireless 1dB
1
Hinged Antenna
12" RJ45 Cable
1
Cat 6
18" RP-SMA
1
Extension Cable
(Male to
Female) with
antenna post
®
®
1
3M
Command
brand Strips
6 pack
INSTALLATION GUIDE
Reference Picture
Advertisement
Related Manuals for TSI Instruments 801903
Summary of Contents for TSI Instruments 801903
-

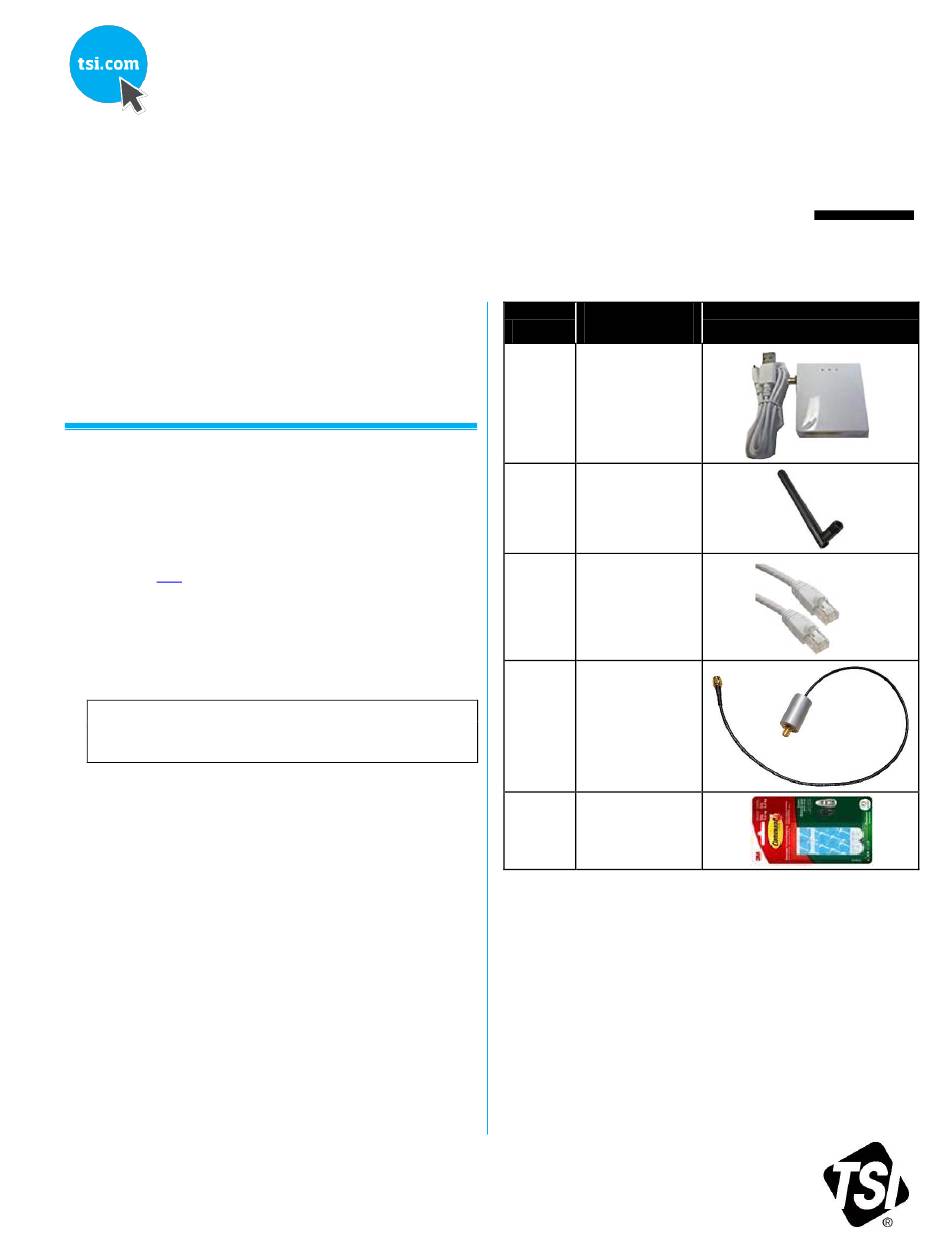

Page 1: Wireless Router
Item Thank you for purchasing the wireless router and Qty. Description Reference Picture mounting kit (TSI P/N 801903 and 801908) for your DustTrak™ Environmental Monitor. These instructions GL-AR150 Wireless Router will help you quickly install the wireless router into the with USB Cable enclosure. - Page 2 4. Remove blue liner and Installing Wireless Router into ® attach a 3M the Environmental Enclosure ® Command brand strip to the back of the 1. Feed the female wireless router. Be end of the SMA- sure not to cover the cable through vent holes.
- Page 3 7. Connect AC power cord to the side of the enclosure. 8. Connect the other end of the power cord to an AC main terminal. The blue light on the DustTrak monitor will illuminate, indicating the instrument has power. After two (2) minutes, the red and green LEDs on the wireless router will also...
- Page 4 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030...
