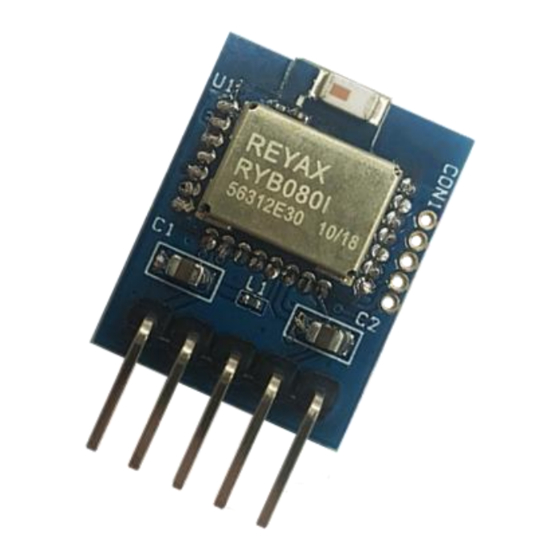

- Page 1 07-NOV-2018 56312E33 RYB080I 2.4GHz Bluetooth 4.2 &5.0 Low Energy Module with Integrated Antenna Datasheet 11*11*2.2mm...
-
Page 2: Product Description
PRODUCT DESCRIPTION The RYB080I is a Bluetooth v4.2 & v5.0 Low Energy Module. By using the AT command which is developed by REYAX, your products could be fast and easily connected with the smartphones and all kinds of Bluetooth devices. -
Page 3: Specification
BLE broadcast once in 10 Current second. Standby Current AT+CFUN=0 Wake Up Time Simultaneous connections UART Baud Rate 9600 115200 RF Frequency Range 2400 2483.5 Flash erase cycles Cycles Operating Temperature ˚C Antenna Embedded Ceramic Antenna Weight Copyright © 2018, REYAX TECHNOLOGY CO., LTD. -
Page 4: Pin Description
RYB080I 2.4GHz Bluetooth 4.2 & 5.0 Low Energy Module with Integrated Antenna PIN DESCRIPTION RY B080I DIO9 DIO8 DIO0/WAKE UP DIO7 DIO1/RXD DIO6 DIO2/TXD DIO5 Copyright © 2018, REYAX TECHNOLOGY CO., LTD. - Page 5 Power Supply Leave Unconnected. RESET_N Low Reset Ground DIO5 GPIO, Sensor Controller, Analog DIO6 GPIO, Sensor Controller, Analog DIO7 GPIO, Sensor Controller, Analog DIO8 GPIO, Sensor Controller, Analog DIO9 GPIO, Sensor Controller, Analog Ground Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
-
Page 6: Application Schematic
JTAG_TCKC 10uF BLM18HE152SN1 Title RYB080I Application Schematic Size Document Number Custom <Doc> Date: Sunday , March 11, 2018 Sheet BLOCK DIAGRAM Filter Processor TI CC2640R2F Bluetooth Engine 24MHz WAKE UP Crystal 32768Hz Crystal Copyright © 2018, REYAX TECHNOLOGY CO., LTD. -
Page 7: Reflow Soldering
Controlled cooling helps to achieve bright solder fillets with a good shape and low contact angle. Temperature fall rate: max 4 °C/s To avoid falling off, the REYAX RYB070I module should be placed •... - Page 8 RYB080I 2.4GHz Bluetooth 4.2 & 5.0 Low Energy Module with Integrated Antenna DIMENSIONS Unit : mm Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 9 RYB080I 2.4GHz Bluetooth 4.2 & 5.0 Low Energy Module with Integrated Antenna LAYOUT FOOTPRINT RECOMMENDATIONS Unit : mm Antenna Anti-copper area Top layer Anti-copper area Bottom layer Ground Copper area Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 10 2.4GHz Bluetooth 4.2 & 5.0 Low Energy Module with Integrated Antenna AT COMMAND [1] After booting up, the RYB080I is in the low-energy broadcasting mode. While the pin4(WAKE UP) was triggered by any entered signals (Example: Sending a character “A”), UART interface will be woken.
- Page 11 <Power>range 0 to C 0=-21dBm 1=-18dBm 2=-15dBm 3=-12dBm 4=-9dBm 5=-6dBm 6=-3dBm 7=0dBm 8=1dBm 9=2dBm A=3dBm B=4dBm C=5dBm(default) Example：set the output power as -9dBm AT+CRFOP=4 * It will be memorized in Flash after setting. AT+CRFOP? +CRFOP=4 Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 12 4:500ms 5:1s 6:2s 7:3s 8:5s 9:10s Example：Setting the BLE broadcasting period Is 500ms in 1second. AT+PERIOD=4 * It will work after RESET. * It will be memorized in Flash after setting. AT+PERIOD? +PERIOD=4 Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 13 Broadcasting turned-on> have to be longer or equal to the BLE broadcasting period. Example: Setting the third power mode, the cycle of, turned-on for 1 sec, turned-off for 20 seconds. AT+PWMODE=3,001,020 AT+PWMODE? + PWMODE=3 Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 14 AT+IPR=7 * It will work after RESET. * It will be memorized in Flash after setting. AT+IPR? +IPR=7 *Byte Size=8 ，Parity=None， Stop Bits=1 11. AT+ADDR to inquire MAC address Syntax Response AT+ADDR? +ADDR=123456ABCDEF Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 15 13. AT+CONNECT? to inquire the connection status Syntax Response AT+CONNECT? +CONNECT=<Port1>, <Port2> <Port1>, <Port2>are the status of two BLE protocol port 0: Unconnected H: Connecting, represent “Host” C: Connecting, represent “Client” AT+CONNECT? +CONNECT=0, C Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 16 <MAC> MAC address <Role>“H” represent“Host”; “C” represent “Client” Example: The Central connect to the Peripheral whose MAC address is 123456ABCDEF <Port>is the BLE protocol port AT+CON=123456ABCDEF +++++H1 * Suitable for Reyax BLE products Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 17 Syntax Response AT+GPIO=<GPIO NO.>, <H/L> < GPIO NO. >rang is 5/6/7 <H/L> GPIO output voltage is 0 represent Low, 1 represent High Example: Setting the output of GPIO port 5 is High. AT+GPIO=5,1 Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 18 "FGHIJ" via protocol port 1 through UUID FFF4 from the Client [4] Sending data +1:OK <TxData> +2:OK <TxData>: the data going to be sent Example: Sending “ABCDE” to BLE protocol port 1 & 2 through UUID FFF4 ABCDE Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 19 Response AT+CGMS? +CGMS=RYB080I_56312E30 21. Other response messages Syntax Response +READY After RESET +ENTER=1 * Our Company is not responsible for any technical malfunction or other problems if users modify the module by themselves. Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
- Page 20 “Contains Transmitter Module FCC ID: QLY-RYB080I” or “Contains FCC ID: QLY-RYB080I.” Any similar wording that expresses the same meaning may be used. Additionally, there must be the following sentence on the device, unless it is too small to carry it: “This device complies with part 15 of the FCC Rules.
- Page 21 &RQV XO W W KH GHDO HU RU DQ H[ SHU L HQFHG U DGL R 7 9 W HFKQL FL DQ IRU KHO S — Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Taiwan: sales@reyax.com China: sales@reyax.com.cn http://reyax.com Copyright © 2018, REYAX TECHNOLOGY CO., LTD.
