AIFA i-Ctrl User Manual

Wi-fi remote control box
Hide thumbs Also See for i-Ctrl:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AIFA
AIFA
i
Ctrl
My life.
-
,
Wi-Fi Remote Control Box
User manual (JP)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-Ctrl and is the answer not in the manual?

Questions and answers

Related Manuals for AIFA i-Ctrl

Summary of Contents for AIFA i-Ctrl

  • Page 1 AIFA AIFA Ctrl My life. Wi-Fi Remote Control Box User manual (JP)
  • Page 2 Administrative Regulations Without permission granted by the DGT, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a approved low power radio-frequency device. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications;...

  • Page 3: Table Of Contents

    Content Product information ..........4 Installation ............5 Interface .............. 9 Code setting ............10 Code auto search ..........12 Learning mode - Icon setting ......14 Learning mode - Learning function ...... 15 Learning mode - Delete learned buttons ....17 Schedule ............

  • Page 4: Product Information

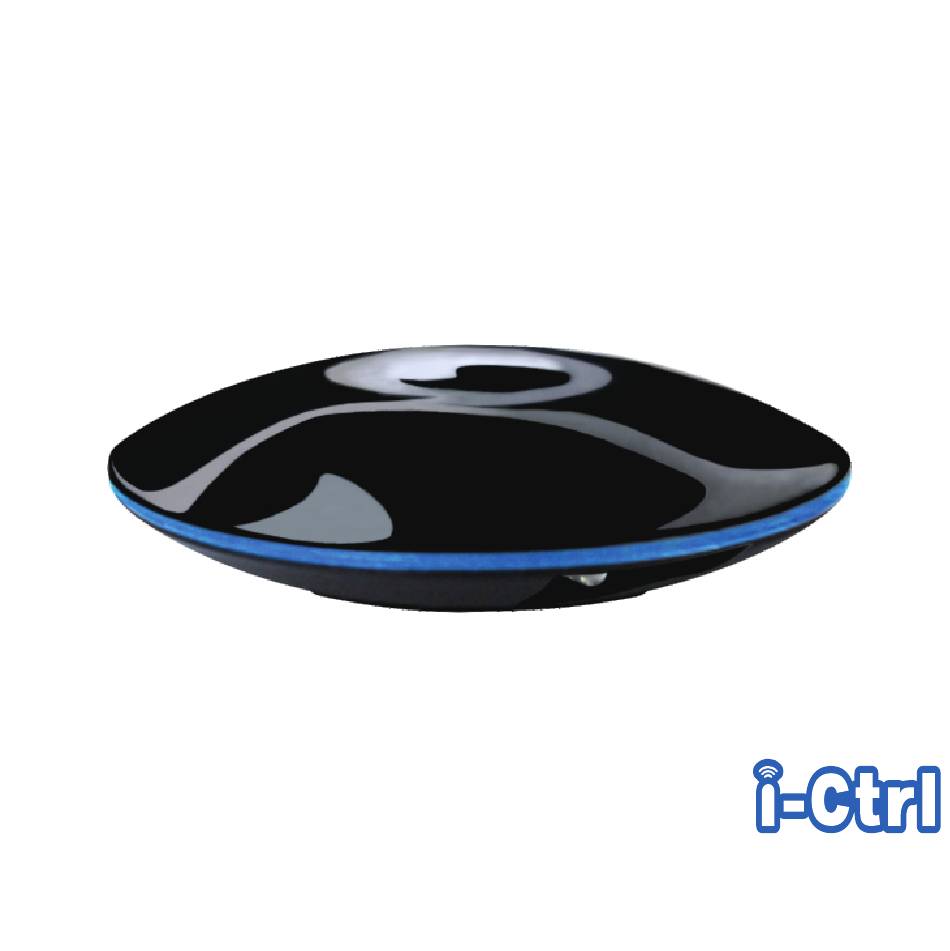

    Product information i-Ctrl Remote control box Small pin A IF A A IF A My life . Ctr l Wi- Fi Rem ote Con trol Box Use r man ual User manual USB Adapter...

  • Page 5: Installation

    Installation iOS APP download 1. Connect to the power. 2. Please install "AIFA i-Ctrl" from APP Store or Google Play on smart phone or tablet. Connect to the Wi-Fi router with your smart phone or tablet. Android download Note: Only for first time use.
  • Page 6 4. Start "AIFA i-Ctrl" app from smart phone or tablet; Use the small pin to press the "SET UP" button. Note: Only for first time use.
  • Page 7 5. Press "First use", enter Wi-Fi password, and press "CONFIRM". Note: Only for first use.
  • Page 8 6. Select the i-Ctrl you want to control by pressing its name and press "Connect". (Note: Rename i-Ctrl by a long press on its name. Swipe screen to change device. Go back to step 4~5 if you want to set up more...

  • Page 9: Interface

    Interface 1. Return: Return to previous page. 2. Transmit symbol: Flash Blue after signal was sent successfully. 3. Trash can: Delete learned buttons. 4. L: Learning Mode. 5. Setting: Brand list set up. 6. Other details setting 7. Main interface 8.

  • Page 10: Code Setting

    Code setting (Example: TV mode) 1. Turn on your TV. 2. Press "Setting" in the App, and choose your TV brand.
  • Page 11 3. Choose your TV set code (if you know) or just try each code to test if the code is available. If it is available, your TV will be turned off. Press "OK" to get back to code setting page. 4.

  • Page 12: Code Auto Search

    Code auto search (In TV mode for example) 1. Turn on the TV, press "Other details setting"and "Setting / SEARCH", choose searching way via "BRAND" or "ALL". (i-Ctrl will search all brand scanning or all code without brand limitation.)
  • Page 13 2. Your TV will be turned off as the right code has been found. Press "STOP" and return to" TV" page. 3. Test each button in the App. If it doesn't work, please return to step 1~2 to try other code. Note: If you are too late to press "STOP", you can enter correct code...

  • Page 14: Learning Mode-Icon Setting

    Learning mode-icon setting 1. Please press "Setting" and "OK", choose "Setting icon" or "Input text" to edit button.

  • Page 15: Learning Mode-Learning Function

    Learning mode-learning function 1. Press "L" button and "OK" to enter LEARNING MODE. Once the LEARNING MODE stars. Press any button to start learning such as "POWER". Note: Some infrared signals cannot copy.
  • Page 16 2. Move your remote control close to the IR LED of the control box and press the Within "POWER" button on the 3 cm remote control. If it learns successfully, the "POWER" button in the App will be framed in "BLUE". 3.

  • Page 17: Learning Mode - Delete Learned Buttons

    Learning mode - delete learned buttons 1. Press "Trash can" and choose "Delete all" or "Delete one key". If you choose "Delete one key", press the button you want to delete and "Confirm". Press the "Trash can" to exit SELECT DELETE MODE.

  • Page 18: Schedule

    Schedule 1. Press the "Other details setting", "Schedule", "+" button to add a new schedule. 2. After setting the schedule, press "Save" then press "Return" to TV mode.
  • Page 19 3. Illustration to SCHEDULE interface. A: RETURN: back to Android previous page. B: +: add new schedule. C: Trash can. D: Outline the schedule. E: Switcher: turn on or turn off by sliding it. Note: 1. iOS has a few differences on "DELETE SCHEDULE", please refer to left picture.

  • Page 20: Macro

    Macro 1. Please press "Macro" and "+" to add a new Macro. Enter a name first and then select the devices, key function and delay. After selecting the icon, please press "Double arrow". You can setup the others devices and key function this way. Press "Save" to finish the setup. (Note: back to step 1 if you want to set up more.)
  • Page 21 2. Macro setup Android Macro：When pressed will send out the set commands B. View Settings: You can edit the Macro this way. C. Other details settings: In the Android system, press the box for 3 seconds, then you can see the other functions (Note a).

  • Page 22: Product Specification

    Code Search. 3. Non-stop flashes of red light: In learning mode. 4. Red light on: Learning succeeded or failed. 5. Blue light on: i-Ctrl is connected to the server. 6. Non-stop flashes of blue light: Cannot connect to Wi-Fi router.
