- Page 1 AIFA AIFA Ctrl My life. Wi-Fi Remote Control Box User manual...
- Page 2 Administrative Regulations Without permission granted by the DGT, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a approved low power radio-frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications;...
-
Page 3: Table Of Contents
Content Product content ........... 4 Installation ............5 Illustration ............9 Code setting ............10 Code auto search ..........12 Code matching (Air-cond mode only) ....14 Schedule ............16 Learning mode - Icon setting ......18 Learning mode - Learning function ...... 19 Learning mode - Delete learned buttons .... -
Page 4: Product Content

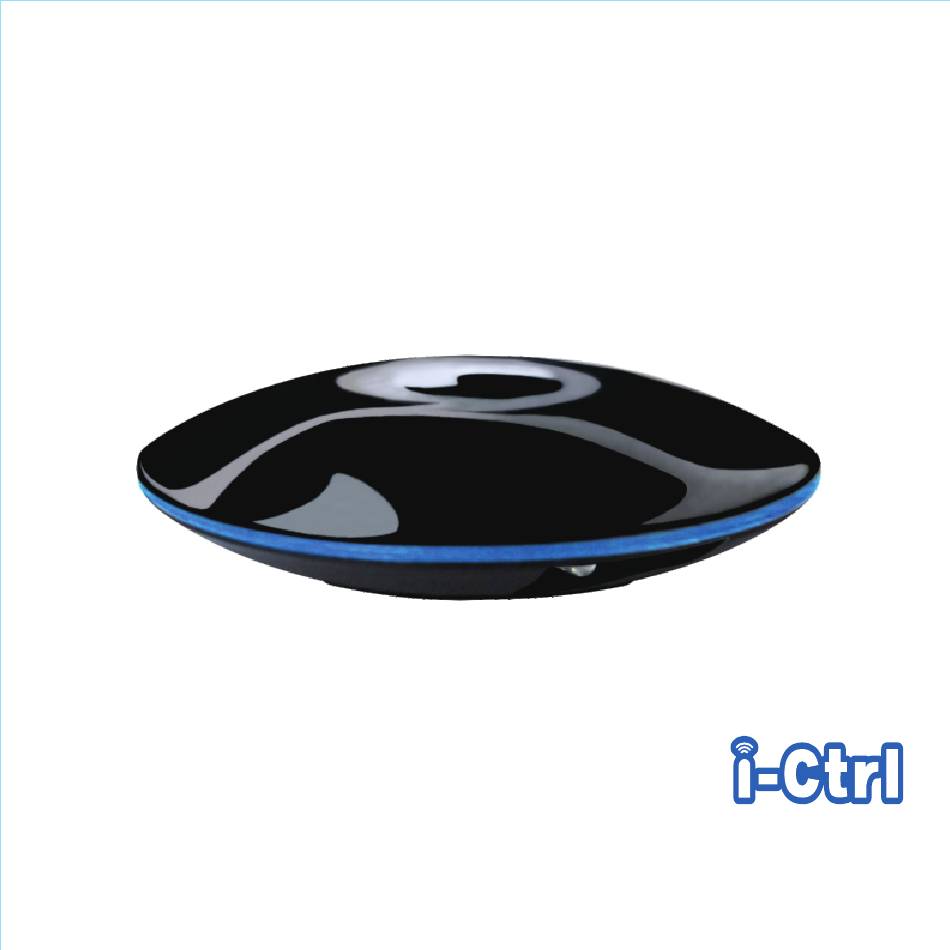

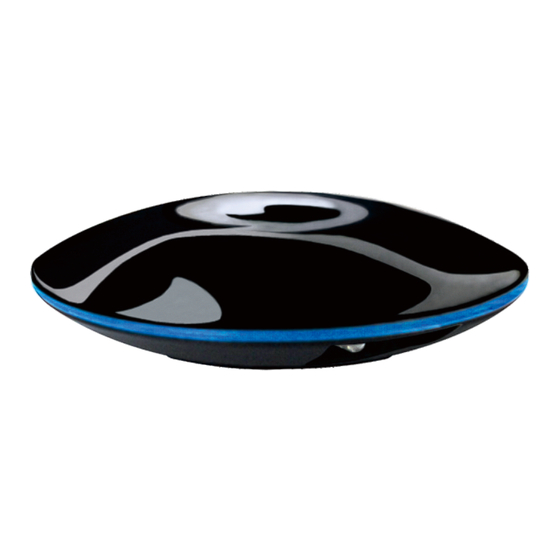

Product information i-Ctrl Remote control box Paperclip A IF A A IF A My life. Ctrl Wi-F i Rem ote Con trol Box Use r man ual User manual Transformer... -
Page 5: Installation
Illustration iOS APP download 1. Connect with the power. 2. Please install "AIFA i-Ctrl" from APP Store or Google Play on smart phone or tablet. 3. Link Wi-Fi router. Android download Note: Only for first use. - Page 6 4. Please star "AIFA i-Ctrl" app from smart phone or tablet; Use the paperclip to press the "SET UP" button. Note: Only for first use.
- Page 7 5. Please press "First use", log in Wi-Fi password, and press "CONFIRM". Note: Only for first use.
- Page 8 6. Please press "Mode name", and press "Connect". Change the other mode by wiping. (Note: Revise the "Mode name" by long-pressing. Go back to step 4~5 if you want to set up more control box.)
-
Page 9: Illustration
Illustration 1. L: Learing Mode. 2. Return: Return to previous page. 3. M: Code matching (Air-cond mode only). 4. Device name 5. Transmit symbol: Flash blue lights after sending signal. 6. Lightning sign: Finish connecting with the control box; Red "X" means connect failed. -
Page 10: Code Setting
Code setting (take TV mode as an example) 1. Please turn on the TV, Press "Setting" on app, Select "BRAND LIST" to select proper TV brand. (NOTE: If you know code number , you can enter it directly.) - Page 11 2. Choose your code (if you know) or just try each code to test if the code is applicable. If it is applicable, your TV will be turned off. Press "Confirm" to get back to code setting page. 3. Test each button on app.If it doesn't work, please return to step 1~2 to try other code.
-
Page 12: Code Auto Search
Code auto search (take TV mode as an example) 1. Turn on the TV Press "SETTING " "SEARCH" choose searching way via "BRAND" or "ALL". (i-Ctrl will search via brand scanning or all code without brand limitation.) - Page 13 2. Your TV will be turned off as the right code has been found. Press "STOP" and return to" TV surface" page. 3. Test each button on app.If it doesn't work, please return step 1~2 to try other code. Note: If you are too late to press "STOP", you can enter correct code TURN OFF...
-
Page 14: Code Matching (Air-Cond Mode Only)
Within 3 cm CONDITIONER MODE" Press "M" to starting match Connect the infraredreceiver between air- conditional remote controller and control box within 3 cm Press "Power". i-Ctrl will start to match the suitable code for the air- conditioner around few minutes. - Page 15 2. Pic. A: one matching Press "CONFIRM" and back to air-con mode. Pic. B: two more matching. Press "CONFIRM" if workable. If it isn't workable, press "Next" to test another code, Press "CONFIRM" if workable.
-
Page 16: Schedule
Schedule 1. Press the "SCHEDULE" button Press "+"to add a new schedule. 2. After setting the schedule Press "Save" Press "Return" to TV mode. - Page 17 3. Illustration to SCHEDULE surface A: RETURN: back to Android previous page. B: +: add new schedule. C: Trash bin. D: Outline the schedule. E: Switcher: turn on or turn off by wiping it. Note: 1. iOS has few difference on "DELETESCHEDULE", please refer to left pic.
-
Page 18: Learning Mode-Icon Setting
Learning mode-icon setting 1. Please press "Setting", Press "CONFIRM" to enter icon mode select proper icon... -
Page 19: Learning Mode-Learning Function
Learning mode-learning function 1. Press the "L" button and "CONFIRM" to enter LEARNING MODE. The "BULB" icon will appear. Press any button to start learning such as "POWER" Note: Some infrared signals cannot copy... - Page 20 2. Move your remote control close to the indicator of control box Within 3 cm and press "POWER" button on the remote control. If it learns successfully, the "POWER" button in the app will be framed in BLUE. 3. After the completion of learning, press "RETURN"...
-
Page 21: Learning Mode - Delete Learned Buttons
Learning mode - delete learned buttons 1. Press "Setting" in the lower right corner and then press "OK" Choose the button you want to delete Press the button in the upper left corner, you can delete single icon Press the "Setting"... -
Page 22: Noted
3. Please use it in a proper environment. Please store it in a safety place if you don't want to use. 4. i-Ctrl and APP have the rights to advised it and without notification. -
Page 23: Product Specification
3. Non-stop flashes of red light: Under learning mode. 4. Red light keeps lighting: Learning succeeded or failed. 5. Blue light keeps lighting: i-Ctrl is connected to the server. 6. Non-stop flashes of blue light: Cannot connect to Wi-Fi router.
