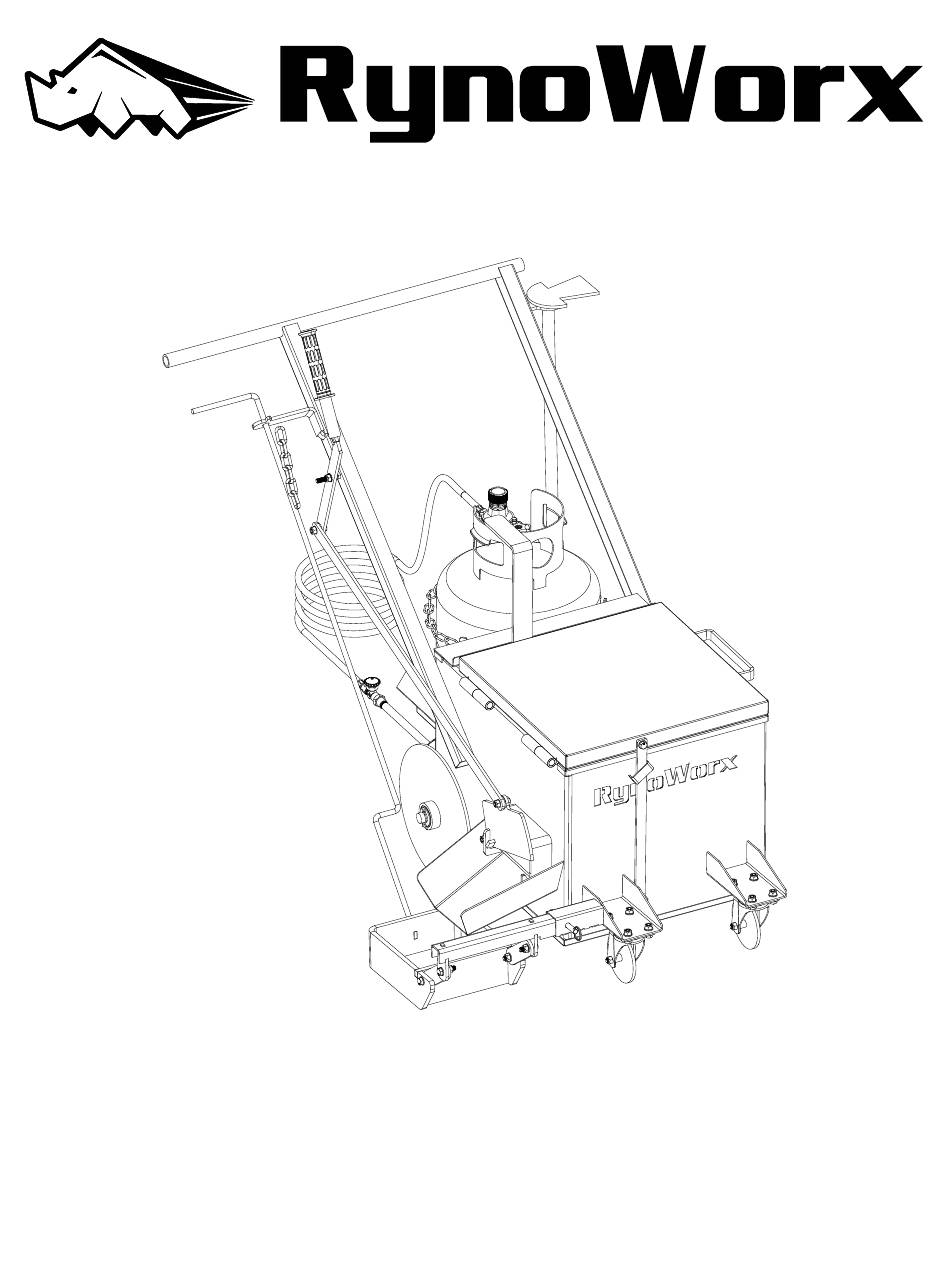

- Page 1 Operator's Manual Model: RY10MS MPN: RA-MLT-0011 10 Gallon Mastic Applicator Torch Model For Technical Support Please Visit www.RynoWorx.com or Call 1-855-382-9611...
- Page 2 ⚠ Before servicing, make sure the unit is fully cooled and the liquid propane cylinder is disconnected. ⚠ Only genuine RynoWorx replacement parts should be used for any replacements or repairs. Do not attempt to modify or alter this product in any way.
- Page 3 Front Caster Assembly - 4 Bolt Style RA-BAS-0055 8" Shoe Assembly - Mastic Applicator RC-FAB-0127 Gate Valve - Mastic Applicator RA-WHL-0008 Rear Wheel Assy with Bearings - Melter Applicator MPN: Model: RA-MLT-0011 RY10MS Description: 10 Gallon Mastic Applicator Torch Model...
- Page 4 • Replacement Parts RA-WHL-0008 - Rear Wheel with Bearings RC-BRG-0001 - Wheel Bearing for Melter Applicator Rear Wheel RA-WHL-0005 - Front Caster with Wheel RC-WHL-0014 - 4 Bolt Caster Swivel RA-GCM-0015 - Torch Complete Assembly...
- Page 5 RC-GCM-0068 - Regulator and Hose - 0 - 30 Psi with RC-GCM-0016 - Torch for Melter Applicator with Valve Pressure Gauge (10’ Hose) RC-STK-0001 - Flint Striker...
-
Page 6: Front Casters
• Assembly Instructions 1. Front Casters RK-FAS-0050 RA-WHL-0005... -
Page 7: Rear Wheels
2. Rear Wheels RK-FAS-0041 RA-WHL-0008 3. Shoe Insert Shoe and secure with Quick Release Pin... - Page 8 4. Shoe Control Arm Insert Shoe control arm in the Guide, Handle End First Secure shoe Control Arm with Cotter Pin...
-
Page 9: Propane Tank
5. Propane Tank Secure with Chain Propane Cylinder Not Included... - Page 10 6. Connect Regulator 7. Install Torch...
- Page 11 8. Agitation Hoe Mounting Bracket on Handle Bars...
- Page 12 • Operation Before beginning please check the following: 1. You have read and understand all warnings on page 2. 2. You are using a new and full propane cylinder (use of a used cylinder can lead to reduced performance or equipment failure).
- Page 13 • Operation How to Light your Torch Fully CLOSE the regulator valve by turning the knob on the regulator COUNTERCLOCKWISE Fully OPEN the propane cylinder by turning the valve COUNTERCLOCKWISE.
- Page 14 Remove the torch from the machine and turn the regulator knob two turns CLOCKWISE so that the propane starts to flow. Ignite the torch. Return the torch to the torch holder.
- Page 15 Adjust the flame by turning the knob on the regulator. ⚠ Never exceed the manufacturer's recommended material maximum temperature.
