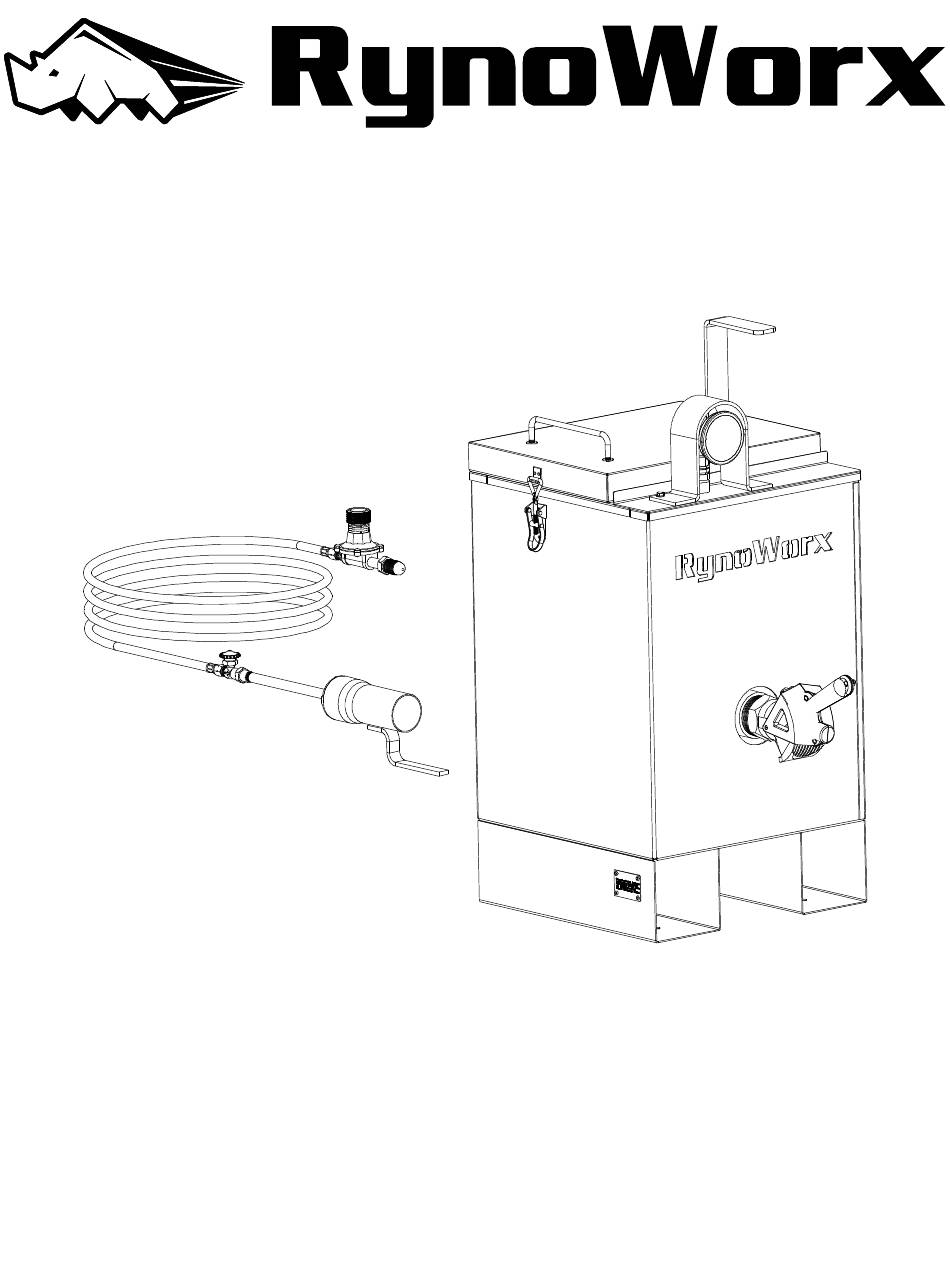

- Page 1 Operator's Manual Model: RY10MK MPN: RA-MLT-0012 10 Gallon Melter Kettle Torch Model For Technical Support Please Visit www.RynoWorx.com or Call 1-855-382-9611...
- Page 2 ⚠ Before servicing, make sure the unit is fully cooled and the liquid propane cylinder is disconnected. ⚠ Only genuine RynoWorx replacement parts should be used for any replacements or repairs. Do not attempt to modify or alter this product in any way.
- Page 3 Thermometer - 14" Probe - Shock Proof Liquid Filled RC-FAB-0010 Thermometer Guard Bracket RA-BAS-0048 Removable Lid Handle Assembly - 10MK RC-FAB-0101 Melter Lid Support Slider RC-FAB-0108 Agitation Sweep Bar - RY10MK RA-GCM-0015 Torch Complete Assembly MPN: Model: RA-MLT-0012 RY10MK Description:...
- Page 4 • Replacement Parts RA-GCM-0010 - Thermometer - 14" Probe - Shock Proof RA-VLV-0003 - 2" NPT Molasses Valve RA-GCM-0015 - Torch Complete Assembly...
- Page 5 RC-GCM-0068 - Regulator and Hose - 0 - 30 Psi with RC-GCM-0016 - Torch for Melter Applicator with Valve Pressure Gauge (10’ Hose) RC-STK-0001 - Flint Striker...
- Page 6 Introduction Forward Thank you very much for purchasing RynoWorx crack maintenance equipment. We pride ourselves in being different from other equipment manufacturers with a relentless focus on innovation, simplicity, and quality. This melter was designed to be used with ‘Direct Fire’ crack sealants only. Please be sure to purchase the correct material to ensure safe and effective operation.
- Page 7 • Assembly Instructions 1) Install the Agitation Bar Position the short side of the agitation bar over the left mounting stud first and then carefully bend the long (handle) side over the right stud. RC-NUT-0022 Thread one locknut on the handle side, sufficient play should be left between the nut and agitation bar to...
- Page 8 2) Install the Lid Handle 3) Install the Lid Support RK-FAS-0045...
- Page 9 4) Install the Thermometer and Guard RK-FAS-0004 Use a wrench to turn the nut at the base of the thermometer, do not turn the thermometer by the dial as excessive force on the thermometer dial can cause damage 5) Install the Lid Latch RK-FAS-0047...
- Page 10 6) Install the Molasses Valve Use a pipe wrench to tighten the valve so that the spout is facing down...
- Page 11 • Operation Guide Before beginning please check the following: 1. You have read and understand all warnings on page 2. 2. You are using new and full propane cylinder (use of a used cylinder can lead to reduced performance or equipment failure).
- Page 12 Remove the torch from the machine and turn the regulator knob two turns CLOCKWISE so that the propane starts to flow. Ignite the torch. Insert the torch to the torch holder.
- Page 13 Adjust the flame by turning the knob on the regulator. ⚠ Never exceed the manufacturer's recommended material maximum temperature.
- Page 14 • Operation Guide Part 2 – Agitating and Monitoring Temperature 1. Never leave melter unattended when the torch is lit. If the flame goes out, promptly turn off the flow of gas; double check that the melter is free and clear of any gas odors before lighting the torch again. 2.
- Page 15 • Periodic Maintenance This melter / applicator requires periodic maintenance before each use and at set intervals in order to ensure it is performing safely and optimally. The list below describes checks and maintenance which are recommended. -Check Propane Tank fuel level, refill as needed. -Inspect regulator, hose, gas connections/ valves, and torch for physical damage or leaks before every use.
- Page 16 • Troubleshooting Guide Below we have provided a common problems and solutions table. Be sure to consult this table should you experience any technical problems. Description of Problem Possible Causes Known Solutions The torch will not ignite or 1) The fuel level could be too low 2) 1) Check and refill your fuel tank 2) the torch will not stay lit The propane cylinder valve could be...
