- Page 2 WARNING! The Dash Cam must not be fitted in a position which obscures the driver’s view of the road ahead. Depending on the country of use, recordings made with this device may be subject to Data Protection Laws. Ensure these are complied with. If the dash cam is to be used in a commercial environment e.g.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PACKAGE CONTENTS RANGE FEATURES CONTROLS 5‐8 GETTING STARTED FORMATTING MEMORY CARD INSTALL POWER CABLE INSTALL DASH CAM MOUNT 10‐11 INSTALL REAR CAMERA 11‐12 INSTALLING USING 12‐19 MODES VIDEO PHOTO PLAYBACK 21‐22 SETTINGS 22‐25 TROUBLESHOOTING... -

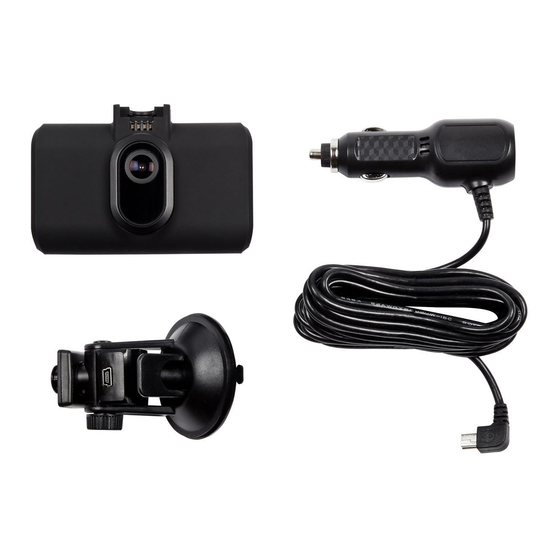

Page 4: Package Contents
PACKAGE CONTENTS RDC10 / RDC20 / RDC30 RDC40 RDC50... -
Page 5: Range Features
RANGE FEATURES RDCR RDC10 RDC20 RDC3O RDC4O Resolution 1080p 1080p 1440p 720p 720p Frames per second 30.30 Viewing angle Still Camera Resoluti 12MP 32GB 32GB 32GB 32GB Memory Card Size 2" 3" Screen Size 2.7’’ Backup battery Lithium Lithium Lithium... -
Page 6: Controls
CONTROLS RDC10 SUCTION CUP Ensure glass is clean and dirt free before mounting (when removing pull rubber tab) MOUNT CLAMP Ensure suction cup is pressed firm against glass before clamping down (pull to release when removing dash cam) MINI USB SOCKET... - Page 7 RDC20 & RDC30 SUCTION CUP Ensure glass is clean and dirt free before mounting (when removing pull rubber tab) MOUNT CLAMP Ensure suction cup is pressed firm against glass before clamping down (pull to release when removing dash cam) MINI USB SOCKET Connect the supplied 12V power cable here MOUNT ADJUSTMENT Use to adjust camera angle accordingly...
- Page 8 RDC40 WARNING: BEFORE FIRST USE, CONNECT TO APP (SEE PAGE 12-19) REAR CAMERA (RDCR) CONNECTION (RDCC40 ONLY) Plug rear camera (RDCR) cable into here RESET (recommend suitable size paperclip) Use small pointy object to insert and press once to hard reset the dash cam SNAPSHOT BUTTON / POWER BUTTON Press once to take snapshot during recording / Hold to switch ON/OFF MEMORY CARD SLOT...
- Page 9 RDC50 (Designed for use with RDC30 & RDC40) DIRECT TO WINDOW ADHESIVE MOUNT Ensure glass is clean and dirt free before mounting ADJUSTABLE MOUNT Adjust accordingly to fit the slope of rear window POWER AND VIDEO CABLE This allows connection to front mounted dash cam...
-
Page 10: Getting Started
GETTING STARTED RDC10 – RDC20 – RDC30 – RDC40 To capture video and photos, you need a microSD card (sold separately). MicroSD CARD We recommend the use of the following MicroSD card for optimum performance‐ Minimum Class 10 U1 16GB/32GB 30mbs (Class 10 U3 for Optimum Performance) NOTICE: Use care when handling memory cards. -
Page 11: Install Power Cable
Connect power adapter plug to vehicle 12/24 volt accessory socket INSTALLING DASH CAM MOUNT RDC10 / RDC20 / RDC30 Ensure removal of plastic sticker from suction mount Clean area for mounting to ensure it is dust/grease free... - Page 12 RDC40 Check placement on windscreen before fitting. Ensure camera isn’t causing any obstructions to the driver’s view of the road and also ensure the power cable can be easily inserted into mount. Please ensure you have Dash Cam in correct position before applying adhesive mount to windscreen. Clean area for mounting to ensure it is dust/grease free Ensure removal of plastic film from adhesive pad Push adhesive pad onto window in required mounting location...
- Page 13 INSTALLING APP Download RING APP to your mobile device from the Apple© App Store© or the Google Play Store RING DC / RING DASH CAM / RING DASHCAM / Follow the APP's on‐screen instructions to connect your camera...
- Page 14 The Ring app lets you control your camera remotely using a smartphone or tablet. Features include live preview, playback and downloading of content. CONNECTING TO THE APP FOR THE FIRST TIME Dash cam default password 66668888 (For RDC10/20/30/40) Ensure you are within 2metre range of your dash cam Switch mobile device Wi‐Fi ON...
-
Page 15: App
1. DASH CAM VIDEOS Select this option to view the recordings that are currently on your dash cam Select to view Video/Picture/Locked files (G‐Sensor triggered files) Press to download your selected file from your dash Once downloaded your selected video you can then playback through the APP. - Page 16 Screenshot your mobile phone when in the Ring APP Press pause and then Select to delete current file select the snapshot button to take a picture Selecting the share button will allow you to open up all the APP’s installed on your mobile device to allow sharing.
-
Page 17: Using
2. DOWNLOADED RECORDINGS All files downloaded from the dash cam will be shown under DOWNLOADED RECORDINGS In this menu you can view, share and delete your saved files 3. JOURNEY INFO (RDC30 & RDC40 ONLY) Using the GPS feature built into the RDC30 & RDC40 you can see relevant journey information such as time travelled and distance... - Page 18 4. SETTINGS The settings menu allows you to fully setup your dash cam from the Ring APP Screenshot your mobile phone when in the Ring APP Change the Adjust Video and length or image quality to recording achieve longer time. Default...
- Page 19 5. RING DC Selecting RING DC from the main menu allows you to go into live view mode. From the Live View mode you can: View the live image as being seen by the dash cam Start/stop recording (Press record button to start or stop recording live with dash...
- Page 20 Cc vvxcvddvvvv 6. TROUBLESHOOTING During use of your dash cam if you have any issues check this screen for FAQ’s on how to resolve any problems. (see user manual Page 26)
-
Page 21: Modes
MODES Your RDC contains three camera modes: Video, Photo, and Playback VIDEO Video mode allows constant recording of selectable sizes OFF, 3 minutes and 5 minutes PHOTO Photo mode allows snapshot image PLAYBACK Playback mode allows playback of footage captured by the dash cam VIDEO RESOLUTION The default setting will be set at the highest your RDC supports... -
Page 22: Playback
Playback VIDEO AND PHOTO You can play back your content on the Dash Cam’s display (RDC10 / RDC20/ RDC30) You can also play back content by inserting the microSD (with SD card adapter) card directly into a device, such as a computer or compatible TV. With this method, playback resolution depends on the resolution of the device and its ability to play back that resolution. - Page 23 VIEWING VIDEOS AND PHOTOS FROM YOUR DASH CAM USING APP (RDC40) Connect your mobile device to dash cam Select DASH CAM FILES Click on file you wish to view Press PLAY icon to start playback COMPUTER PLAYBACK To download files to a computer using a card reader (sold separately). Connect the card reader to the computer, then insert the microSD card.
-
Page 24: Settings
Set the date & time on the dash cam by using the up and down buttons to change the options. Press MODE to switch between Year, Month and Day (MODE long press RDC10 only). Press the REC/OK button to save the changes To change this, select Menu (Setup) >... - Page 25 To view the current firmware version on your dash cam, select Menu (Setup)> Firmware Wi-Fi (see Page 12-19) Allows connection of dash cam to mobile device via RING DC APP Please refer to APP using section for setup procedure PARKING MODE (RDC20 / RDC30 / RDC40 only)
-
Page 26: Settings
GPS LOCATION STAMP (RDC30 /RDC40 only) This setting allows additional feature benefits so isn’t able to be switched off by the user SCREENSAVER MODE (RDC10/RDC20/RDC30 only) This setting allows you to switch the screen off when not required. Short press of power button... -
Page 27: Troubleshooting
Video Image is blurred Protective sticker on lens Remove film before use If in any doubt or for more help and guidance on the installation and operation of your Ring Dash Cam please do not hesitate to contact our or at technical helpline... - Page 28 Information on Waste Disposal for Consumers of Electrical & Electronic Equipment This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked waste products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
