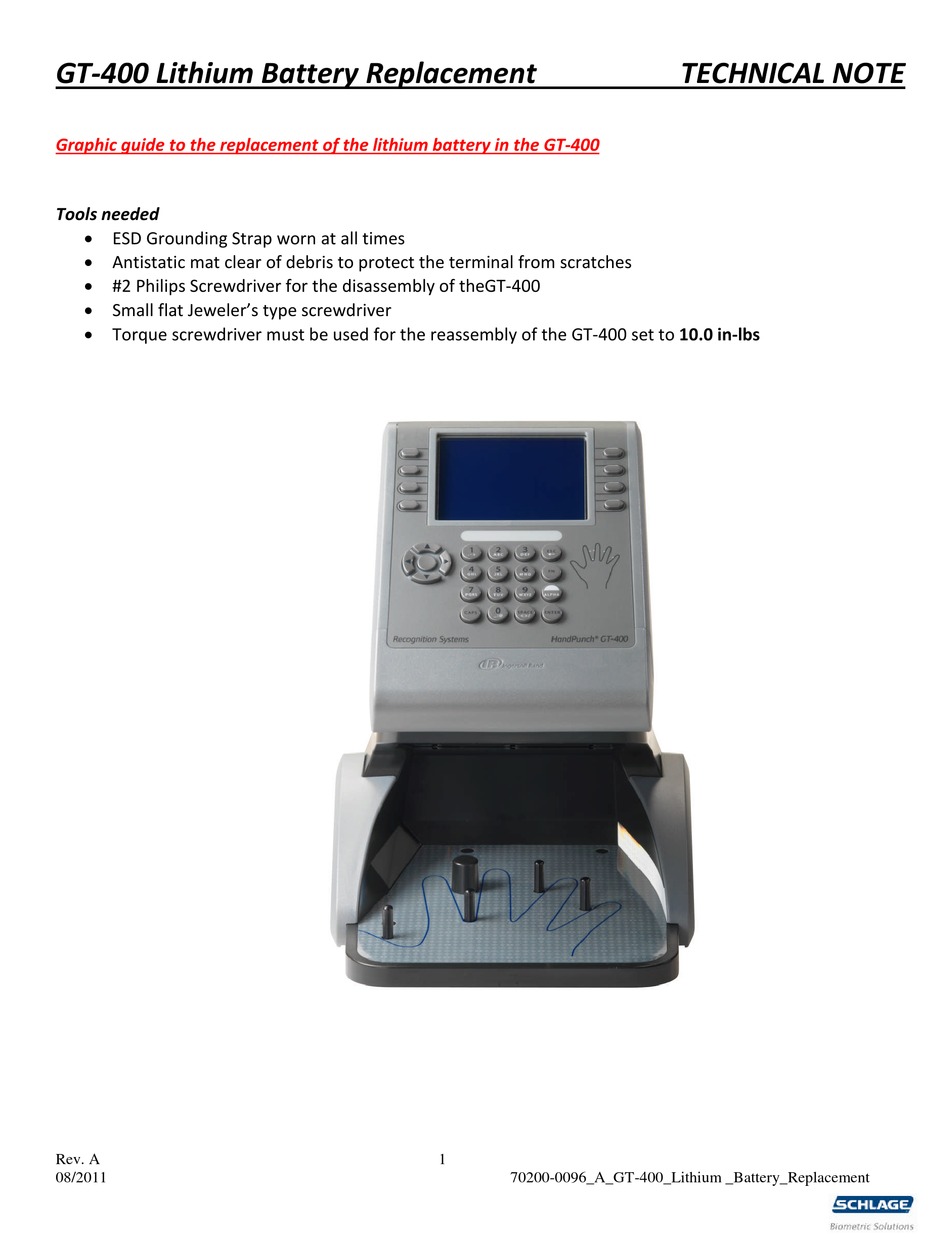

GT-400 Lithium Battery Replacement
Graphic guide to the replacement of the lithium battery in the GT-400
Tools needed
ESD Grounding Strap worn at all times
Antistatic mat clear of debris to protect the terminal from scratches
#2 Philips Screwdriver for the disassembly of theGT-400
Small flat Jeweler's type screwdriver
Torque screwdriver must be used for the reassembly of the GT-400 set to 10.0 in-lbs
Rev. A
08/2011
1
70200-0096_A_GT-400_Lithium _Battery_Replacement
TECHNICAL NOTE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Schlage GT-400
Summary of Contents for Schlage GT-400
- Page 1 Antistatic mat clear of debris to protect the terminal from scratches #2 Philips Screwdriver for the disassembly of theGT-400 Small flat Jeweler’s type screwdriver Torque screwdriver must be used for the reassembly of the GT-400 set to 10.0 in-lbs Rev. A 08/2011...
- Page 2 TECHNICAL NOTE Removal of the back plate Lay the GT-400 terminal face down of a clean antistatic mat to protect the surface from scratches and the PCBs from ESD damage. Remove the two screws highlighted and set aside for reuse.
- Page 3 GT-400 Lithium Battery Replacement TECHNICAL NOTE Removal of the IO board With the terminal still laying face down and while wearing the ESD ground strap hold the IO board by the edges and gently pull the board towards you and set aside.
- Page 4 GT-400 Lithium Battery Replacement TECHNICAL NOTE Removal of the Power board Remove the two screws highlighted and set aside for reuse. Hold the power board by the edges and gently pull the board towards you and set aside. Rev. A...
- Page 5 GT-400 Lithium Battery Replacement TECHNICAL NOTE Removal of the back plate Remove the two screws highlighted and set aside for reuse. Rotate the top of the back plate towards Rev. A 08/2011 70200-0096_A_GT-400_Lithium _Battery_Replacement...
- Page 6 GT-400 Lithium Battery Replacement TECHNICAL NOTE Remove the tamper switch connector from the main board. Do not pull by the wires but depress the tab to release the connector. Rev. A 08/2011 70200-0096_A_GT-400_Lithium _Battery_Replacement...
- Page 7 GT-400 Lithium Battery Replacement TECHNICAL NOTE Removal of the lithium battery Carefully place the terminal on its top panel so that you are looking at the main board. The lithium battery is located above the SD Card. 1. Place a finger on top of the lithium battery so that it will not pop out and fall forward, into the top panel, when the battery is released.
- Page 8 GT-400 Lithium Battery Replacement TECHNICAL NOTE Installation of the lithium battery Spring There are two types of battery holder that may be installed on the main board; one with visible spring keeps and one without. The installation of the battery is the same either way.
- Page 9 GT-400 Lithium Battery Replacement TECHNICAL NOTE Routing the battery cable if there is a back up battery installed Make sure that the battery cable is routed around the camera compartment as shown in the image above. The area highlighted in yellow needs special attention when installin the back plate, the wires here can be easily pinched.
- Page 10 GT-400 Lithium Battery Replacement TECHNICAL NOTE Connecting the tamper switch Reconnect the tamper switch cable. Rev. A 08/2011 70200-0096_A_GT-400_Lithium _Battery_Replacement...
- Page 11 GT-400 Lithium Battery Replacement TECHNICAL NOTE Reinstalling the back plate Start with setting the back plate into the battery compartment and start rotating the back plate towards the top. If there is a backup battery installed, make sure that the BB-300 cable is not getting pinched in the lower right hand cable.
- Page 12 GT-400 Lithium Battery Replacement TECHNICAL NOTE Installing back plate screws This point forward use the torque screwdriver set to 10.0 in-lbs Before screwing down the back plate make sure that neither the BB-300 cable nor the white camera cable will be pinched.
- Page 13 GT-400 Lithium Battery Replacement TECHNICAL NOTE Reinstalling the power board Making sure your ground strap is on. Align the 2 x 25 pin connector and header and gently mate the two boards. Rev. A 08/2011 70200-0096_A_GT-400_Lithium _Battery_Replacement...
- Page 14 GT-400 Lithium Battery Replacement TECHNICAL NOTE Secure the power board to the unit using the two screws shown in the image below. Rev. A 08/2011 70200-0096_A_GT-400_Lithium _Battery_Replacement...
- Page 15 GT-400 Lithium Battery Replacement TECHNICAL NOTE Reinstalling the IO board Align the IO’s 2 x 25 pin header and connector and gently press them together making sure that it is installed. Secure the IO board to the unit with the screws shown in the image below.
- Page 16 GT-400 Lithium Battery Replacement TECHNICAL NOTE Plugging in the battery backup cable if installed Replacement complete Rev. A 08/2011 70200-0096_A_GT-400_Lithium _Battery_Replacement...
