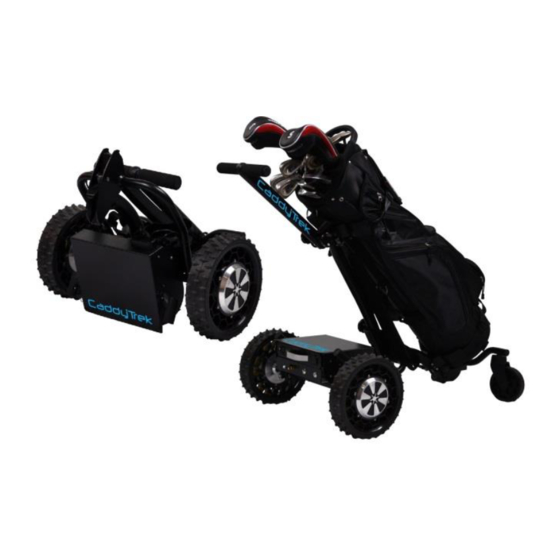

R2 S-Series
User Manual
SS-7031-UD
Rev. 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2 S-Series and is the answer not in the manual?

Questions and answers

Related Manuals for caddytrek R2 S-Series

Summary of Contents for caddytrek R2 S-Series

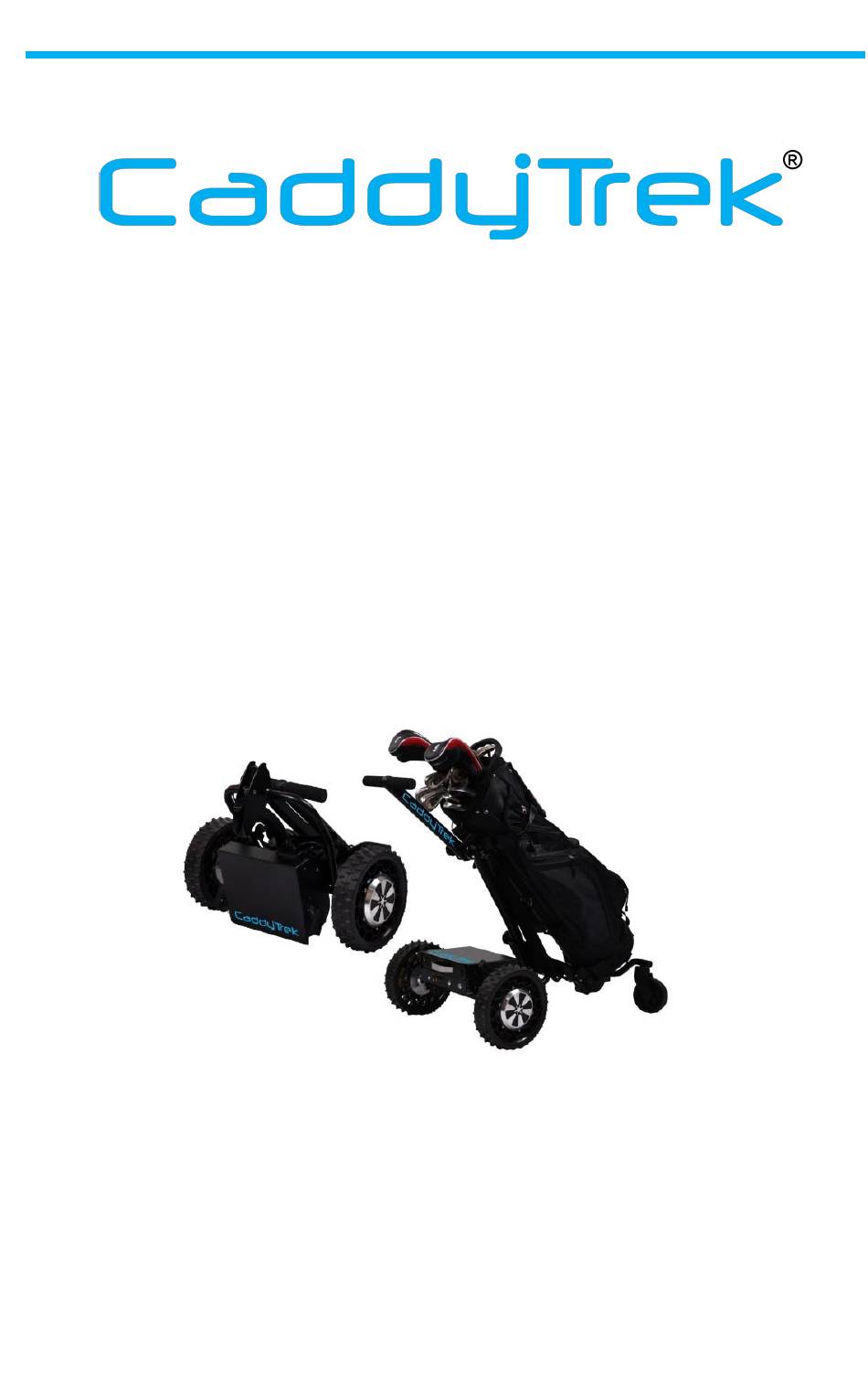

  • Page 1 R2 S-Series User Manual SS-7031-UD Rev. 1.02...
  • Page 2 IMPORTANT SAFETY INFORMATION This symbol is to alert you to important safety information about the CaddyTrek Lithium-Ion battery. Please read carefully. CAUTION To prevent risk of fire or battery explosion, keep away from ignition sources, heat and flame. Avoid mechanical or electrical abuse.

  • Page 3: Table Of Contents

    Charging the Battery  Checking Battery Power Levels  Using the Battery Chargers Unit Operation  Components Box Info  Powering Up the CaddyTrek  Using the Handset  Handset Battery and Charger  Additional Handset Commands  Recalibrating Handset ...

  • Page 4: Getting Started

    ETTING TARTED What’s included in the box? The CaddyTrek is shipped with the following items:  Main Battery  Main Battery Charger  Handset  Handset Battery  Handset Battery Charger  USB “Firmware Cable” Note: The firmware cable is used when updating firmware as needed.

  • Page 5: Charging The Battery

    ETTING TARTED Charging the Battery  Charge the main battery and handset for at least 8 hours before using. Checking battery level To check the battery level, press the RED button on the battery. 3-green lights: The battery is fully charged. 2-green lights: The battery is 50-75% charged (recommend charging) 1-green light: The battery is less than 50% charged (must be charged)

  • Page 6: Unit Operation

    PERATION Unit Information Battery power level indicator Charging Port Serial Number Power Button Speaker Powering up the unit 1. Power on the unit. Power Button 2. Position yourself behind the large wheels, then power on the handset. 3. You will hear 2 short beeps once communication is established. 4.

  • Page 7: Using The Handset

    PERATION Handset battery and charger The handset comes with a Lithium Ion 4.2V battery and battery charger. The battery takes about 2 hours for a full charge and will last about 30 hours. Using the Handset  Press the Forward, Reverse, Left or Right directional buttons to move the unit in the desired direction.

  • Page 8: Additional Handset Commands

    PERATION Additional Handset Commands Note: All codes must be done from (SB) mode. The unit powers up in (SB) mode and returns to (SB) mode upon exiting any other mode. 1. Mute the handset: a. Press: DOWN, DOWN, DOWN, DOWN, DOWN, DOWN, DOWN, STOP b.

  • Page 9: Handset Pairing And Re-Synching

    PERATION Handset Pairing and Re-Synching There may be times when the handset will lose connection to the unit, usually after either replacing the handset or battery with either a new or replacement one. Should the handset and unit lose connection with each other, they will need to be re-synched.

  • Page 10: Standby Mode

    PERATION Standby (SB) Mode SB mode is a starting point for all other modes. When the unit is turned on, the unit will automatically enter into SB mode and wait for further instruction from the user. While in SB mode: 1.

  • Page 11: Precautions

    III. RECAUTIONS Wide Open Spaces CaddyTrek is designed for use in wide open spaces only. Do not operate CaddyTrek in enclosed or confined areas. Abnormal or erratic behavior can be caused by radio frequency signals interference Wi-Fi or similar electronic signals.

  • Page 12: Maintenance

    AINTENANCE Introduction This chapter is designed to educate users on how to keep their CaddyTrek unit in ideal operating condition. Though the frequency to perform maintenance tasks are recommended, it may be necessary to perform certain procedures more or less frequently depending on use.
  • Page 13 AINTENANCE 2. Lubrication Spray a silicon bearing lubricant directly on the caster wheel bearing to prevent it from seizing. It is recommended to remove the caster wheel to apply the lubricant, so do this while you are cleaning the wheel. Just be sure to wipe the bearing clean before applying lubricant.
  • Page 14 AINTENANCE Handset 1. Practice cleanliness with your handset. A damp cloth works best for cleaning. Keep your handset free from dirt, moisture and impacts. 2. Unmaintained handsets can cause your unit to become unresponsive to commands or behave strangely. Test and press each button for a tactile feel and make sure it is operational.

  • Page 15: Warranty Registration

    How to Register Your Unit (change photo) 1. Locate your serial number (see photo on page 1). 2. Log on to www.caddytrek.com 3. Click on the “Support” tab 4. Click on the drop down box and select “warranty registration.” 5. User Profile a.
  • Page 16 PDATE What is a Firmware Update? When new software and/or new features are added to the CaddyTrek R2 and S-Series, you can install them on your unit by using a firmware cable (included with unit at time of purchase). 1. System Requirements...

  • Page 17: Firmware Update / Download

    IRMWARE PDATE 4. Update the Firmware a. Power on the unit BEFORE continuing. b. From host PC, click on the file named "CTII_Programming.exe." The dialogue should look like this: Note: If you receive a warning message “Windows protected your pc”, it’s OK. Click on “more info”...
  • Page 18 To change the RF signal, follow these steps:  Turn CaddyTrek on  Click on desired RF signal (Yellow first)  You will hear a beep beep  Turn CaddyTrek off and on  The RF signal is now set Pg. 15...

  • Page 19: Frequently Asked Questions

    How fast will the unit move? CaddyTrek can travel up to 4 mph. The unit will start off slowly, however, you can speed the unit by pressing and holding down the forward directional button on the handset.
  • Page 20 Who can I contact about any issues concerning my cart? For technical problems with your cart, contact customer service at 702- 982-6598 x2 or x4. You can also email us at support@caddytrek.com. How often should I charge my cart? Charge after a full round or when indicator lights are flashing with two green lights.

  • Page 21: Warranty And Return Policies

     Repair the defect at no charge, using new or refurbished parts in cases where service work is required Customer’s Warranty Obligations  Customers must register their cart immediately for warranty and service work at https://www.caddytrek.com/services/  Customers must keep the original shipping box including all packaging material supplied with it.
  • Page 22 Before a refund can be issued, FTR Systems reserves the right to make a final assessment to determine the condition of the returned item(s) and to refuse the return if guidelines listed above are not met. CaddyTrek Warranty, Return and Shipping Policies You can view all our policies at https://www.caddytrek.com/policies/...

  • Page 23: Specifications

    PECIFICATIONS Remote Control Range up to 55 yd / 50 m Motor Dual motors total 440 watts Drive: Remote: Rear wheel drive Battery Type Lithium-ion Battery: 36V 6.6Ah Weight: 6 lbs / 2.7 kg Average Charge Time: 6 hours Lifetime: >500 cycles Warranty: 1 year Battery Charger: Input: 100/240V AC...
  • Page 24 FTR Systems, Inc., CaddyTrek 6402 Montessouri Street Las Vegas, NV 89113 Phone: (702) 982-6598 www.caddytrek.com...
