ECOFROG
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the EcoFrog and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecofrog EcoFrog

Summary of Contents for Ecofrog EcoFrog

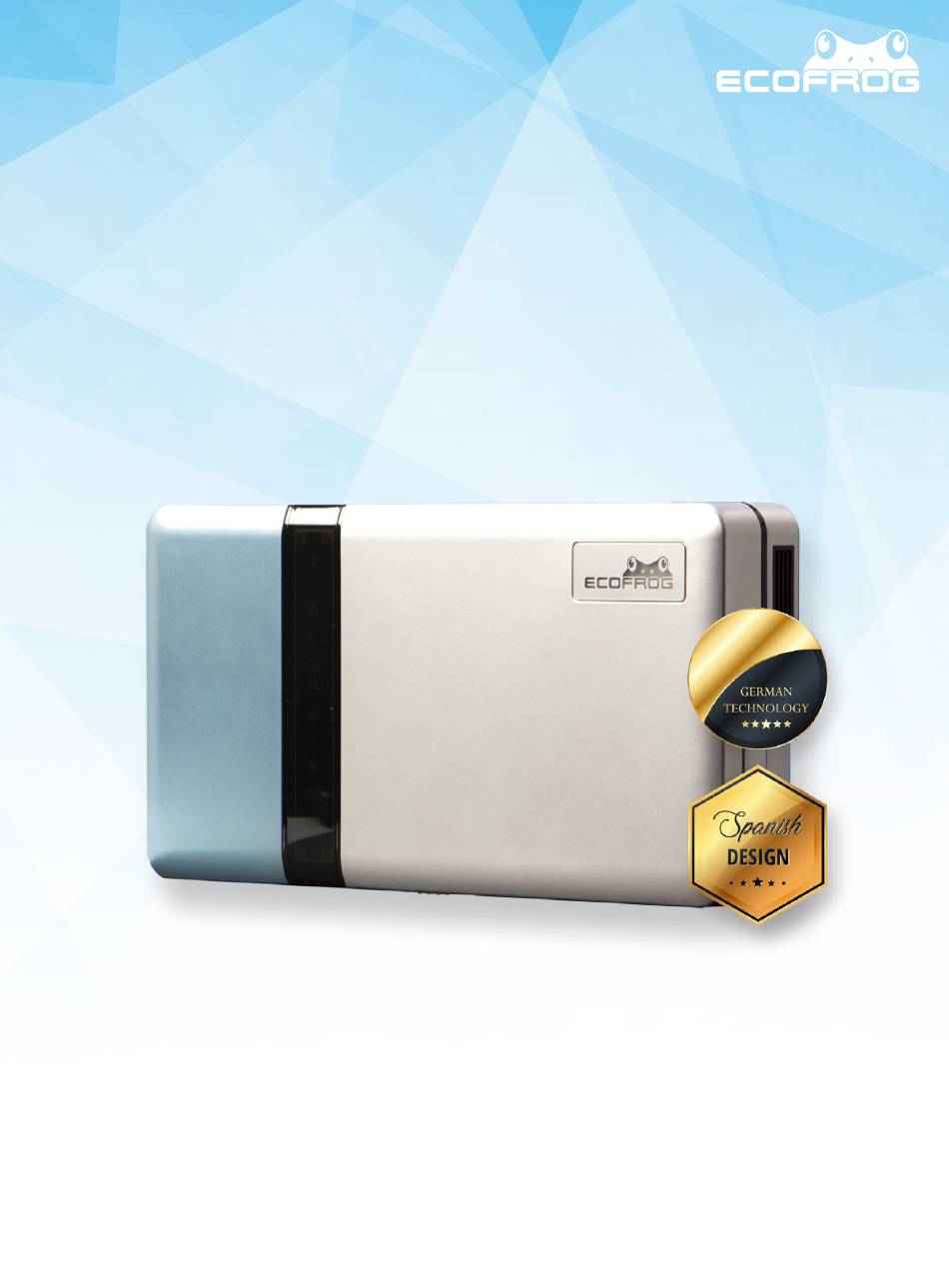

  • Page 1 ECOFROG USER MANUAL...
  • Page 2 Contents • Product use and specifications.........1 • Diagram of the product and package contents.......2 • Use and safety considerations..........3 • Installation requirements............4 Before using the EcoFrog, please read through the user manual thoroughly.

  • Page 3: Product Use And Specifications

    The way that EcoFrog works is easy and convenient. So long as EcoFrog is installed correctly, all that needs to be done is to operate the washing machine following the manufacturer’s instructions.

  • Page 4: Diagram Of The Product And Package Contents

    Mounting bracket Mounting bracket slots Ventilation Mains supply socket Ozone level touch key You will find the following articles in the product box: · EcoFrog · Washing hose · Quick-start guide · Mounting screws · Mounting bracket · Wall plugs...

  • Page 5: Use And Safety Considerations

    Do not install EcoFrog vertically or at an angle. EcoFrog is designed for domestic use although it is possible to use it in a business, commercial or industrial context as a natural disinfectant to clean surfaces and for use with washing machines with a capacity up to 10 kg.

  • Page 6: Installation Requirements

    ECOFROG User Manual Installation requirements Electrical Requirements EcoFrog requires 120 volts of power at 60 Hz in a 15 amp fuse or circuit breaker. NEVER use an extension cable or any kind of power adaptor that is not provided by EcoFrog.
  • Page 7 5. Remove the existing hose from the cold water tap but keep it connected to the washing machine. Connect the existing hose to the area marked “OUTLET” on the EcoFrog. Do not tighten it too hard. But ensure that it is securely connected.
  • Page 8 ECOFROG User Manual Indicator light and LED dia- Indicator light The vertical LED bar graph on the casing of your EcoFrog has two operational states. A blue light indicates that the EcoFrog is working correctly. A flashing red light indicates that the ozone generator is not working properly.
  • Page 9 Non-use and care during holiday periods Use the washing machine and EcoFrog only when you are at home. If you go on holiday and are not going to use the washing machine for a long period of time, you should unplug both the washing machine and the EcoFrog and turn off the water supply.
  • Page 10 Do stubborn stains need to be pre-treated? We recommend that you treat stains exactly as you have always done. Using the EcoFrog, stubborn stains must be treated in the same way as before. For everyday dirty clothes, using EcoFrog will allow you to use less detergent or none at all.
  • Page 11 ECOFROG User Manual EcoFrog water is not suitable for drinking or ingesting in any way. Troubleshooting 1. The EcoFrog does not There is a problem with the power source or with the hose. Make sure you check the cables for a secure connection and ensure the hose is correctly connected to the “INLET”...
  • Page 12 1) Make sure you have the right ozone level for the different types of clothing being washed. 2) When using EcoFrog for heavier load washes, make sure that there is no dark or black clothing in direct contact with the water inlet. We recommend placing white clothing directly below the water inlet so that it absorbs the initial concentration of high oxidation.
  • Page 13 ECOFROG User Manual Maintenance Service Internal diagram 1. Inlet 7. Power adaptor 2. Flow switch 8. Control module 3. Air sensor 9. Mixer 4. Venturi Tube 10. Ozone generator 5. Magnetiser 11. Electric air dryer 6. Touch button 12. Outlet...
  • Page 14 The manufacturer, at its discretion, will repair or replace a defective EcoFrog or a part or parts of an EcoFrog covered by the warranty. As a matter of policy regarding the warranty, the manufacturer will not refund the purchase price paid by the Customer.
  • Page 15 Servipro 2.0 Customer Service: 93 114 06 17 - 711 775 199 · · · info@ecofrog.es www.ecofrog.es WARRANTY CARD Customer Name: Telephone No: Address: Model: Serial No: Date of purchase: Name of Agent:...
