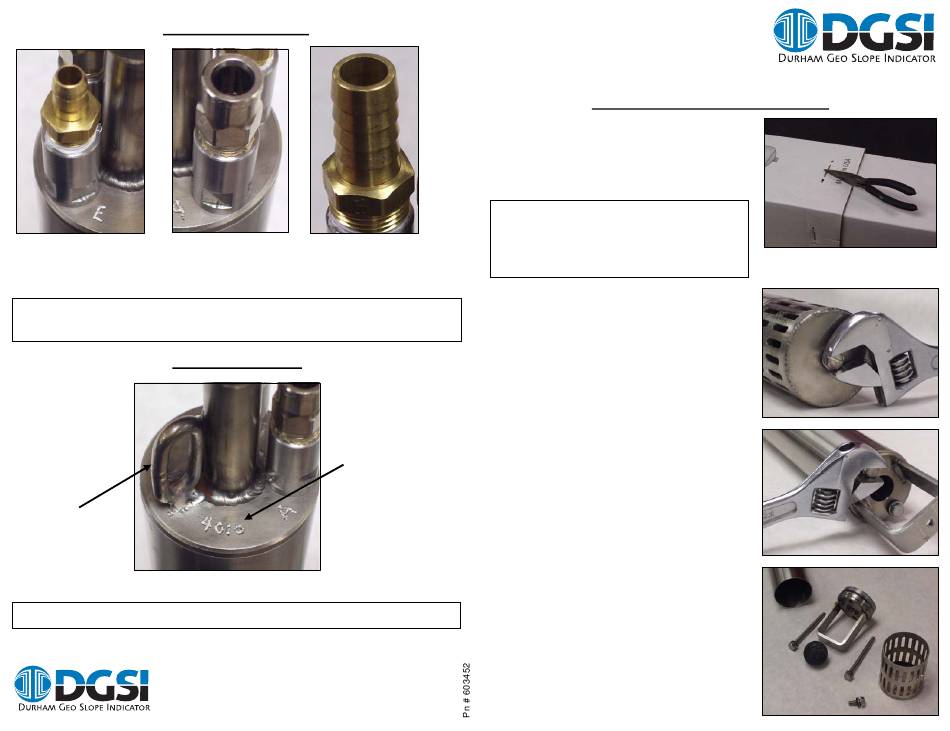

DGSI TR-977 Quick Start Manual

Hose Barb Sizes
Exhaust Hose Barb Air Inlet
3/8 in O.D. x 1/4 in I.D. Push-To-Connect
Nylon Tube. ¼ in O.D. Nylon Tubing
Warning: All tubing or hoses attached to the pump must be secured with
an appropriately sized hose clamp.
Additional Info.
The loop is for
securing the pump
to the restraining
cable.
Additional drawings and parts lists can be found at www.DGSI.info
Durham Geo Slope Indicator
2175 West Park Court
Stone Mountain, GA 30087
USA
Fluid Discharge Hose Barb
1/2 in I.D. Buna-N Hose
When calling for parts
or service, please
include the serial
number of your pump.
+1.770.465.7557
Fax: 770.465.7447
e-mail: solutions@durhamgeo.com
www.DurhamGeo.com
SRX-R PUMPS
Models TR-977
Quick Start Guide V1.2
Unpacking and Preparation
To remove the pump, separate the packing tape
and four staples from the sides of the box, then
pull apart the two box halves.
IMPORTANT! You will need to first remove
the internal packaging before the pump can
be used. A tag will be attached to the pump
alerting you of this.
To remove the internal packaging:
1. Remove the bottom bolt that secures the
screen with either a 5/16 in socket or an
adjustable wrench.
2. Remove the two bolts from the bottom
valve seat using either a 5/16 in socket or
an adjustable wrench.
3. Remove the bottom valve seat and check-ball.
