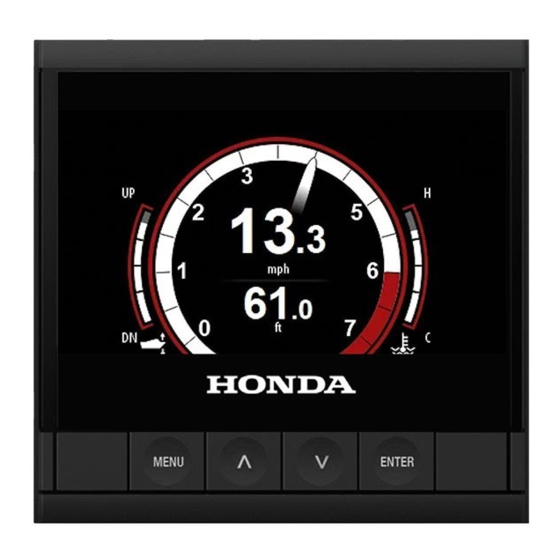

Honda HD-4 Gauge Setup
Fuel Gauge Management
The default fuel screen for Honda HD-4 gauge is
preprogrammed to use a Fuel Data Manager, which provides
key features (Fuel Used: Trip, Seasonal, Since last fill (virtual
tank) and Fuel Range) for the detail-oriented boater.
If a Fuel Data Manager is not installed, the default gauge will
display an empty fuel level and no data for Fuel Used.
However, a screen can be created showing fuel level (using
fluid level sensor) at actual tank and fuel consumption rate.
Follow the PROCEDURE beginning on page 2 to create a
page that displays Fuel Rate and Fuel Level.
If you are not comfortable resetting the gauge following the
information below, contact an authorized Honda Marine
dealer for assistance. Visit
near you, or call us at 770-497-6400, option 6.
RECOMMENDED SETTINGS
Honda recommends the following settings for replacing the
default screen:
GPS
• Left side bar: Fuel level adapter (uses fuel tank sending
unit 1-4)
• Top middle: Fuel rate (Vessel fuel rate)
• Bottom middle: ECO GPS mile/gallon (Vessel fuel
economy GPS)
• Right side bar: Trim (Engine)
Without GPS
• Left side bar: Fuel level adapter (uses fuel tank sending
unit 1-4)
• Top middle: Fuel rate (Vessel fuel rate)
• Bottom middle: Fuel remaining gallons (Fuel tank)
• Right side bar: Trim (Engine)
CONTENTS
PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disable the Standard Fuel Economy Screen . . . . . . . .
Replace an Unused Page . . . . . . . . . . . . . . . . . . . . . .
Configure the New Page . . . . . . . . . . . . . . . . . . . . . . .
© 2018 American Honda Motor Co., Inc.—All rights reserved
First Issue Date: June 2018
marine.honda.com
to find a dealer
Default Screen
2
2
5
7
Page 1 of 18
PCI54882.2018.06
Advertisement
Related Manuals for HONDA marine HD-4
Summary of Contents for HONDA marine HD-4
-
Page 1: Recommended Settings
Honda HD-4 Gauge Setup Fuel Gauge Management The default fuel screen for Honda HD-4 gauge is preprogrammed to use a Fuel Data Manager, which provides key features (Fuel Used: Trip, Seasonal, Since last fill (virtual tank) and Fuel Range) for the detail-oriented boater. - Page 2 NOTE: The screens may vary based on the equipment installed on your NMEA network. For more details, see the Honda HD-4 Color Display User Manual. An electronic version of the user’s manual is available on marine.honda.com, in the Service & Support tab under Owner’s Manuals.
- Page 3 Press the ENTER key to display the Pages menu. Press the ENTER key to display the list of Pages. Press the down arrow key until Fuel economy is highlighted. © 2018 American Honda Motor Co., Inc.—All rights reserved Page 3 of 18 First Issue Date: June 2018 PCI54882.2018.06...
- Page 4 Press the ENTER key to display Page Options. Press the ENTER key to uncheck (disable) Fuel economy. Press the MENU key to return to the list of Pages. © 2018 American Honda Motor Co., Inc.—All rights reserved Page 4 of 18 First Issue Date: June 2018 PCI54882.2018.06...
- Page 5 Replace an Unused Page Next, replace an unused page with a 2 x 2 bars grid template page that can be customized. Press the down arrow key until the second Motoring is highlighted. Note:In this procedure, the second Motoring page (item 4) will be replaced.
- Page 6 Press the ENTER key to display the Replace Page list. Press the down arrow key until 2x2 bars grid (with RPM) is highlighted. Note: Be sure to select the 2x2 bars grid (with RPM) template, not the 2x2 grid (with RPM) template. Press the ENTER key to display the list of Pages.
- Page 7 Press the MENU key until the main screen displays. Configure the New Page In this section, you will configure the new 2x2 bars grid (with RPM) page to display the following information: A. Fuel Level - left side bar graph (page B.
- Page 8 Press the MENU key to display the menu. Press the ENTER key to select Change data. A. FUEL LEVEL Press the ENTER key to display the menu for the blue bar located on the left side. © 2018 American Honda Motor Co., Inc.—All rights reserved Page 8 of 18 First Issue Date: June 2018 PCI54882.2018.06...
- Page 9 Press the ENTER key to display the Fuel Tank options. Press the down arrow key to highlight Fuel Level. Press the ENTER key to select Fuel Level. (This page does not show a check mark when selected.) The fuel level data will display on the left bar of the 2x2 bars grid (with RPM) page.
- Page 10 B. VESSEL FUEL RATE Press the down arrow key to display a blue box around the top middle data field indicating the field is selected. Press the ENTER key to display the menu. Press the down arrow key until Vessel is highlighted. ©...
- Page 11 Press the ENTER key to display the Vessel options. Press the down arrow key until Vessel fuel rate is highlighted. Press the ENTER key to select Vessel fuel rate. (This page does not show a check mark when selected.) The 2x2 bars grid (with RPM) page displays. ©...
- Page 12 C. FUEL REMAINING (without GPS) Note: If the boat is equipped with GPS, go to C. VESSEL FUEL ECONOMY (with GPS) (page 14). Press the down arrow key to display a blue box around the bottom middle data field indicating the field is selected.
- Page 13 Press the ENTER key to display the Fuel Tank options. Press the down arrow key until Fuel Remaining is highlighted. Press the ENTER key to select Fuel Remaining. (This page does not show a check mark when selected.) The 2x2 bars grid (with RPM) page displays. Proceed to D.
- Page 14 C. VESSEL FUEL ECONOMY (with GPS) Note: If the boat is not equipped with GPS, go to C. VESSEL FUEL RATE (without GPS) (page 10). Press the down arrow key to display a blue box around the bottom middle data field indicating the field is selected.
- Page 15 Press the ENTER key to display the Vessel options. Press the down arrow key until Vessel fuel economy GPS is highlighted. Press the ENTER key to select Vessel fuel economy GPS. (This page does not show a check mark when selected.) The 2x2 bars grid (with RPM) page displays.
- Page 16 D. ENGINE TRIM Press the down arrow key to display a blue bar on the right side of the screen. Press the ENTER key to display the menu. Press the down arrow key until Engine is highlighted. © 2018 American Honda Motor Co., Inc.—All rights reserved Page 16 of 18 First Issue Date: June 2018 PCI54882.2018.06...
- Page 17 Press the ENTER key to display the Engine option. Press the down arrow key until Trim is highlighted. Press the ENTER key to select Trim. (This page does not show a check mark when selected.) The trim data will display on the right bar. ©...
- Page 18 Save the Changes Finally, save the changes you made to the 2x2 bars grid (with RPM) page. Press the Menu key to display the menu. Press the ENTER key to select Save. The main screen displays. The procedure is now complete and the fuel data reads from the fuel tank sensors instead of the “virtual tank”...
