It is very important you read this manual before installation for your
safety and effciency of rhe unit.
Please be advised that all units should be installed by a licensed electrician.
READ AND SAVE THESE INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS

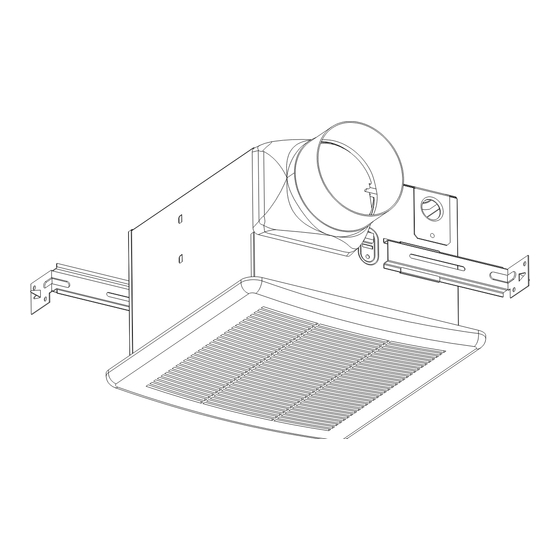

Ventilation Fan
CFA-D90
(BPT16-14E-1)
Advertisement
Table of Contents
Related Manuals for Rupp Air CFA-D90
Summary of Contents for Rupp Air CFA-D90
- Page 1 Ventilation Fan CFA-D90 (BPT16-14E-1) It is very important you read this manual before installation for your safety and effciency of rhe unit. Please be advised that all units should be installed by a licensed electrician. READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Table of Contents Package Contents............6 Table of Contents ............2 Installation.................7 Safety Information............2 Care and Cleaning............10 Safety Information(Continued) Safety Information(Continued) ......... 3 Specifications ..............10 Pre-Installation..............4 Dimensions..............10 Planning For Successful Installation......4 Installation Options............4 Tools Required ............. -
Page 3: Safety Information(Continued)
Safety Information (Continued) WARNING: Not suitable for use as a range hood or IMPORTANT: You may want to consult with a in areas where hazardous or explosive vapors are professional electrician regarding the wiring of your present. ventilation fan. IMPORTANT: Exercise care to not damage WARNING: FOR USE IN NON FIRE-RELATED existing wiring when cutting or drilling into walls or INSTALLATIONS ONLY. -
Page 4: Pre-Installation
Pre-Installation PLANNING FOR SUCCESSFUL INSTALLATION Do not install the ventilation fan in areas where the duct work will require configurations as shown in the When installing the ventilation fan in a new following figure: construction site, install the main body of the fan and duct work during the rough‑in construction of the Short piece of flexible duct helps alignment and building. -
Page 5: Tools Required
Pre-Installation (continued) TOOLS REQUIRED Safety Phillips Electrical Hammer Level goggles screwdriver tape Drill MATERIALS REQUIRED Duct Duct Duct Duct Wire vent clamp tape piping nuts HARDWARE INCLUDED NOTE: Hardware shown to actual size. Part Description Quantity Specification Long wood screw M4×30 Short screw M4×12... -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Fan body Grill Suspension bracket I Suspension bracket II Suspension bracket III... -
Page 7: Installation
Installation Determining joist width □ Measure the distance from the center of the two ceiling joists where you will be installing the ventilation fan. Suspension bracket installation 20 – 24 in. joist installation □ For ceiling joist installations between 20 in. and 24 □... - Page 8 Installation (continued) Connecting wiring from the unit to Flush flange with ceiling board the house Dimension “B” should allow for the thickness of the □ ceiling b oard used in your applicaton.Do not flush WARNING: Make sure that the main power is off. mount to the joist.The flange should b e flush with the ceiling b oard.
- Page 9 Installation (continued) Mounting the grill Connecting the duct Install a circular duct(1) to the outlet and secure □ it with duct tape or clamps to the outlet. □ Use the spring clips to pinch mount and insert the grill (B) into the narrow rectangular slots inside of the fan housing next to the fan motor.
-
Page 10: Care And Cleaning
CAUTION: Do not allow water to enter the motor. housing and dry with a cloth. □ Replace the grill. CAUTION: Do not immerse resin parts in water over 140°F (60°C). Specifications Model No. CFA-D90(BPT16-14E-1) Air direction 90 cfm Voltage 120 V Hertz 60 HZ Duct diameter 4 in.
