FCT

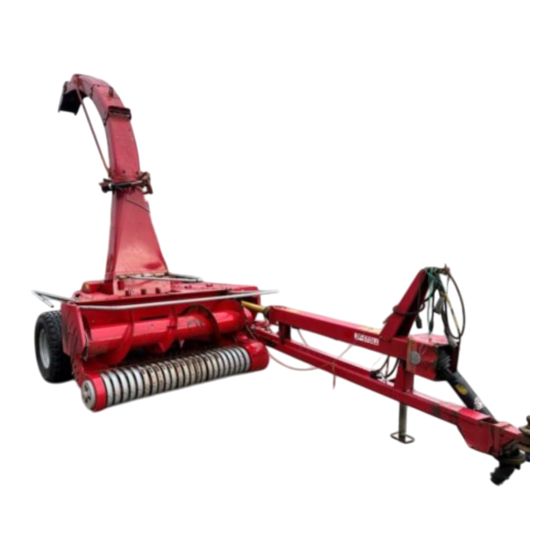

2,4 m Cutting Unit for FCT 900/1050 I 2,4 m Schneidetisch für FCT 900/1050

Lamier 2,4 m pour FCT 900/1050 I 2,4 m Skærebord for FCT 900/1050

Spare Parts Book and Instruction Manual

Ersatzteilkatalog und Betriebsanleitung

Catalogue de pièces et Manuel d'utilisation

Reservedelskatalog og instruktionsbog

2004 11 29

1910110377

2011 07 10

Table of Contents

Summary of Contents for JF-Stoll FCT 900

Page 1 2,4 m Cutting Unit for FCT 900/1050 I 2,4 m Schneidetisch für FCT 900/1050 Lamier 2,4 m pour FCT 900/1050 I 2,4 m Skærebord for FCT 900/1050 Spare Parts Book and Instruction Manual Ersatzteilkatalog und Betriebsanleitung Catalogue de pièces et Manuel d’utilisation...
Page 12 WARRANTY JF-Fabriken - J. Freudendahl A/S, 6400 Sønderborg, Denmark, hereafter called "JF", grants warranty to any buyer of new JF machines from authorized JF-dealers. The warranty covers remedy of material and production faults. This warranty is valid within a year after date of sale to end-user. The warranty is invalidated in the following cases: The machine has been used for other purposes than those described in the instruction manual.
Page 14 Bestiller De reservedele så opgiv venligst maskinens fabrikationsnummer og eventuelt købsår. Det sparer Dem tid, penge og ærgrelser og os unødigt besvær. De kan notere nummeret på Deres maskine her: Nr......... Leveret den ....... / ....20..så har De det ved hånden, når De eventuelt skal bestille reservedele. Fabrikationsnummeret findes indhugget i rammen, som vist på...
Page 15 SPARE PARTS BOOK ERSATZTEILKATALOG CATALOGUE DE PIÈCES RESERVEDELSKATALOG The book is divided into 5 passages: Description of the spare part book. Number key for assembly parts. Number key showing on which figures the spare part numbers can be found. Figure key showing on which figures the parts can be found. Spare parts list.
Page 16 Description of the spare parts book: Beschreibung des Ersatzteilkataloges: Discription du catalogue de pièces: Beskrivelse af reservedelskataloget: The spare parts book is built up as follows: Fig. 01-29 Standard Fig. 50-59 Hub Fig. 30-39 Gear Fig. 60-79 Variation of standard (Accessory) Fig.
Page 17 FCT-9003/1 NUMMERNØGLE FOR MONTERINGSDELE NUMMERSCHLüSSEL FüR MONTAGEZUBEHOR NUMBER KEY FOR ASSEMBLY PARTS LISTE DE PIECES DE MONTAGE VARENUMMER BENÆVNELSE BEZEICHNUNG DESIGNATION ___________________________________________________________________________________________________________ 1165-0158 BESKYTTELSESHÆTTE NR 71 SCHUTZKAPPE NR 71 PROTECTION NR 71 1213-2222 STÅLSÆTSKRUE M8-20 ST. SETSCHRAUBE M8-20 STEEL SET SCREW M8-20 1213-2224 STÅLSÆTSKRUE M8-25 ST.
Page 18 FCT-9003/1 NUMMERNØGLE NUMMERSCHLUSSEL NUMBER KEY LISTE DES NUMEROS VARENUMMER FIGUR POS. VARENUMMER FIGUR POS. VARENUMMER FIGUR POS. VARENUMMER FIGUR POS. ______________________________________________________________________________________________________________________ 1112-0207 | 2060-918X | 3061-680X 1112-0216 | 2060-918X | 3061-684X 1213-2322 | 2060-937X | 3061-690X 1213-3322 5. 1 | 2060-938X | 3061-692A 1213-3423 5.
Page 19 FIGURNØGLE - FIGURSCHLÜSSEL - FIGURE KEY - LISTE DE FIGURES FIGURNØGLE - FIGURSCHLÜSSEL - FIGURE KEY - LISTE DE FIGURES Fig. 1 Fig. 2 îê íí îé Fig. 3 Fig. 4 ëî ëð ëï ìç...
Page 20 Fig. 5 Fig. 5.1 ïç ïè í è ë îï ì îï ç ïì ï î ïè ïç ïë ïî ïé ïë ïì ê ïð ïï ïê ïí îð ïï Fig. 6 Fig. 7 ïé...
Page 22 Fig. 1...
Page 23 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 3065-514X 1 | KONSOL BRACKET | 1213-4324 | KONSOLE | 1220-4323 | 1241-3403 | 3065-511X 1 | GEVINDTAP THREADED PIN | GEWINDZAPFEN | 3061-605A 1 | OVERPLADE UPPER PLATE...
Page 24 Fig. 1...
Page 25 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 2061-634X 1 | SPÆNDEJERN TIGHTENING BAR | SPANNEISEN | 3889-141A 1 | TRANSFER FCT SKÆREBORD TRANSFER FCT CUTTING PLATFORM | TRANSFER FCT SCHNEIDWERK | 3062-696X 1 | RESERVEDELSPAKKE SPARE PARTS...
Page 26 Fig. 2...
Page 27 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 1363-0223 1 | RULLEKÆDE 4 LED ROLLER CHAIN 4 LINKS | 1363-9044 | ROLLKETTE 4 GLIEDER | 1363-0211 1 | RULLEKÆDE 71 LED ROLLER CHAIN 71 LINKS | 1363-9044 | ROLLKETTE 71 GLIEDER...
Page 28 Fig. 2...
Page 29 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 2065-375X 1 | TAP DOWEL | 1252-3101 | ZAPFEN | 3061-640X 1 | VIPPEARM ROCKER ARM | 1251-5401 | SCHWENKARM | 1421-6491 2 | LEJEHUSHALVPART HALF OF BEARING HOUSING | LAGERGEHAUSEHAELTE...
Page 30 Fig. 3...
Page 31 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 2064-449A 1 | KÆDEHJUL 18 TANDS SPROCKET WHEEL 18 TEETH | KETTENRAD 18 ZAEHNE | 1255-4201 4 | LÅSERING 40 MM UDVENDIG SNAP RING 40 MM OUTER | SICHERUNGSRING 40 MM AUSSEN | 1331-4306...
Page 32 Fig. 3...
Page 33 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 3061-690X 1 | TAP DOWEL | 1215-3320 | ZAPFEN | 1220-3321 | 1241-2308 | 1241-4403 | 3061-692A 1 | STRAMMER TIGHTENING | SPANNER | 1331-3302 2 | KUGLELEJE...
Page 34 Fig. 4...
Page 35 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 3061-676X 1 | SKÆRM GUARD | 1213-2224 | SCHUTZ | 1213-3224 | 1213-3324 | 1213-4424 | 1220-2321 | 1220-3321 | 1220-4323 | 1254-2101 | 2061-678X 1 | TAP...
Page 36 Fig. 5...
Page 37 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 <=1910131108 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 2081-010X 1 | DÆKSEL COVER | 1213-3224 | DECKEL | 1242-3221 | 2081-056X 2 | PAKNING GASKET JOINTING | DICHTUNG | 1331-3104 1 | KUGLELEJE 6207 BALL BEARING 6207...
Page 38 Fig. 5.1...
Page 39 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. 5. 1 >=1910131109 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 3081-018A | GEARKASSE GEAR BOX | WINKELGETRIEBE | 1315-9630 1 | HUS FOR GEARKASSE GEARHOUSE | GETRIEBEGEHäUSE | 1315-9631 1 | LEJEHUS BEARING HOUSING | LAGERGEHAUSE...
Page 40 Fig. 6...
Page 41 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 1220-6317 6 | MØTRIK | MUTTER | 1434-0108 6 | TALLERKENFJEDER 20,0-40-2,5 DISC SPRING 20,0-40-2,5 | TELLERFEDER 20,0-40-2,5 | 3081-148A 1 | SKIVE MED HAT DISC HD | TELLERSCHEIBE | 1220-4323...
Page 42 Fig. 6...
Page 43 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 2085-183X 5 | MELLEMHJUL INTERMEDIATE WHEEL | ZWISCHENRAD | 3085-048X 1 | BOLTESÆT SET OF BOLTS | BOLZENSATS...
Page 44 Fig. 7...
Page 45 FCT-9003/1 FCT-900/1050 SKÆREBORD FIG. >=1910110377 HERTIL, DAZU, POS. VARENUMMER ANTAL BENÆVNELSE BEZEICHNUNG DESIGNATION TO THIS, A CECI ______________________________________________________________________________________________________________________ | 3081-073X 1 | STRÅSKILLERKONSOL BRACKET FOR STRAWDIVIDER | HALMTEILERKONSOLE | 3081-153A 1 | SLÆBESKO GUIDE SHOE | GLEITSHUH | 2225-981X 1 | SPLITBOLT Ø16 L=106 COTTER BOLT Ø16 L=106 | 1252-4102 | SPLINTBOLZEN Ø16 L=106...
Page 48 - in the shape of high performance and operational reliability, minimum main- tenance, flexible working possibilities and optimal operating economy. PR60-051A-02 Cut unit FCT 900/1050 - 07.11...
