User Manual
Revision 2.001
English

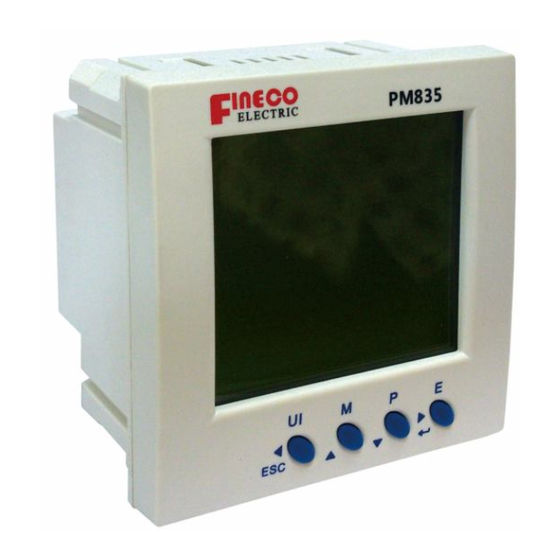

Power quality meter
PM835
Shanghai fangqiu electric Co.,LTD.
Shanghai fangqiu electric CO.,LTD.
Benefits and Main Features
● DIN 96×96 Standard Format
● True-RMS Measuring Parameter
▲ Current(per phase,residual,3 phase
▲ Voltage(L-L,L-N,3-Phase)
▲ Active power(per phase,3-Phase)
▲ Reactive power(per phase,3-Phase)
▲ Apparent Power(per phase,3-Phase)
▲ Power Factor(per phase,3-Phase)
▲ Frequency
● Energy Readings
▲ Import active energy, export active energy ,total active energy
▲ Import reactive energy, export reactive energy ,total reactive energy
▲ Apparent energy
● Demand Reading
▲ Demand Current (per phase present, peak,3 phase)
▲ Demand Voltage(per phase present, peak)
▲ Demand active power(3 phase present, peak,)
▲ Demand reactive power(3 phase present, peak,)
● Power Analysis
▲ Phase/wire Voltage THD, odd/even THD
▲ Phase/wire Voltage
▲ Current THD, odd/even THD
▲ Current
▲ Voltage/current unbalanced
www.fangqiu.com.cn
User Manual PM835
Document code: Fineco835-1-1.1 Revision2.001
nd
th
2
-----60
Harmonic
nd
th
2
-----60
Harmonic
Email:
antsmw@163.com
Advertisement
Related Manuals for Fineco Electric PM835
Summary of Contents for Fineco Electric PM835
- Page 1 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 User Manual Benefits and Main Features Revision 2.001 English ● DIN 96×96 Standard Format ● True-RMS Measuring Parameter ▲ Current(per phase,residual,3 phase Power quality meter ▲ Voltage(L-L,L-N,3-Phase) PM835 ▲ Active power(per phase,3-Phase) ▲ Reactive power(per phase,3-Phase) ▲...
-
Page 2: Digital Input/Output
User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 Index: ▲ Voltage/current sequence component ● Digital input /output ▲ 2 independent digital inputs. Use as pulse accumulators or Digital inputs Safety instruction ▲ 2 independent digital outputs. Use as Modbus controlled outputs or Alam 1.1 Information for Your Own Safety... - Page 3 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 6.4 Set PT , CT 4.Wiring diagrams 5. Display parameter 6.5 Set backlight time 6.6 Set auto display time interval 5.1 Phase volts, line volts, phase amps 5.2 System power factor, frequency, phase power factor, volts 6.7 Clear energy kWh/kvarh...
- Page 4 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 have the proper knowledge about labeling and grounding electrical equipment 1. Safety Instruction and circuits and can do so according to safety and regulatory standards are 1.1 Information for Your Own Safety considered qualified personnel in the manual.
- Page 5 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 • Pass through wire gauge dimension: 0.177" / 4.5mm Installation, maintenance and repair should only be done by qualified personnel. • Continuous current withstand: 20 amps for screw terminated or pass through ...
- Page 6 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 Option D: • 18-60VDC Burden: 10VA max. 2.8 Communication Format • 2 Com Ports (Back and Face Plate) • RS485 Port (Through Back Plate) • Com Port Baud Rate: (1200 to 115200) • Com Port Address: 0-247 •...
- Page 7 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 5. Display parameter Wiring diagrams 5.1 Phase volts, line volts, phase amps. Power up , you will see phase volts picture 1. Label in the back of the meter ，you will see line volts picture 2.
- Page 8 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 Step 4 , short press , you will see picture 7. 5.3 Phase watts, phase var, phase VA , system power. System power Phase power volts Total amps Total factor and factor Harmonic...
- Page 9 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 (picture 13) (picture 14) (picture 15) Step 3 , short press , you will see phase VA picture 10; Step 4 , short press , you will see system power picture 11. 5.4 kWh /kvarh energy...
- Page 10 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 Step 5 , short press , you will see picture 17; Step 6 , short press , you will see picture 18. Step 1 , long press , you will see picture 13 5.6 Max system power factor and Max frequency, Min system power factor...
- Page 11 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 Power system Min Demand Peak hold Demand demand (picture 24) (picture 25) Step 3 , short press , you will see picture 24; (picture 23) Step 4 , short press , you will see picture 25；...
- Page 12 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 long press , you can set relay1 pulse width. Step 4, short press enter picture 33; long press , you can set relay2 type. Output relay 2 type Output relay 2 pulse Pulse or level(picture...
-
Page 13: Long Press
User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 The CT1 can be set 1-9999; The CT2 can be set 1-10. long press you can set Modbus ID1-254; 6.5 Set backlight time (parameter 7) 6.3 Set RS-485 Baud Rate (parameter 2) Backlight time can be set from 5s to 65535s. - Page 14 User Manual PM835 Document code: Fineco835-1-1.1 Revision2.001 6.8 Set password (parameter 11) 6.9 Panel meter information (parameter 12) 6.12 Set volts, amps, power period (parameter 16) 6.10 Individual Harmonic (parameter 14) 7. Technical support Any questions, please contact: TEL: 0086-021-62129691 6.11 Set System connect status (parameter 15)
