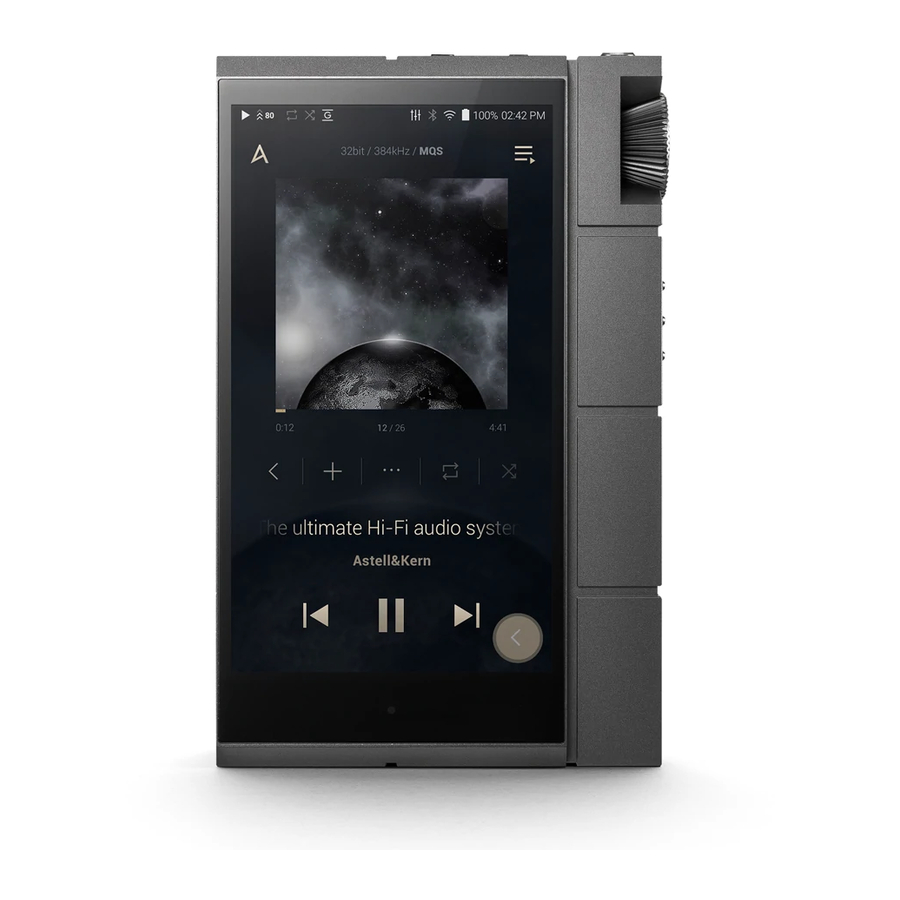

Summary of Contents for Astell & Kern KANN CUBE PPM42
Page 1
User Guide Equalizer Equalizer Setup Setup 1. Press and hold [ ] on the Notification Bar or turn on [Menu - Settings - Equalizer]. 2. Press [PRO EQ] to activate the drop-down menu and select [ + ]. 3. Enter a name for the custom EQ settings and select [SAVE].
Page 2
User Guide 4. Adjust the frequencies up and down according to the user's preferences. 5. The number values at the lower- left corner of the screen can be adjusted for fine-tuning. 6. Press the [Advanced] tab on the top to display PEQ settings screen. Adjust Freq/Gain/Q.
Page 3
User Guide Deleting a Custom Equalizer Setting 1. Press on the drop-down menu at the upper-left corner of the screen to display the list of the saved EQ settings. 2. Press [ ] next to the EQ name to be deleted. 3.
User Guide Safety Device Pre- When a plug is inserted into the earphones, 2.5mm balanced, or USB port, do not apply any force or impact to the plug. Cautions Do not insert any metal objects (coins, hairpins, etc.) or flammable debris into the device. Do not put heavy objects on the device.
Page 5
User Guide Connecting the cable to a defective or damaged USB port on a computer may damage the device. Displaying one image for an extended period may cause screen burn-in (afterimage). Using poor quality protective films or adhesive stickers on the screen may cause damage. Do not insert any foreign objects into the device ports.
Page 6
User Guide Trouble- Solutions to Common Issues shooting 1. The device won't turn on. The battery may need to be recharged. Charge the device for at least one hour and try again. Reset the device. (See Page 5) 2. The device will not charge when connected to a computer via USB cable.
Page 7
User Guide 7. A file does not play, or the product becomes unstable when a certain file is played. File may be damaged or corrupt if the following occurs: Playback stops or freezes. Device may act erratically or freeze. File may sound different on another device. There may be a difference in the performance of playback or other functions.
Page 8
User Guide Certifica- KC / FCC / CE / TELEC Class B Device (Communication equipment for residential tions use): This is a Class B Device and is registered for EMC requirements for residential use. This device can be used in residential areas and all other areas.
User Guide Body-Worn Operation This device was tested for typical body-worn operations with the back of the portable music player kept 5mm from the body. To maintain compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 5mm separation distance between the user’s body and the back of the portable music player, including the antenna.
Page 10
User Guide Astell&Kern PPM42 includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. The PPM42 Now Playing status shows green or blue light to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material.
Page 11
User Guide Specifi- General Specifications Product Name KANN CUBE cations Model PPM42 Body Color Lapis Blue Body Material Aluminum Display 5.0inch 720x1280 touch display Supported Audio WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, Formats DFF, DSF, MQA MQA playback Services (Tidal Masters), Local files, External USB, MQA-CD(ripped) Sample rate...
