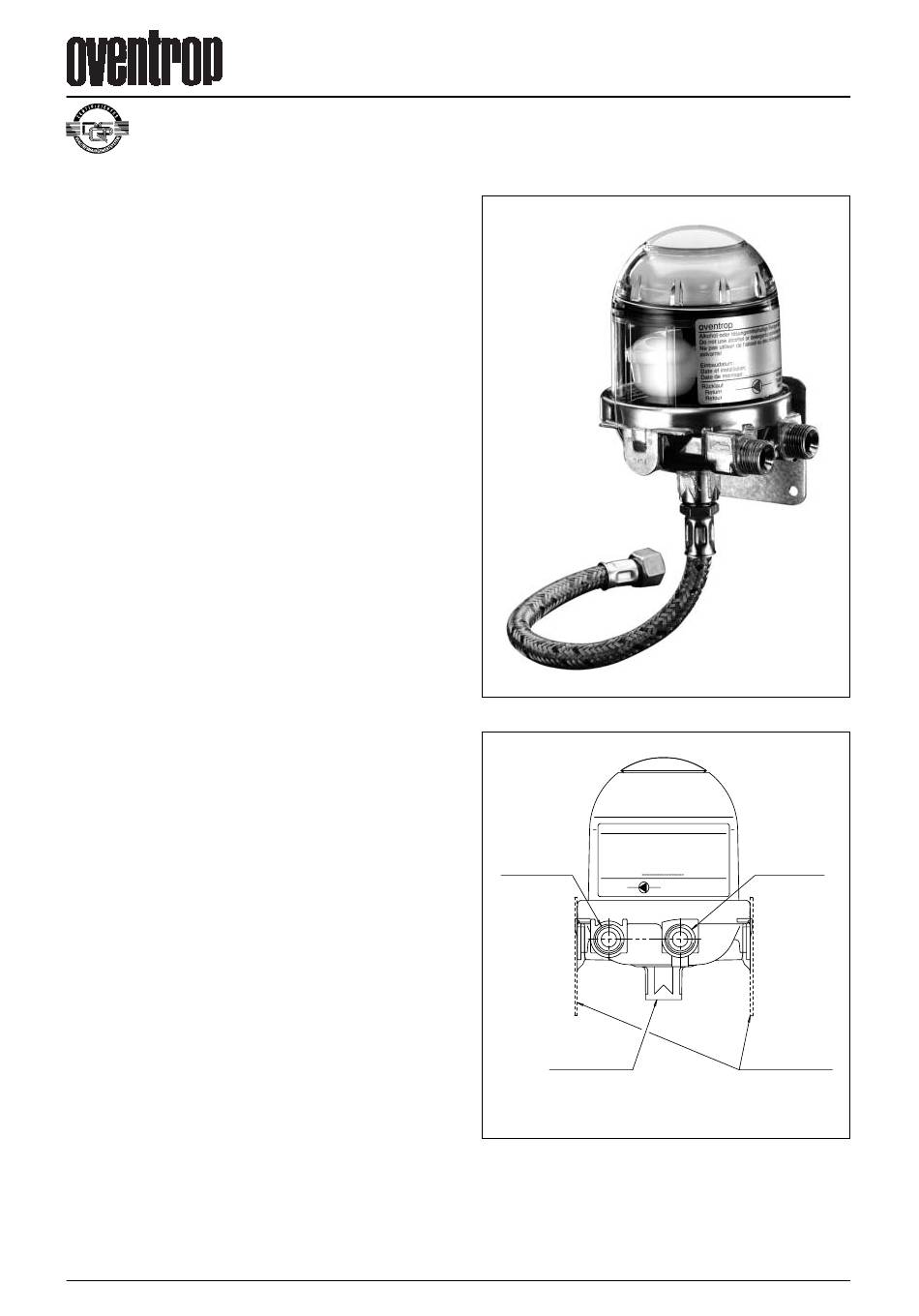

oventrop Toc-Uno-N Technical Information

The Oventrop Quality Management
System is certified to DIN-EN-ISO 9001
Tender specification:
Oventrop heating oil deaerator "Toc-Uno-N" for use in one
pipe systems with return flow feed (suction system) for auto-
matic dearation of heating oil. Body of deaerator made of
metal, with wall bracket. Float case made of transparent
plastic for function control. Connection for suction pipe to the
tank 1 ⁄ " female thread. Connection to burner
4
or 3 ⁄ " male thread with inner taper for hose connection.
8
Item no. 214 29 51
Inlet port (tank side) 1 ⁄ " female thread
4
Outlet port (burner side) 3 ⁄ " male thread with inner taper for
8
hose connection
Accessories: Flexible hose 300 mm, one port
one port with collar nut 3 ⁄ " with seal for the connection to a
8
heating oil filter with male thread
Item no. 214 29 01
Inlet and outlet port 1 ⁄ " female thread without accessories
4
Application:
Oventrop heating oil deaerator for use in heating oil
installations (suction systems) which are operated as one pipe
systems with return flow feed. A heating oil filter with isolation
has to be installed in front of the "Toc-Uno-N". A return pipe
back to the tank is no longer required. The "Toc-Uno-N"
automatically deaerates the heating oil in heating oil
installations.
Technical data:
Connections
Tank side: 1 ⁄ " female thread
4
Burner side: 3 ⁄ " male thread with taper for
8
burner hoses or
Fluid: Heating oil type EL according to
DIN 51603-1 (09.2003)
Max. nozzle capacity: 110 l/h
Max. return flow of
heating oil: 120 l/h
Dearation capacity: min. of 6 l/h air or gas emissions
Installation position: vertical, deaerator cap pointing
upwards
Max. ambient temperature: 60°C*
Max. working temperature: 60°C*
Max. working pressure: 0.7 bar corresponding to a static
column of oil of 8 m for tanks
located at a higher level
Max. suction pressure: -0.5 bar
Max. test pressure: 6 bar
Dimensions [mm]: 107 x 97 x 133
(L x D x H) with female thread:
95 x 97 x 133
TÜV tested: TÜV Rhineland, No.: S137 2004 T1
* According to DIN 4755, the max. admissible temperature of
heating oil in heating oil installations is 40 °C
2004 Oventrop
1 ⁄ " female thread
4
1 ⁄ " male thread,
4
3 ⁄ " on burner side
8
1 ⁄ " female thread
4
Technical information
Heating oil deaerator
View burner side:
oventrop
Return
Alkohol oder lösungsmittelhaltige Reiniger nicht benutzen!
Do not use alcool or detergents containing solvents!
from
Ne pas utiliser de l'alcool ou des détergents contentant
des solvants!
Einbaudatum:
burner
Date of installation:
Date de montage:
Rücklauf
Return
Retour
From tank
"Toc-Uno-N"
Toc-Uno-N"
Supply
to
F.W. OVENTROP
burner
GmbH & Co. KG
Paul-Oventrop-Str. 1
D-59939 Olsberg
Vorlauf
Typ: 214 29
Supply
TÜV geprüft
Aller
Fixing plate
right or left
