Backlight dimmer
5 steps : 10mLux – 1 Lux
External loudspeaker and relay function requires an additional power input.
Power requirement, additional input
1A/24VDC
External loudspeaker:
Max power 10W
Impedance
20 ohms
External signal organ current capabilities:
24 VDC: max. 5A
115 VAC: max. 6,3A
220 VAC: max. 5A
Weight
Ingress protection IP 44

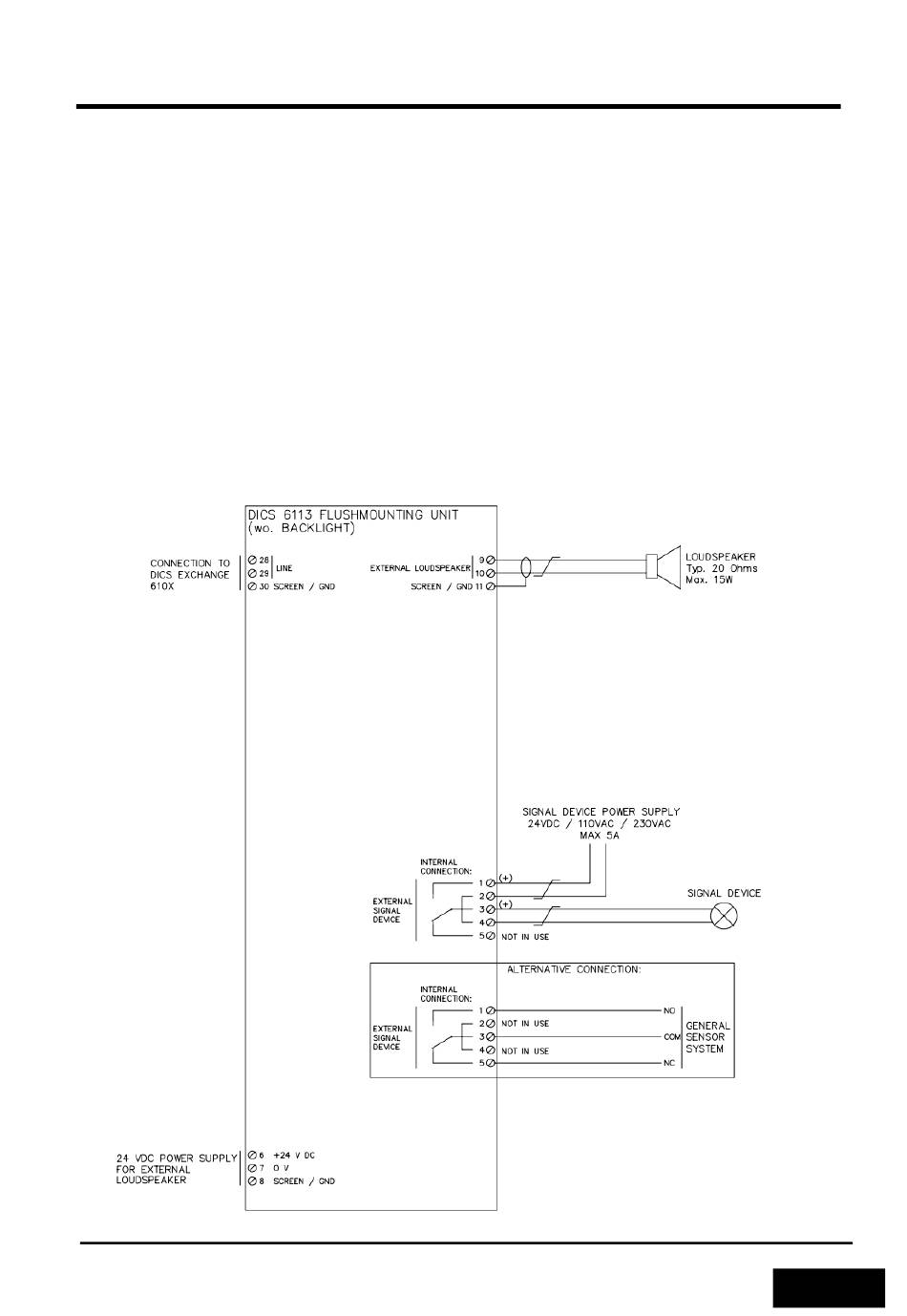

External connections Phontech 6113/6123
1.5 kg.
p/n 4000087299 v.I
Page 4-130
