- Page 1 OptimaGSM - User manual OptimaGSM – alarm system with GSM communication and building automation. Ropam Elektronik Tel. +48 12 272 39 71 Polanka 301 www.ropam.com.pl Document version: 1.0 32-400 Myślenice, Polska Faks +48 12 379 34 10 biuro@ropam.com.pl 2017-10-06...
- Page 2 - according to application. The device is a source of electromagnetic waves, so it may interfere with other radio devices in specific configurations. Ropam Elektronik is not responsible for any malfunction of the GSM network and any possible technical problems. WEEE LABELING Waste electrical and electronic equipment must not be disposed of with household waste.
-
Page 3: Table Of Contents
TK-3W / TK-3B touch keyboard ....................17 Description..........................17 Keyboard support........................18 System operation........................19 Service support......................... 20 System support: RopamDroid application..................20 Installation and configuration of RopamDroid................21 RopamDroid Application description..................23 © 2017 Ropam Elektronik... - Page 4 DTMF control: vigil........................36 DTMF control: outputs....................... 36 DTMF control: queue ending for VOICE................... 36 DTMF control: door intercom....................37 Settings list, notes ........................38 Notes ............................. 38 Version history..........................39 Information............................ 40 © 2017 Ropam Elektronik...
-
Page 5: General Description
Thank you for choosing Ropam Elektronik products and solutions. We hope that our equipment will meet your requirements and will serve you reliably for years to come. Ropam Elektronik continues to innovate its products and solutions. With the update function products can be enriched with new features and keep up with the modern requirements for the protection of property systems and home automation. -
Page 6: Appliance
Appliance The alarm system built on the basis of the OptimaGSM series alarm panels, TPR-xx touch panels and other additional devices is an ideal solution for residential buildings and small commercial facilities. -
Page 7: Warnings
Page 03 Warnings Ropam Elektronik devices are part of a full alarm system, whose working effectiveness depends on the quality and technical condition of all devices (detectors, signaling devices), cabling, etc. included in the system. The user is obliged to periodically test the operation of the alarm system. It is necessary to check whether the control panel reacts to the violation of individual detectors (PIR, reed switches, etc.) or signaling devices (external and internal) and notifications. -
Page 8: System Operation
• fast control of the TPR-4 relay output • system status LEDs • a bar of additional information about the system status • displaying information from LogicProcessor on the main screen • acoustic signaling • screen saver with calendar and clock function © 2017 Ropam Elektronik... -
Page 9: Acoustic Signaling
• Aesthetic and solid housing in white or black • tamper protection of the housing • detachable terminal strips • cooperation with headquarters: OptimaGSM Acoustic signaling The touch panel can additionally generate acoustic signals. Sounds marked with "service" can be optionally turned off or attached from the installer menu and "user"... -

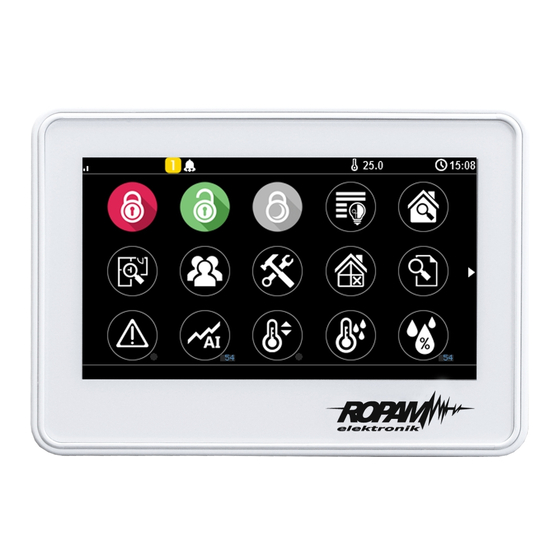

Page 10: Main Window
Icons pictograms are assigned to individual system functions, which meaning and operation are described below. TPR-4 touch panel allows you to place any icons anywhere on the two panel screens and some of them assign multiple actions. © 2017 Ropam Elektronik... - Page 11 Possible (set in OptimaGSM Manager): - selection of zones - required code - displaying the zone selection screen Disarming full system. Possible (set in OptimaGSM Manager): - selection of zones - displaying the zone selection screen Night time system. Possible (set in OptimaGSM Manager):...
- Page 12 Preview values for the analog input. Possible (set in OptimaGSM Manager): - scaling of voltage values to physical values, e.g. ° C,% Rh, lux, etc. Temperature chart from TSR-1 sensors connected to the system.
- Page 13 Controlling the control panel output. (1-32). 1 = white bulb icon 0 = dark bulb icon Possible (set in OptimaGSM Manager, tab "TPR touch panel -> display options - > output control): - the number of the exit - status indication according to entry...
-
Page 14: System Operation: Touch Panel
Possible (set in OptimaGSM Manager): - number of outputs / outputs - requiring a code to enable Turning off the output group.Possible (set in OptimaGSM Manager): - No. of output / outputs - requiring a code to enable Humidity indicator - Aero radio sensors. -
Page 15: Activation Of The Full Armed Mode
- the numeric keypad will be displayed, enter the code and confirm #. If the sequence is correct, the control panel will display the zone selection window. Select the selected zones (by pressing the zone name) and confirm or select the all button. © 2017 Ropam Elektronik... -
Page 16: Arming Night Vigil
- if the zones of control panel are violated, a message will be displayed asking for blocking the inputs: "whether to block violated inputs - YES / NO", if the zones have been blocked from the menu level, the following message will be displayed: "inputs are blocked". Entrances violated, not blocked, will be © 2017 Ropam Elektronik... -
Page 17: Disarming
Clearing the alarm can also delete any notification action; SMS, SMS + VOICE, VOICE (service). If the system has alarms configured from temperature sensors T1-T4 and / or from the analog input AI, they can be presented as alarms, in accordance with the entered descriptions © 2017 Ropam Elektronik... -
Page 18: System Status Overview
AI input, 0-10V, unit [mV]. The measurement can be scaled (service) to the actual physical unit, eg voltage = volta [V], relative humidity =% RH, etc. In addition to presenting © 2017 Ropam Elektronik... -
Page 19: History Of Events
GSM network), reading the SMS deletes memory and signaling incoming message, - LCD brightness: allows the user to adjust the brightness of the display in screen saver mode or digital photo frame function (factory settings 30%), © 2017 Ropam Elektronik... -
Page 20: Blocking Inputs
1s. or BISTABLE (the next press changes the status to the opposite) then the operating time should be set to 0s. The relay output can also be remotely controlled via SMS commands: © 2017 Ropam Elektronik... -
Page 21: Sd, Sdhc Card
Touch and zone keyboard. Description. The TK-3x touch keypad is used to control the OptimaGSM, NeoGSM, NEO alarm control panel. Due to the limited functions of the 'partition keypad', a touch panel (dedicated to a given system) or an IP module (AP-IP) should be installed in the system. -
Page 22: Keyboard Support
Blinks (1x / 1s) = time to enter or leave LED Failure (yellow) Lit (ON) = system failure Blinks (1x / 1s) = failure reading or programming mode LED [Alarm + Failure] Blink simultaneously (1x / 1s) = SERVICE MODE © 2017 Ropam Elektronik... -
Page 23: System Operation
LED [Power + Alarm + Standby + Failure] They blink simultaneously (1x / 1s) = no connection to the control panel. System operation. Standard system operation. (factory [CODE] for the OptimaGSM system and NeoGSM is [5555]) Arming (arming). [CODE][#] Disarming (disarming) or clearing an alarm. -
Page 24: Service Support
- reduction of control costs through SMSs thanks to consolidation of information in individual messages for applications, - RopamDroid Pro application with support for many systems, objects, - optimaGSM system service from the RopamDroid 1.8 version. © 2017 Ropam Elektronik... -
Page 25: Installation And Configuration Of Ropamdroid
System operation Page 21 Installation and configuration of RopamDroid. The application is available on Google Play in the Ropam Elektronik store (link: click the icon or button). After installing the application, it must be properly configured. Application settings window. © 2017 Ropam Elektronik... - Page 26 Ask for sending an SMS: the option allows you to disable control confirmations from the application, eg when controlling outputs. Confirmations of the arming control are always displayed. Change program password: this option allows you to set or change the password to authorize access to the application. © 2017 Ropam Elektronik...
-
Page 27: Ropamdroid Application Description
Export: the function of exporting settings to a file (without codes). Import: the function of importing settings into a file, after importing you must complete the settings with the SMS codes. RopamDroid Application description. Application window: © 2017 Ropam Elektronik... - Page 28 GSM network level (level 1-4) GPRS coverage (available or no GPRS) power status indication (basic or battery) standby signal (full or night) + zone number alarm signaling in the system + zone number trouble signaling in the system © 2017 Ropam Elektronik...
-
Page 29: System Operation: Radio Remote Controls
System operation Page 25 System operation: radio remote controls. The OptimaGSM system has the ability to operate with the TR-4 and Keyfob-Aero radio remote controls manufactured by Ropam Elektronik. Keyfob Aero If the system has an APm-Aero or AP-Aero radio controller installed, remote control of system standby and system functions via two-way radio remote controls is available. -
Page 30: System Control: On / Off Input Vigil
The armed mode control via SMSs is interpreted by the system in the same way as control from the touch panel. SMS control: blocking inputs. It is possible to remotely block or unblock any device inputs by sending an SMS command in the form: © 2017 Ropam Elektronik... -
Page 31: Sms Control: Outputs
If touch panels are installed in the system, the relay output can also be remotely controlled via SMS commands: Command Description Example #### ontpx Enable relay output on the TP panel, where X = panel 5555 ontp1 number (address, service) © 2017 Ropam Elektronik... -
Page 32: Thermostatgsm: Monitoring And Changing Temperature Thresholds
(default Hi) for a given thermostat, X = number of Configuration #### tempa x yy thermostat, temperature sensor. 5555 tempa 1 55 changed yy = set temperature in [° C] from the range of values - 55 ÷ 125, © 2017 Ropam Elektronik... -
Page 33: Ai Input: Change Of Voltage Thresholds
#### walkon 5555 walkon (LED) in the where: #### = detectors. access code, the test works for 30 Remote disable of min. the operation test #### walkoff 5555 walkoff (LED) in the detectors. © 2017 Ropam Elektronik... -
Page 34: System Status
Checking the status of the module. consists in sending an SMS command in the form: Command Example #### status 15/02/20 15:00 Inputs: 00000000000000000000000000000000 Outputs: 00000000000000000000000000000000 AI 250mV sv: 1.0 GSM: 3,24dbm Uz: 13.7V Temperature Sensor 1: 22.5 Sensor 2: 18.5 Sensor 3: 35.5 Sensor 4: 25.5 Zone 1: armed © 2017 Ropam Elektronik... - Page 35 08 - SIM error, no SIM 09 - required PIN card not logged in 10 - GSM jamming (jamming) 11 - no AC 12 - overload / short circuit O1 output 13 - overload / short circuit O2 output © 2017 Ropam Elektronik...
-
Page 36: System Status: Sms Zone Status
SMS STAN. 3 ZONE 3 ! 4 ZONE 4 b 0 - zone intact 5 ZONE 5 B 1 - zone violated (active detector) 6 ZONE 6 A X - zone disabled (service) 7 ZONE 7 0 © 2017 Ropam Elektronik... -
Page 37: Sms Control: Other Functions
#### email 5555 email Adding an email address to the first free spot in the user list. user@exampl e.com #### events Request to retrieve the history of the last 7 events from the 5555 email module © 2017 Ropam Elektronik... -
Page 38: Ussd Codes; Recharge Prepaid Account
- Play: *101# - Heyah: *108# - njumobile: *127*1# - Lycamobile:*131# A full list of USSD codes is available at a given GSM operator and allows you to manage services and promotions in a given tariff. © 2017 Ropam Elektronik... -
Page 39: Remote Configuration Of Selected Functions: Sms
VOICE voice call can be coming from the system (eg an alarm) or by calling an authorized number to the system (service). A single DTMF code (pressing the sign) should last for a minimum of 0.5s. Voice synthesizer VSR-2 is required for voice confirmation of performed controls. © 2017 Ropam Elektronik... -
Page 40: Dtmf Control: Vigil
The end of the ringing queue via DTMF consists in selecting [#] on the keypad during a voice call (service). If you use the function, set the appropriate order of numbers to VOICE notifications according to the priority for this type of notification. © 2017 Ropam Elektronik... -
Page 41: Dtmf Control: Door Intercom
Example Comments rrrr* Code: yyyy = opening bolt DTMF code Enable output responsible 1234* (service) for opening bolt in the It is not recommended to use a single video door phone. digit, do not use #. © 2017 Ropam Elektronik... -
Page 42: Settings List, Notes
Settings list, notes Page 38 3. Settings list, notes Notes © 2017 Ropam Elektronik... -
Page 43: Version History
Version history. Page 39 Version history. This manual applies to the device version: Urządzenie Wersja OptimaGSM TPR-xx-O (OptimaGSM) RF-4-xx VSR-2 VAR-1U PSR-ECO-5012-RS/ PSR-ECO-2012 EXP-I8, EXP-I8-RN APm-Aero SmartPIR-Aero Hub-IQPLC TK-3 x AP-IP © 2017 Ropam Elektronik... -
Page 44: Information
Ropam Elektronik is the exclusive copyright holder of material contained in documentation, catalogs and web sites, in particular for photographs, descriptions, translations, graphic forms, presentation methods. Any copying of information or technical materials found in the catalogs, web pages or otherwise provided by Ropam Elektronik requires written consent.
