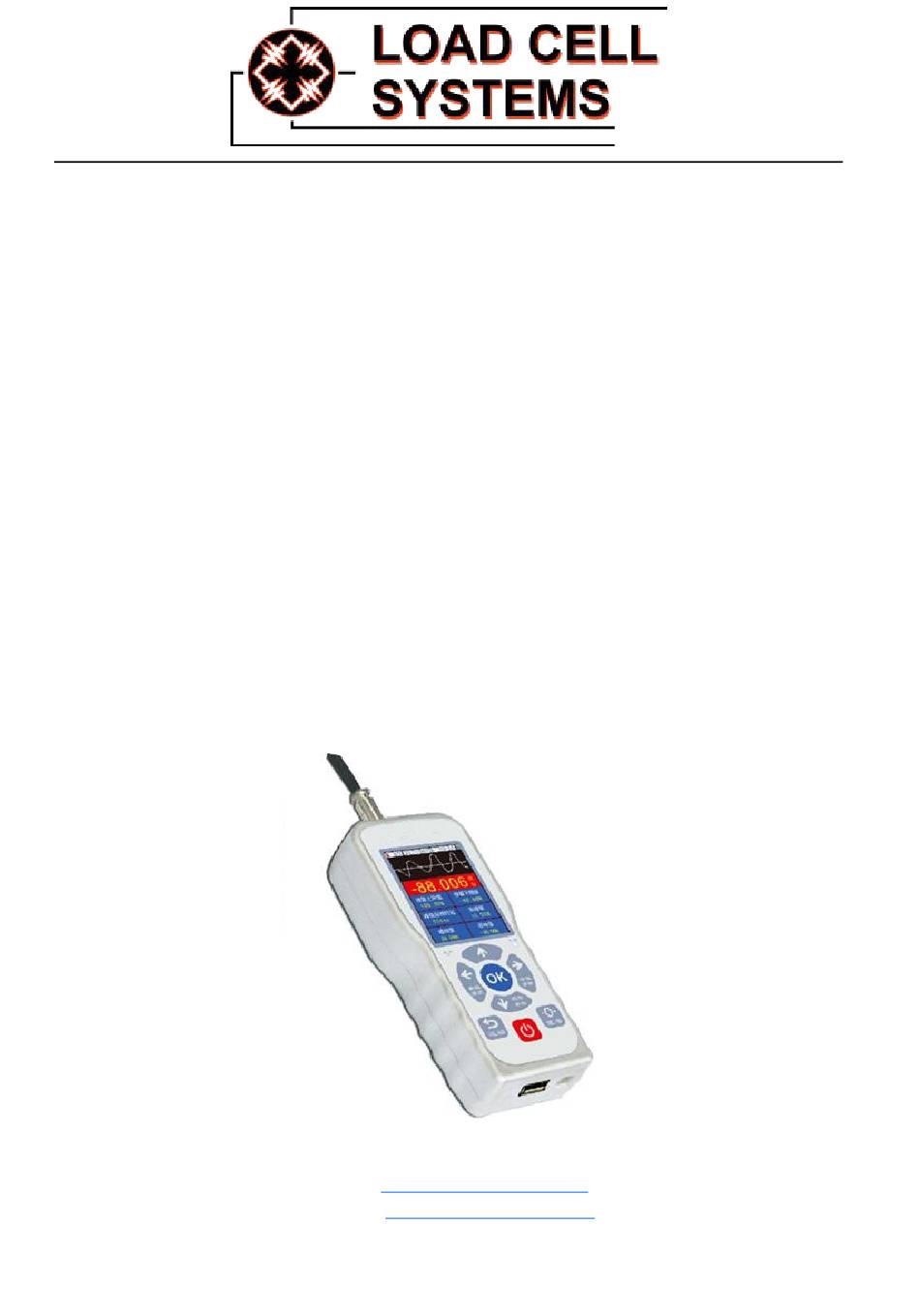

HANDHELD FORCE MEASURING INDICATOR
HHI
Contents
Specifications and Parameters...................................................... 2
Appearance and Dimensions ...................................................... 4
Test Benches ........................................................................ 5
Precautions ........................................................................... 6
Functions .............................................................................. 7
Main Features ........................................................................ 7
Parts & Buttons and Their Functions ............................................. 8
Interfaces and Their Functions......................................................12
Test Description .....................................................................19
Software .............................................................................. 21
Maintenance and After-Sales Service .............................................26
Battery Use and Maintenance ......................................................27
Packing List ...........................................................................28
Load Cell Systems reserves the right to change specifications without notice. ©2018
Web:
https://loadcellsys.com
Email:
sales@loadcellsys.com
Phone: 607-426-1467
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Load Cell Systems TX-2
Summary of Contents for Load Cell Systems TX-2
-
Page 1: Table Of Contents
Interfaces and Their Functions………………………………………………12 Test Description ……………………………………………………………19 Software …………………………………………………………………… 21 Maintenance and After-Sales Service ………………………………………26 Battery Use and Maintenance ………………………………………………27 Packing List …………………………………………………………………28 Load Cell Systems reserves the right to change specifications without notice. ©2018 Web: https://loadcellsys.com Email: sales@loadcellsys.com Phone: 607-426-1467... -
Page 2: Specifications And Parameters
Specifications and Parameters (for Embedded Products) - 2 -... - Page 3 Specifications and Parameters (for External Products) - 3 -...
-
Page 4: Appearance And Dimensions
Appearance and Dimensions Output Port Wiring - 4 -... -
Page 5: Test Benches
Test Benches (Optional) - 5 -... -
Page 6: Precautions
Precautions Misoperation may cause damage to the force gauge and even result in serious accidents. Notes This manual describes precautions against accidents and operation methods of this product. Make sure to read this manual carefully and safe keep it after the reading. -
Page 7: Functions
circuit failure even fire may be caused. 8、 Follow this document to wire ports; otherwise, circuit failure even PC fault may be caused. 9、 Make sure the AC charger is securely inserted into a socket if the product needs to be charged. Looseness may cause short circuit, resulting in electric shock or fire. - Page 8 3、 Peak values, real-time values, and test curves can be displayed on the same screen; enabling procedural monitor and reproduction of the test. 4、 Free setting of fracture alarm value, fracture alarm dead zone, and upper/lower offset; selection of fracture alarm, alarm for not excess of limit, and alarm for excess of limit.
-
Page 9: Parts & Buttons And Their Functions
Parts & Buttons and Their Functions (for Embedded Products) - 9 -... - Page 10 Parts & Buttons and Their Functions (for External Products) Wiring methods of the sensor: ＋ － ；2——V ； 1——V ＋ － ；4——S ； 3——S 5——P - 10 -...
- Page 11 Buttons and Their Functions Standalone Capture Online Test Storage & Menu Operation Button Test Mode Mode Mode Query Mode Mode Shutdown Invalid Shutdown Invalid Invalid Quit parameter Quit Invalid Invalid Exit modification or capture exit Invalid Invalid Invalid Zero set Zero set Test Invalid...
-
Page 12: Interfaces And Their Functions
Interfaces and Their Functions 1、Test Interface： Press and hold the "ON/OFF" button to start the force gauge. The following interface appears. ①、Battery level ⑦、Number of reports saved ⑧、Sampling Speed ②、Curve ⑨、Upper limit alarm ③、Real-time force ⑩、Peak hold time ④、Lower limit alarm 、Peak-to-peak ⑤、First peak ⑥、Valley-to-peak... - Page 13 Test Functions ①、Battery level: real-time display. In case of power shortage, this icon blinks and an alarm is reported. ②、Curve: force-to-time curve. ③、Force: real-time display. A maximum of 5 digits can be shown. Its unit can be converted on the setting interface. ④、Lower limit alarm: values can be specified on the setting interface.
- Page 14 【Display Unit】 When the main unit is set to "g", available values of [Display Unit] include: "g", "mlb", "mN", and "Pa". When the main unit is set to "kg", available values of [Display Unit] include: "kg", "lb", "N", and "KPa". When the main unit is set to "t", available values of [Display Unit] include: "t", "klb", "kN", and "MPa".
- Page 15 【Alarm mode】 Values of this parameter include "Within", "Beyond", "Fracture", and "Shut Off"; they are indicative of within limit alarm, beyond limit alarm, fracture alarm, and shutoff alarm. If the value is set to "Within" or "Beyond", when the alarm value is exceeded, the buzzer acts while the display shows alarm information.
- Page 16 When this parameter is set to "on", enabling the external switch (equivalent to the "curve capture" button or the "curve capture" instruction) to be turned on, the force gauge will enter curve capture mode. Note: capture time length is subject to the sampling speed. Capture time (unit: second) = number of captured data / sampling speed 【Peak Hold Time】...
- Page 17 peak-to-peak (Vmax), valley-to-peak (Vmin), and new peak (Vnew) are updated continuously. If the absolute value of (Vmax – Vnew) or (Vmin – Vnew) is larger than 10, Vmax or Vmin is considered the first peak. 【Buad Rate】serial port baud rate Set range: 4800 ~ 230400bps Format: 1 initial bit;...
- Page 18 【Auto Backlight】 This is an energy-saving design. When the force gauge is idled for a specified period, it will automatically adjust backlight brightness. 【Clear Storage】clearing stored data This parameter is used for clearing stored test reports and curves. When stored data is overflowed, the system will automatically clear all data and begin storing new captured data.
-
Page 19: Test Description
value of the calibration point is 6.) ④Press "↑", "↓", "←", "→", or "OK" to change values of other calibration points and press "OK" for confirmation. ⑤Press "↑", "↓", "←", or "→" to move the cursor to [No.0 A/D Code]. After the internal code becomes stable, press "OK"... - Page 20 Choose a proper fixture and install in onto the sensor. Note that do not screw the sensor with excessive force; otherwise, the sensor may be damaged. This step is applicable to external force gauges. 3、 Power-on. Press and hold the "ON/OFF" button for 2 seconds to power on the force gauge.
-
Page 21: Software
button is effective on the test interface only. Remove the sensor and clean the force gauge. Make sure to put the force gauge back into its box for future use. Software While connected to a serial port of a PC over the dedicated USB line, the force gauge can make use of the dedicated software to realize unlimited storage, transmission, and reproduction of test curve data. - Page 22 blank, The following interface appears. - 22 -...
- Page 23 ……1. Toolbar: shows various buttons of the software in different modes. Users can click them to perform corresponding operation. ……2. Baud rate: it should be set consistent with the baud rate of the force gauge so that the force gauge can communicate with the PC. ……3.
- Page 24 to a PC. To avoid damage to the communication port, make sure the force gauge is powered off. Select the number of a communication port for the force gauge and the Select the baud rate that is consistent with that of the force gauge. Press "Online"...
- Page 25 The system starts curve capture and countdown after capture is triggered. When the timer expires, capture is automatically completed. Curve files will be saved and statistical reports will be updated. During capture, if users click "Re-capture", the captured data will be cleared;...
-
Page 26: Maintenance And After-Sales Service
statistical reports will be updated. 10、Printing a curve Open a project. Click "Test Curve" in the "Switch Bar". Double-click a desired curve file in the "Curve File Bar". Click "Print" to print the curve displayed in drawing area. 11、Printing a statistical report Open a project. -
Page 27: Battery Use And Maintenance
shop for free maintenance against the original invoice and warranty. Warranty period of batteries is 3 months. 7、 The warranty clauses of this product only apply to products that are sold within China. If your product has exceeded the product replacement period even the warranty period, contact the local shop or the manufacturer for maintenance service. -
Page 28: Packing List
Software setup disk Packing List (for External Products) Name Qty. Force gauge Power adapter Sensor connector Warranty Use guide USB line Software setup disk Load Cell Systems reserves the right to change specifications without notice. ©2018 Web: https://loadcellsys.com Email: sales@loadcellsys.com Phone: 607-426-1467...
