Sargent EC600 Handbook

Power control system

Advertisement

1
Template
Instructions
<<Delete before
use>>
1 Introduction
This section of the handbook will guide you through the operation of the electrical system. All details
are correct at the time of going to press. Please also see the online version which will include any later
updates or amendments.
Further technical details are contained in section 3 or in the supporting technical manual available from
www.sargentltd.co.uk
For the safe operation of all electrical equipment within your Leisure Vehicle it is important that you
read and fully understand these instructions. If you are unsure of any point please contact your dealer
/ distributor for advice before use.
The system has a number of key components that you will need to be familiar with before attempting to
use the system, these are:
·
The EC601, EC602 & EC651 Power Supply Unit (PSU) - a combined mains consumer unit
and 12V controller located in the bed box or upper locker.
·
The EC620 Control Panel (CP) - a remotely located user control panel used to turn circuits
on and off and to display battery, water tank and other system information. This panel uses
simple straightforward controls and reliable data communication to the PSU.
·
The PX300 Intelligent Battery charger 300W.
·
The C44 Road Light Fuse Box - This small unit, which is unique to caravans, is located in
the front bed box. The unit houses fuses for the road lighting circuits and supplies from the
tow vehicle, and also has connectors for the optional alarm system and Automatic Trailer
Control (ATC) unit.
2 Using the System

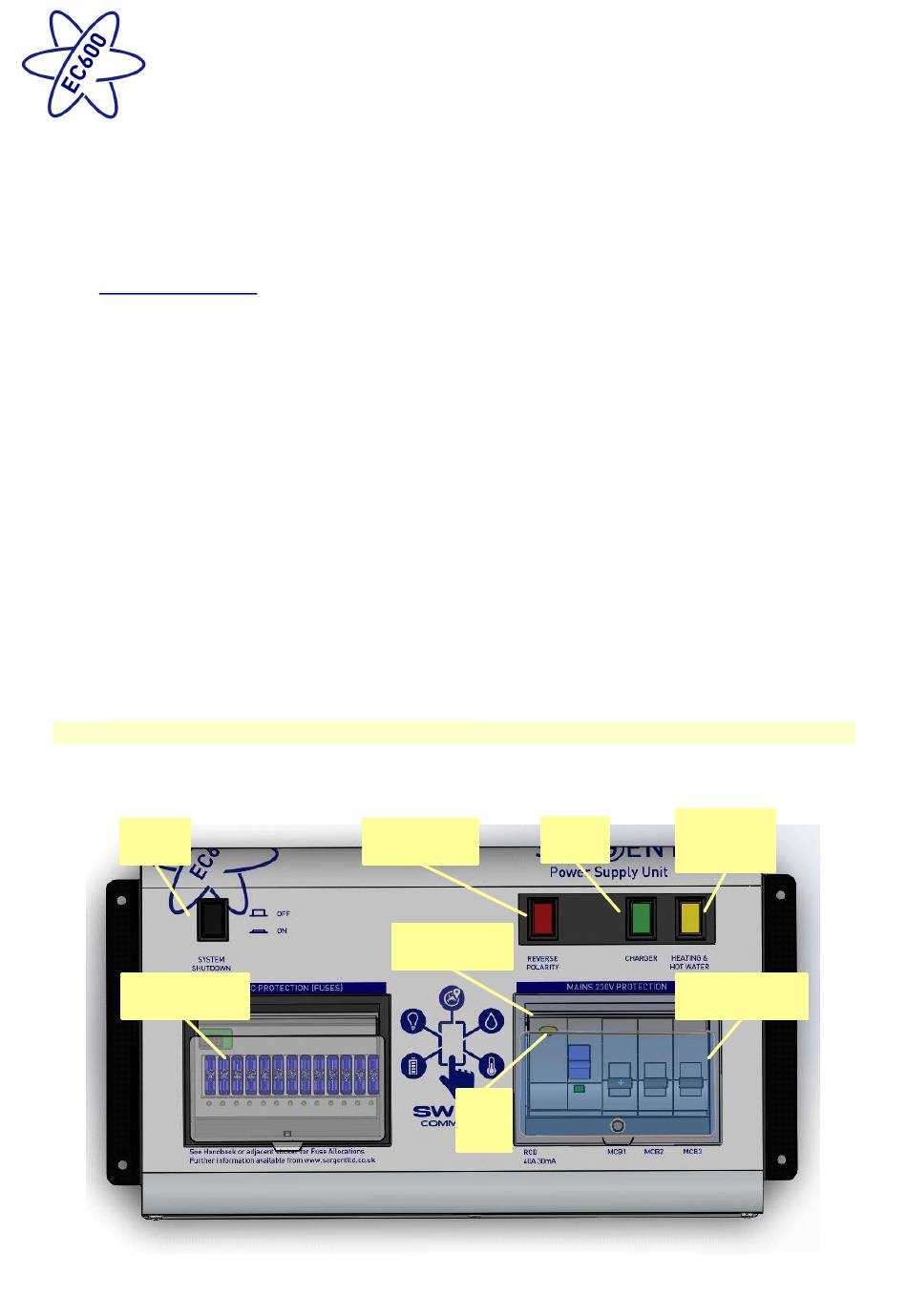

2.1 Power Supply Unit - Component Layout
The PSU is located in the front offside bed box area in caravans, and in similar locations in
motorhomes.
Isolate
switch
12 Volt DC fuses
(under flap)
Issue 2.3
EC600 Power Control System
Reverse polarity
indicator
Residual Current
Device (RCD)
RCD
Test
button
Page 1 of 20
Heating
Charger
System
switch
switch
Miniature Circuit
Breakers (MCB's)
10
August 2017
th

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC600 and is the answer not in the manual?

Questions and answers

Chris
March 15, 2025

Heating not working on electric

2 comments:
Mr. Anderson
March 15, 2025

The heating may not be working on the Sargent EC600 because the heating button on the EC600 unit needs to be turned on. Additionally, for the water heater to function, it must be activated either through the Truma display unit or the Swift Command unit, but the EC600 heating button must still be on. If these conditions are not met, the heating system will not operate correctly.

This answer is automatically generated

Leslie
April 14, 2025

@Mr. Anderson h

Barry
May 31, 2025

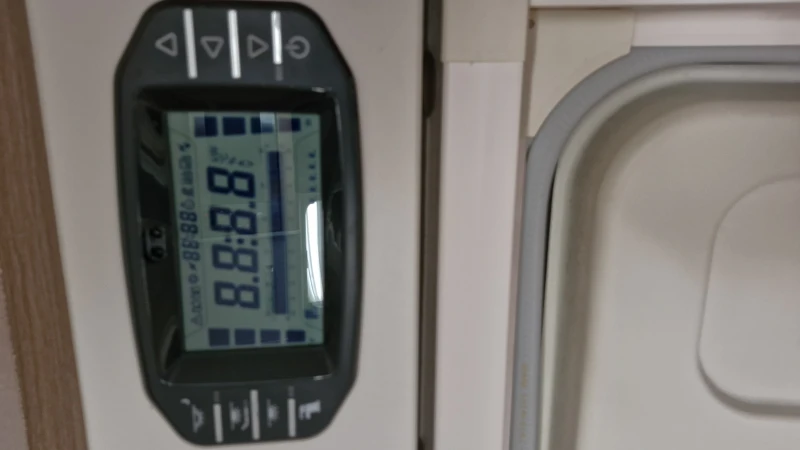

Display is showing every single segment. Cannot seem to reset. Lighting, water pump.seem to work OK.

User image 683ab6216cd25
1 comments:
Mr. Anderson
May 31, 2025

The Sargent EC600 display showing every single segment may indicate a software crash. To reset it, turn off the PSU isolate switch to reboot the control panel. Wait 30 seconds, then turn the switch back on. Also, check with your dealer to ensure the system has the latest software update.

This answer is automatically generated

Phil Bayliss
May 23, 2025

What is number 5 fuse for? Lighting up red

1 comments:
Mr. Anderson
May 25, 2025

When fuse number 5 in the Sargent EC600 lights up red, it indicates that the fuse has blown. This fuse is rated at 5 Amps and is used for Appliances, Hob Ignition, Toilet, and Whale Water Heater.

This answer is automatically generated

Leslie
April 14, 2025

In my van I had travialed across the panel an shorted the panel put in a new control unit and unit still not swinging on above the door

1 comments:
Mr. Anderson
April 15, 2025

The Sargent EC600 control unit above the door may not be functioning after installation due to one or more of the following reasons:

1. The software may have crashed—reboot the control panel by turning off the PSU isolate switch, waiting 30 seconds, then turning it back on.
2. No power supply—check for a 230V supply, ensure the charger is switched on, and verify the power button on the control panel is turned on.
3. Battery issues—the battery may be flat, disconnected, or have a blown fuse; recharge or replace the battery and check all fuses.
4. Equipment not connected—ensure the control unit is properly connected to the 12V supply.
5. A fuse may be blown—replace it with the correct value as per the fuse table.
6. Other system faults—if none of the above resolves the issue, a fault may require dealer assistance.

Check each of these points to diagnose the problem.

This answer is automatically generated

Kevin FINBOW
March 28, 2025

I have a sergant xp300 charger fitted to my swift but it doesn't seem to be charging my battery it has both green light on consumer box and green on end of charger but doesn't seem to charge batter

1 comments:
Mr. Anderson
March 28, 2025

The Sargent EC600 charger may not be charging the battery despite showing green lights because the solar regulator unit might be faulty. In the context, the user observes that although the solar panel appears to be working (panel output flashing), the charge status LED on the regulator flashes quickly and goes off, suggesting it is not maintaining a proper charge. The user suspects the regulator may be the cause of the problem.

This answer is automatically generated

Summary of Contents for Sargent EC600

  • Page 1 Template EC600 Power Control System Instructions <<Delete before use>> 1 Introduction This section of the handbook will guide you through the operation of the electrical system. All details are correct at the time of going to press. Please also see the online version which will include any later updates or amendments.
  • Page 2: Activating The System

    2.2 Activating the System The EC600 system has a shutdown feature that can be used when the vehicle is in storage. This allows the leisure electronics to be turned off when not required to save battery power. When in the off state the alarm and tracking system supplies are still active, all other supplies are turned off.
  • Page 3: Control Panel Operation

    Template EC600 Power Control System Instructions <<Delete before use>> 2.4 Control Panel - Component Layout Your control panel will have an appearance as below, but depending on your type of vehicle (caravan or motorhome) the control panel features will vary. Not all features are present in all vehicles.
  • Page 4 The AC Limit icon in the header indicated that a limit is set and will flash if the limiter is active. For this feature to work correctly the Heating setting must be set to Timer so that the EC600 system can control the heating system.
  • Page 5: Operation While Driving

    2.6 Operation while driving The EC600 system is designed to shutdown parts of the system while the engine is running. This is to meet Electro Magnetic Compatibility (EMC) regulations and to ensure the safe operation of the caravan or motorhome.
  • Page 6 Template EC600 Power Control System Instructions <<Delete before use>> 3 System Technical Information The following section provides further technical information relating to the electrical system. You can also access the supporting technical manual from www.sargentltd.co.uk 3.1 Residual Current Device & Miniature Circuit Breakers...
  • Page 7: Battery Charger

    Template EC600 Power Control System Instructions <<Delete before use>> 3.3 Battery Charger The system incorporates an intelligent three-stage battery charger. During stage 1 the battery voltage is increased gradually while the current is limited to start the charging process and protect the battery. At stage 2 the voltage rises to 14.4V to deliver the bulk charge to the battery.
  • Page 8 To prevent over discharge, the EC600 system incorporates a battery protect circuit that warns the users and then disconnects the batteries when they fall below set values.
  • Page 9 Template EC600 Power Control System Instructions <<Delete before use>> 3.5 12 Volt DC Fuses WARNING When replacing fuses always replace a fuse with the correct value. NEVER replace with a higher value / rating as this could damage the wiring harness. If a replacement fuse ‘blows’ do not keep replacing the fuse as you could damage the wiring harness.
  • Page 10: Smart Charging

    Template EC600 Power Control System Instructions <<Delete before use>> 5 Amps Right Hand Tail Lights 5 Amps Left Hand Indicators 7.5 Amps Brown Stop Lights 5 Amps Reverse Lights 3.6 Solar Charge Management The EC601/602/651 PSU incorporates a built-in solar charge management feature, which will monitor the input from a separate solar panel and regulator.
  • Page 11: Heating Controls

    The Swift Command App can be used to both configure and adjust the lighting and dimming. 3.12 Heating Controls There are a number of heating systems that can be controlled by the EC600. The system will be preconfigured by the manufacturer or supplying dealer. The following menu items are only available in Timer control mode, and 3 examples are shown for the different heating system variants.
  • Page 12 Template EC600 Power Control System Instructions <<Delete before use>> When timer 4 is completed the exit settings item is reached. Press Exit settings? the select button to exit and save the settings. The timer example above will set the heating to 22 degrees C and the hot water to boost at 7:30 in the morning.
  • Page 13: Refrigerator Controls

    Template EC600 Power Control System Instructions <<Delete before use>> This setting can be OFF or ON The menu now repeats for timer 2 through to timer 4 When timer 4 is completed the exit settings item is reached. Press Exit settings? the select button to exit and save the settings.
  • Page 14: Air Conditioning

    3.15 Other Controls The main control panel can display the software version number of both the Control Panel and the PSU. On the EC620 scroll to the ‘Sargent EC620’ menu item and press the select button to display software information.
  • Page 15: Temperature Readings

    Swift Command App and the associated user guide. 3.18 Temperature Readings The EC600 Temperature sensor measures the ‘core’ temperature of the vehicle, and provides a figure for information only. The same sensor also measures humidity, providing a figure (also for information only) from within that bed box or storage area.
  • Page 16 Template EC600 Power Control System Instructions <<Delete before use>> damage. You should not rely on this cut off level during normal operation, but manage your power consumption to a discharge level of 11.5V or above. This cut off only applies to power drawn from the battery by the leisure equipment that is controlled by the control panel power switch;...
  • Page 17 Template EC600 Power Control System Instructions <<Delete before use>> Fault Possible Cause Proposed Fix The reverse polarity light is designed to illuminate when the Live and Neutral supply has been reversed / crossed over. If the light illuminates there is a problem with the site supply or the cable connecting the supply to your vehicle.
  • Page 18: Remote Access & Control

    4.3 Swift Command SIM Coverage & Usage information The EC600 system contains Mobile SIM with 36 month contract, which commences upon activation at the Dealership when your vehicle is linked to your customer.
  • Page 19 Template EC600 Power Control System Instructions <<Delete before use>> 5 Technical Data & Approvals 5.1 Equipment – EC601, EC602, EC651, EC620, EC630 & PX300 Control Equipment Outline Specification INPUT 230V 230 Volts / 0 to 16 Amps + / - 10% RCD protected, 2 x MCB outputs of 10A &...
  • Page 20: Declaration Of Conformity

    Template EC600 Power Control System Instructions <<Delete before use>> 5.3 Declaration of Conformity Equipment: Leisure Power Control System Model name: EC601, EC602, EC651, EC620, EC630 & PX300 I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced approvals.
