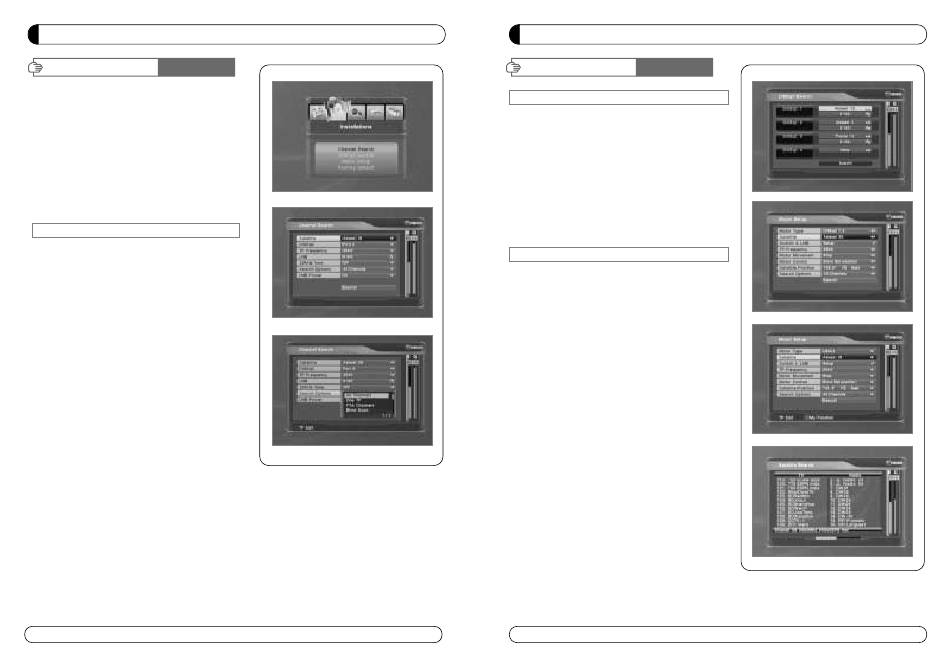

II. Installation (Satellite)
This section may help you to set up antenna and
scan satellite or transponder, etc. Select
Installations in Main Page using ▲▼ and press OK.
Press EXIT to return to the previous menu or press
MENU to go to the current live channel.
II-1 Channel Search
II-2. DiSEqC Switch
II-3. Motor Setup
II-1 Channel Search
1.You can move the cursor using and press OK
▲▼
when you select the value that you want.
a) Satellite
- Press OK to display the Satellite List Box.
- Select the proper Satellite and then press OK.
b) DiSEqC
- Press OK to display the DiSEqC Port List.
- Select the proper DiSEqC port and then press OK.
c) Frequency
- Press OK to display the Frequency List.
- Select the proper Frequency and then press OK.
d) LNB
- Press OK to display the LNB Frequency List.
- Select the proper LNB Frequency and then press OK.
- You can also input directly the numbers using
NUMBER KEY on the RCU.
e) 22KHz Tone
- Select the one among None, 0 KHz or 22 KHz
depending on the user's antenna switch box.
f) Search Option
- Press OK to display the Search Option list.
- Select the Search Option that you want and then
press OK.
14
g) Search
- Press Search to start scan channels.
- Selected Satellite displays on the screen.
- Press ▶ to select more Satellite or ◀ to cancel
the selected Satellites.
- Press OK to start scanning.
※ TP EDIT : To Edit TP, Press the RED button
on the RCU.
MENU GUIDE
II. Installation (Satellite)
II-2. DiSEqC Switch
1. Select Channel Search in Installation using
and press OK.
▲▼
a) If you select DiSEqC Switch and press OK on the
menu will be, DiSEqC Switch Page will be displayed.
b) Select the proper Satellite of each DiSEqC port
(A~D) using and and press SEARCH.
◀ ▶ ▲▼
Selected Satellites will be searched
automatically.
II-3 Motor Setup
1.You can move the cursor using and press OK
▲▼
when you select the value that you want.
a) Motor Type : DiSEqC 1.2, USAL
- Press OK to display Motor Type
- Select the proper Motor Type and then press OK.
b) Satellite
- Press OK to Display the Satellite List Box
- Select the proper Satellite and then press OK.
c) Switch & LNB
- Press OK to Display the LNB frequency list or
Switch Setting
- Select proper LNB & proper Switch.
d) Frequency
- Press OK to Display the Frequency List.
- Select the proper Frequency and then press OK.
e) Motor Movement
- Search the appropriate position of the selected
Satellite using ◀ ▶.
