Aquatec Watermaker AC 65 User Manual

Modular 230/400 volt, 50hz
Hide thumbs Also See for Watermaker AC 65:

Advertisement

Quick Links

Download this manual
User Manual
Version 08.2019-16
Aquatec Watermaker AC 65 - AC 240
Modular 230/ 400 Volt, 50 Hz

Advertisement

loading
Need help?

Need help?

Do you have a question about the Watermaker AC 65 and is the answer not in the manual?

Questions and answers

Related Manuals for Aquatec Watermaker AC 65

Summary of Contents for Aquatec Watermaker AC 65

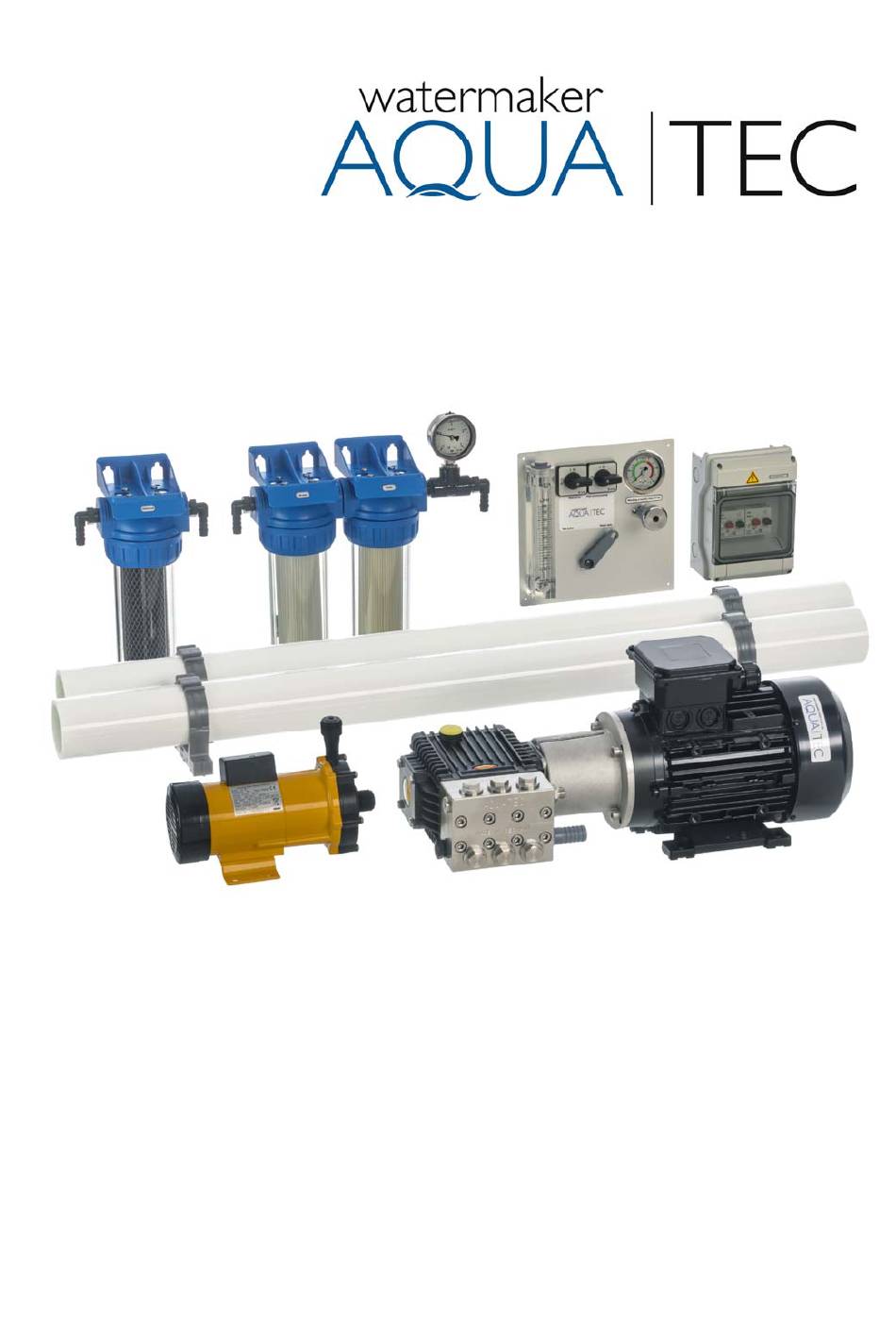

  • Page 1 User Manual Version 08.2019-16 Aquatec Watermaker AC 65 - AC 240 Modular 230/ 400 Volt, 50 Hz...
  • Page 2 Thank you to choose an AQUATEC Watermaker for the provisioning of fresh water on your boat. AQUATEC equipment is made from high-quality components exclusively and has proven its reliability on long cruising-yachts. We are convinced that our product will serve you for many years without interferences.

  • Page 3: Table Of Contents

    Inhaltsverzeichnis Hints Directory Scope of delivery Introduction reverse osmosis 6 - 7 Operating instructions 8 - 10 Switch off the system fresh water flush 11 - 12 Long term preservation (mothballing), antifreeze 12 - 13 Membrane cleaning 14 – 17 Flow diagram 18 –...
  • Page 4 Scope of delivery Seawater R.O. AQUATEC :  High-pressure pump with electric motor, pump head in Duplex-stainless steel 1.4462.  Feed pump 230 volt.  GFK membrane housing and membrane-element.  1Filter housing included charcoal filter-cartridge for fresh water flushing.
  • Page 5 Introduction The principle of reverse osmosis (RO) In natural sciences and technology, osmosis is perceived as the directed migration of molecules through a semi permeable membrane. The chemical and physical structure of the membrane determines which molecules are able to pass and which are not. For this reason, it is called semi-permeable, which means as much as halfway or partial permeability.
  • Page 6 Note: If Aquatec is run in brackish water or in low-salt water, the fresh water production must not exceed the displayed value! In this case, regulate the pressure under continuous observation of the produced amount of water until the normal level of fresh water production is reached.
  • Page 7 Flowdiagram fresh water production. (5) Pressure regulation valve (6) Flowmeter product water (7) ships fresh water pump (8) Feed pump (9) Gauge feed pressure (10) Seacock, not scope of delivery. (11) Unit for automatic fresh water flush Flow diagram fresh water production. (Automatic fresh water flush)
  • Page 8 After each operation, the Aquatec should be rinsed with fresh water. After fresh water flushing, the system may remain unused for 7-14 days. This process can be repeated as long as you like.
  • Page 9 Fresh water flushing manual. Attention: Working pressure 0 bar. Fresh water flushing automatic (5) Pressure regulation valve (6) Flowmeter product water (7) ships fresh water pump (8) Feed pump (9) Gauge feed pressure (10) Seacock, not scope of delivery. (11) Unit for automatic fresh water flush...
  • Page 10 7-14 days. This process can be repeated as long as you like. Caution: Prior to a longer period of shutdown (without flushing), the Aquatec has to be preserved with the chemical no. 3 (Biocide). For instructions, see “Long term preservation (mothballing) of the plant”.

  • Page 11: Hints

    Long term preservation (mothballing) of the plant 1 Description: Prior to a longer period of shutdown, the Aquatec has to be preserved with chemical no. 3 (Biocide). After mothballing, the plant can be shut down for 6 months, depending on the environmental conditions.
  • Page 12 Long term preservation (mothballing) of the plant 2 A standard 1/2” hose can be used for this purpose, which should be fitted onto the HP threaded connector of the high pressure pump to drain the water out into a bucket. Then drain the all the water from the pump, which is important if there is a risk of frost, if possible it is also preferable to blow pressurized air through it in the direction of flow, for this purpose remove both hoses.
  • Page 13 9) If there is no change in freshwater output, repeat the procedure 1 to 7 with chemical no. 2 (Acid). Attention: Prior to a longer period of shutdown, the Aquatec has to be preserved with Biocide after cleaning and flushing. Caution: At every recommissioning after cleaning or mothballing, divert the product water over the test-outlet for the first 30 minutes to rinse the chemical completely out of the system.

  • Page 14: Scope Of Delivery

    Flow diagram Flow diagram AC 65 / AC 75 fresh water flush manual Flow diagram AC 65 / AC 75 fresh water flush automatic (option) (5) Pressure regulation valve (6) Flowmeter product water (7) ships fresh water pump (8) Feed pump (9) Gauge feed pressure (10) Seacock, not scope of delivery.
  • Page 15 Flow diagram AC 110 / AC 135 / AC 150 fresh water flush manual Flow diagram AC 110 / AC 135 / AC 150 fresh water flush automatic (option) (5) Pressure regulation valve (6) Flowmeter product water (7) ships fresh water pump (8) Feed pump (9) Gauge feed pressure (10) Seacock, not scope of delivery.
  • Page 16 Flow diagram AC 190 fresh water flush manual Flow diagram AC 190 fresh water flush automatic (option) Hose dimensions (inner diameter) see specification.
  • Page 17 Flow diagram AC 240 fresh water flush manual Flow diagram AC 240 fresh water flush automatic (option) Hose dimensions (inner diameter) see specification.
  • Page 18 Installation guide page 1 Caution: Hose connections below the water line should secured with 2 hose clamps. All hose clamps must checked time to time and tighten if need. During assembly of the hose nozzles and fittings, few windings of Teflon-tape have to be wrapped around the screw thread against screw direction as tightly as possible.
  • Page 19 Installation guide page 2 Filter housing For a good sealing of the filter housing, please lubricate the O-rings in the filter bowls with the included acid-free silicone grease. Mount the filter housing at an easily accessible place. Connect the filter inlet with the outlet of the feed pump and the filter outlet via PVC hose with the high-pressure pump.
  • Page 20 Installation guide page 3 Fresh water flushing system Mount the filter housing for the charcoal filter at an easily accessible place between the fresh water pressure system and the pre-filter housing. Install the hose connections corresponding to the flow diagram. Attention: The maximum pressure in the inlet (seawater, fresh water flushing) must not exceed 2.5 bar.
  • Page 21 Installation guide page 4 High-pressure hose, to be cut into two parts according to your needs. To allow a flexible assembly, the high-pressure hose is provided as one piece of 4 meters (13.1 feet) with a V4A high-pressure fitting at both ends. Please fit the required lengths accurately before cutting the hose.
  • Page 22 Installation guide page 5 Attention: Secure the high-pressure connection fittings in the plastic end caps of the pressure pipe against twisting with a 19 mm open-ended wrench (not necessary on end caps fittings secured with metal strips) and tighten the union nut of the high-pressure hose with a 17 mm open-ended wrench with approx.
  • Page 23 Installation guide page 6 Tank for membrane conservation and cleaning The tank has to be mounted above the system to ensure the flow to the plant. If this is not possible, an additional feed pump has to be installed. The tank can be fastened to any plane surface with the help of the enclosed webbing and the plastic long eyelets.

  • Page 24: Electrical Connection

    400 Volt 50 Hz: 3 G 1.5 mm² (AWG 15), direction of rotation arbitrary. Supply line from the junction box to the feed pump: 3 G x 1 mm² (AWG 17) 230 /115 Volt 50/ 60 Hz Circuit diagram for Aquatec- Watermaker AC 65 up to AC 240...
  • Page 25 230 /115 Volt 50/ 60 Hz Circuit diagram AC 65 up to AC 240 incl. main switch (option) Circuit diagram for Aquatec- Watermaker Watermaker AC 65 / AC 240 Fresh water flushing automatic (Option)
  • Page 26 Circuit diagram for 400 Volt, Aquatec- Watermaker AC 150 bis AC 240 3 phase 400 Volt motor star circuit connection. Circuit diagram for 400 Volt, Aquatec- Watermaker AC 150 bis AC 240 Fresh water flushing automatic (Option) 3 phase 400 Volt motor star circuit connection.
  • Page 27 440 Volt 50/60Hz. Feed pump 3 phase (Option). Circuit diagram for 440 Volt 50/60 Hz, Aquatec- Watermaker AC 150 bis AC 240 3 phase 440 Volt 50/60 Hz. Motor star circuit connection. AC motor connection diagrams. Single phase motor 230V 50 Hz. Run Single phase motor 230V 50 Hz Run capacitor (C) without start capacitor.

  • Page 28: Change Rinsing Time (Fresh Water Flush)

    Change rinsing time (fresh water flush) Note: The necessary flushing time depends on the age of the membranes and power of the pressure water installation on-board. The flushing time, factory adjusted can be adapted individually to the circumstances anytime. Change the preset time with a little screwdriver on the time relay at the potentiometer (blue) optional within the range of 0-20...
  • Page 29 Maintenance In operation, regularly check all hose connections and hp pump for leaks. Important: Check oil level and condition Dipstick full screwed of the oil of the high-pressure pump into crankcase daily. Öl level If condensation occurs (continuous operation, warm environment) change oil immediate.
  • Page 30 For demounting the membranes, screw off the M6x20 screws each at both ends at the AQUATEC pressure vessel. (Screw tightening torque for the holding clips 3 Nm). Then take off the stainless steel holding clamps. Thereafter, pull the end caps out of the pressure pipe with a slight pull at the stainless steel-fittings of the pressure hoses and slightly sidewise movements.

  • Page 31: Memos

    Memos...

  • Page 32: Troubleshooting

    Troubleshooting Noisy operation, vibrations, unsteady pressure. Air in system ** Bleed system ** Intake clogged Clean intake Pre-filter dirty Clean or replace filter Feed pump defective Replace feed pump Valve defective or soiled *** Open valve caps and check valves, replace valves *** Pressure regulation valve dirty Clean valve Production falls...
  • Page 33 Troubleshooting Product amount of water too low: Cause Membrane is blocked or defect. Temperature seawater lower than 25 ° Celsius. Salinity seawater higher than 35,000 ppm. Reduced fresh water flow through blocked or dirty filters Insufficient fresh water rinsing after every use. Insufficient chlorine separation by the charcoal filter, assuming chlorine is or was present in the rinsing tank, chemicals or oil sucked in.
  • Page 34 Clamping torques and spare part-numbers high-pressure pump Note: When ordering spare parts, please name the serial number of the pump head necessarily. Crankcase 14 15 Secure with Loctite 270 built up to 2018 No.13 right side for belt drive only Attention: To unscrew nut no.
  • Page 35 Spare part-numbers high-pressure pump Note: When ordering spare parts, please name the serial number of the pump head necessarily. Description Description No. Order No. No. Order No. 141565 Drain plug ¼“ x 9 Pump head ss 1.4462 141410 Typ DC320-500-800, DD500, AC65-110 141483 141411 141453...
  • Page 36 Specification Technical data AQUATEC Watermaker AC 65 / AC 110 Membrane type 1 or 2 pc. Seawater SW 2540 Membrane Polyamide Thin-Film Composite Working Pressure 3-4% salinity, max. 55 bar Minimum Salt Rejection 99,5% PH Range 2 – 11 Free Chlorine Tolerance...
  • Page 37 Charcoal filter for fresh water flush Cartridge 9 7/8“ x 2,5“ (250 mm x 65 mm) Feed pump Aquatec typ 40 Magnetically coupled centrifugal pump, Power 140/200 Watt Voltage 220-240 Volt 50/60 Hz, Insulation class E, IP 44. Thermal Protected.
  • Page 38 Dimensions Motor pump unit AC 65 / AC 110 / AC 75 / AC 135 Motor pump unit AC 150 / AC 190 / AC 240...
  • Page 39 Dimensions Glossary Coarse filter (strainer) is mounted behind the thru-hull fitting beneath waterline and protects the feed pump from gross contamination. Feed pump provides for a good inlet to the high-pressure pump and extends by the inlet pressure the lifetime of the sediment filters. Sediment filters are mounted in front of the high-pressure pump and prevent the entry of smallest particles in the high-pressure pump and membranes.
  • Page 40 Manufacturing and marketing by AQUATEC-Watermaker, Owner Joachim Matz, Buergerm.-Schinkel-Str. 10a , 25348 Glueckstadt, Germany. Tel: +49(0)151 50933262 Mail: sup@aquatec-watermaker.de web: www.aquatec-watermaker.de Copyright Joachim Matz...
