  • Page 1 500...

  • Page 2: Table Of Contents

    Whether clean or colored, the sonic bliss does not stop at your mic locker. The skulpter 500 provides a balanced DI input with sig- nificant headroom, so just about any signal coming from guitars, basses, synths and effects will benefit greatly from the skulpter 500’s pristine amplification and versatile processing qualities.

  • Page 3: Compatibility

    Compatibility The skulpter 500 is a module to be installed into an API 500 se- ries compatible rack frame (not included). It needs the power supply and the audio connectors provided by this frame and does not function stand alone.

  • Page 4: Controls

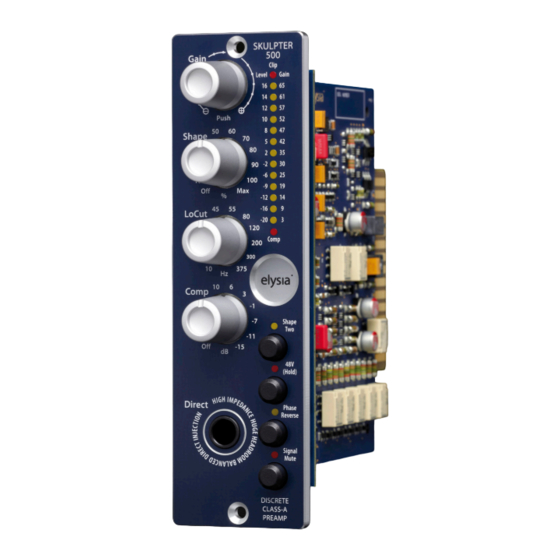

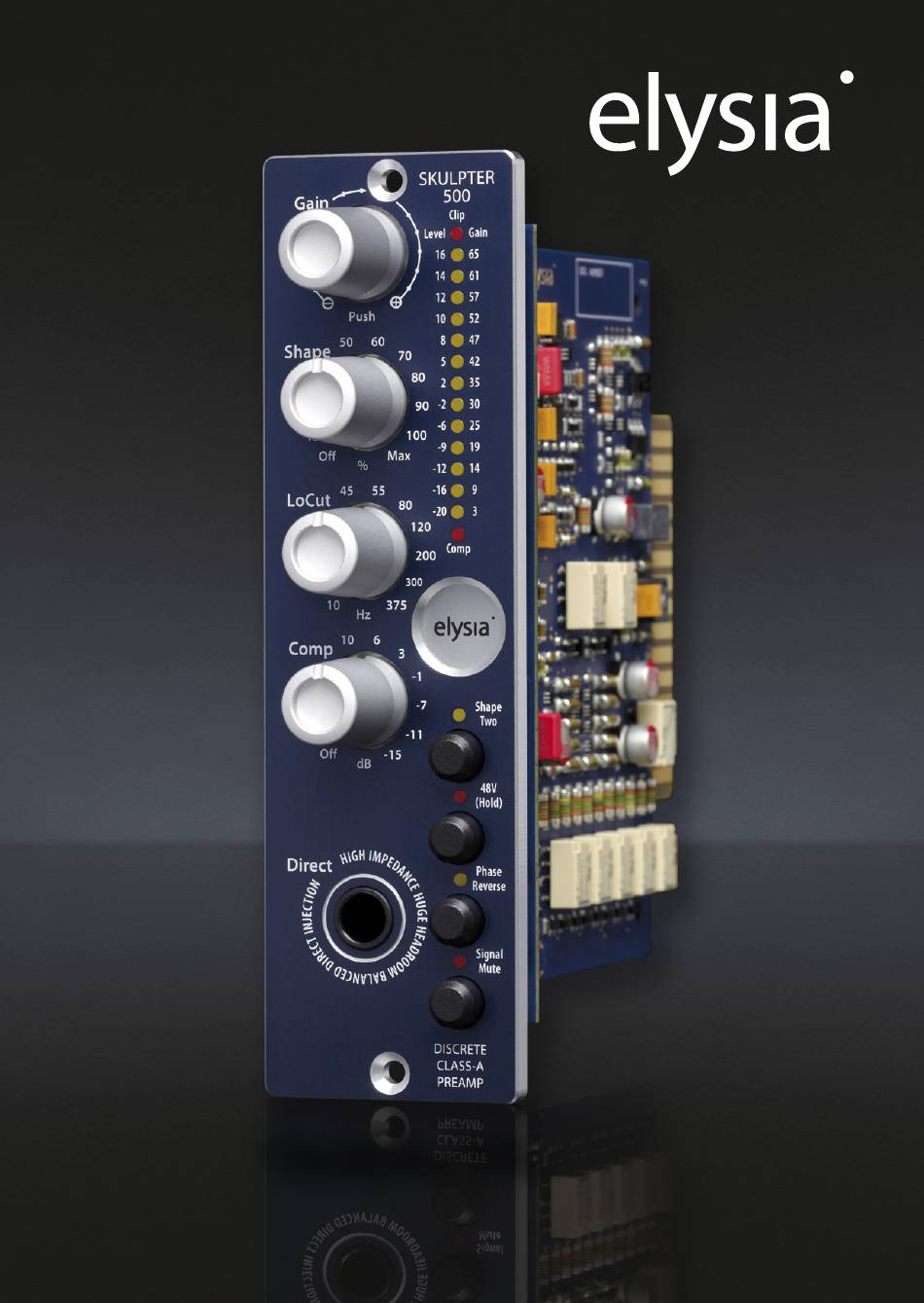

    SKULPTER Gain Push Shape LoCut Comp Direct DISCRETE CLASS-A PREAMP Controls Gain: Turn right to increase and left to decrease the amount of gain. Push to change LED display from output level meter to preamp gain indicator. Note: The actual mic preamp and the direct input each have a separate gain value.
  • Page 5 Shape: Turn right to increase saturation/filtering effects. Shape One is active per default; press corresponding button for Shape Two. (p. 8) LoCut: A variable low cut filter with a slope of 12 dB per octave, ranging from 10 to 375 Hz. Turn right to raise the cut- off frequency.

  • Page 6: Connectors

    Connectors Mic input (+19 dBu max) Pin assignment: 1 ground 2 hot (+) 3 cold (-) Note: Never use unbalanced cables/adaptors for connecting microphones. It will cause a destructive short circuit if phan- tom power is used, and even if phantom power is not used it can cause all kinds of unwanted noises.

  • Page 7: Audiophile Gain Staging

    When your skulpter 500 is powered off its current gain setting is saved automatically, so the preamp will start with exactly the same amount of gain on the next session.

  • Page 8: Dual Sound Shaper

    Dual Sound Shaper The very natural sound character of the skulpter 500 can be shaped by two independent combinations of saturation and specially tweaked filter curves. Any desired amount of this effect can be blended to the original signal with the Shape controller. Press the Shape Two button to switch from one style to the other.

  • Page 9: Variable Low Cut Filter

    Balanced DI The skulpter 500 can handle way more than “just” your complete microphone locker. An integrated front panel JFET DI makes it perfect for amplifying and shaping many kinds of different signals coming from gui- tars, basses, synths, effects...

  • Page 10: Intelligent Onboard Dynamics

    Intelligent Onboard Dynamics The skulpter 500 features an integrated compressor operated by just a single knob. Its potentiometer sets the threshold based on a fixed 3:1 ratio and a soft knee characteristic, while the attack and release parameters were selected for their universal usefulness.

  • Page 11: Multifunction Meter

    Another single LED located at the bottom of the meter shows the amount of compression applied to a signal if the dynamics section of the skulpter 500 is active. This LED also changes in brightness to visually represent the amount of compression applied.

  • Page 12: Appendix

    Maximum level Mic In/DI In/Out 19/19/21dBu Impedance Mic In/DI In/Out 13.6kohm/1megohm/62ohm CE Conformity elysia GmbH, Am Panneschopp 18, 41334 Nettetal, Ger- many, declares with sole responsibility that this product complies with the following norms and directives: • 2006/95/EG Low Voltage Directive (formerly 73/23/EWG or 93/68/EWG) •...
  • Page 13 Precautions CAUTION: Electricity • Make sure to operate your API 500 series compatible rack at the specific mains voltage of your country. • Replace rack frame fuse with the same type and value only. • Your rack frame must be connected to ground. •...
  • Page 14 Warranty Info The skulpter 500 is covered by a limited warranty for a period of two years against defects in parts and labor from the date of purchase. Natural wear is not covered by this warranty. Re- pairs or replacements will not extend the warranty period.
  • Page 15 GmbH. Other product and brand names contained in this document are used for identification purposes only. All registered trade- marks, product designations or brand names used in this doc- ument are the property of their respective owners.
