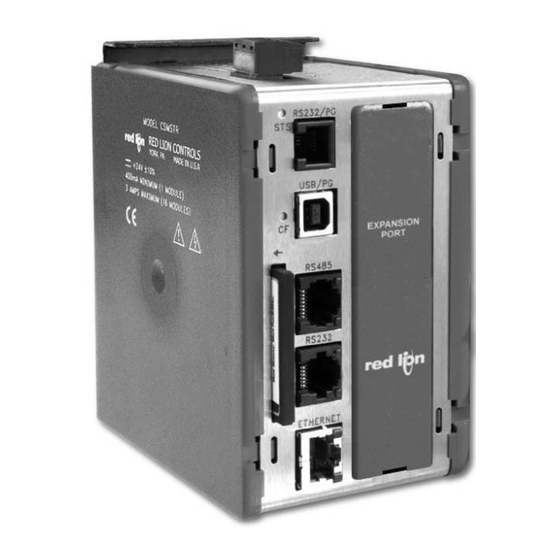

MODEL CSMSTR – ENHANCED MODULAR CONTROLLER SERIES MASTER
GENERAL DESCRIPTION
The Model CSMSTR is a communications and control platform designed for
use with Modular Controller Series slave modules. The CSMSTR uses a
proprietary high speed serial protocol to communicate, via backplane
connection, with up to 16 slave modules. Through the same connection, the
Master also provides power to the modules.
When powered up, the CSMSTR automatically identifies and addresses
connected slave modules. By storing the configuration information of all of the
modules, the CSMSTR is able to automatically configure modules if they are
replaced.
The Master provides high-speed RS232/422/485 communication ports and an
Ethernet port for connection to PCs, PLCs, and SCADA systems. An extensive
list of master and slave protocol drivers are available to allow the CSMSTR to
share and exchange variable data with external devices. The 10 Base-T/100
Base-TX Ethernet port can also be used to connect and share data with other
devices at high speeds. The virtual HMI feature allows you to create and control
an HMI from any networked PC. An onboard CompactFlash slot provides
storage for the Master's built-in data logger.
DIMENSIONS In inches (mm)
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
PROVIDES ENHANCED FEATURES FOR DATA ACQUISITION
OR MULTI-ZONE PID CONTROL APPLICATIONS
WEBSERVER PROVIDES WORLDWIDE ACCESS TO DATA
LOGS AND VIRTUAL HMI
VIRTUAL HMI OFFERS BUILT-IN PC-BASED SCADA
FUNCTIONALITY
PERFORMS HIERARCHICAL CONTROL OF OTHER MODULES
IN THE MODULAR CONTROLLER SERIES
STORES MODULE CONFIGURATION INFORMATION, AND
AUTOMATICALLY REPROGRAMS REPLACED MODULES
EXTENSIVE BUILT-IN DRIVER LIST ALLOWS EASY DATA
MAPPING TO PLCs, PCs, AND SCADA SYSTEMS
INDEPENDENT SERIAL PORTS PROVIDE VIRTUALLY
UNLIMITED INTEGRATION METHODS
10 BASE-T/100 BASE-TX ETHERNET CONNECTION PROVIDES
NETWORKING CAPABILITY
SUPPORTS UP TO 16 MODULAR CONTROLLER SERIES
MODULES
®
COMPACTFLASH SLOT ALLOWS PROCESS DATA TO BE
LOGGED DIRECTLY TO CSV FILES
The design of the Modular Controller Series high density packaging and DIN
rail mounting saves time and panel space. The controller snaps easily onto
standard top hat (T) profile DIN rail.
SOFTWARE
The CSMSTR is programmed with Windows
software. The software is an easy to use, graphical interface which provides a
means of communication configuration, as well as commissioning and
calibration of new systems.
CONTENTS OF PACKAGE
- CS Master
- Termination Plug
- Terminal Block for connecting power.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use the controller to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially harmful to
persons or equipment in the event of a fault to the controller. An independent and
redundant temperature limit indicator with alarm outputs is strongly
recommended.
Read complete instructions prior to installation
CompactFlash is a registered trademark of CompactFlash Association.
1
Bulletin No. CSMSTRSX-B
Drawing No. LP0610
Released 4/06
®
compatible Crimson 2.0
CAUTION: Risk of Danger.
and operation of the unit.
