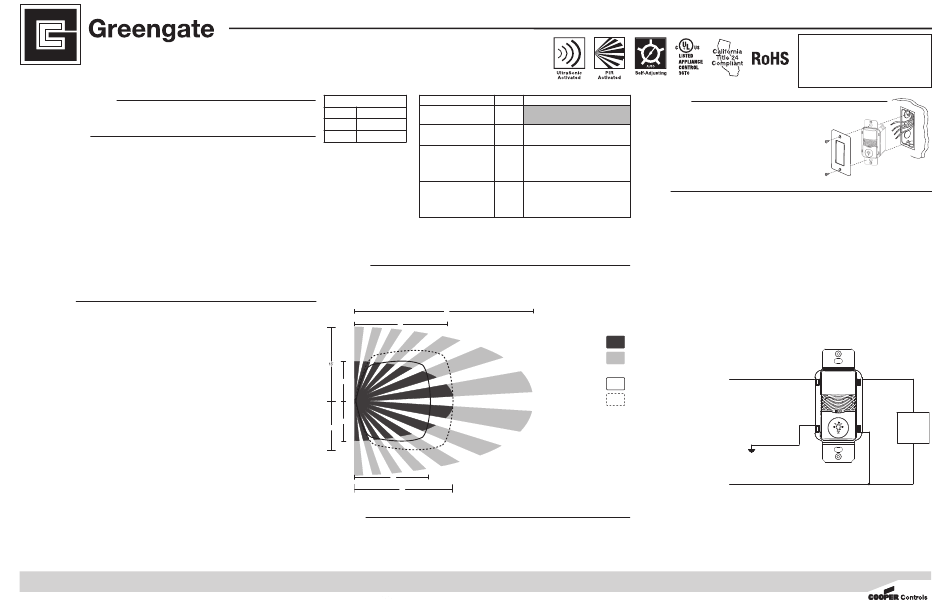

Cooper Controls Greengate ONW-D-1001-MV-N-W Installation Instructions

General Information
• Read all instructions on both sides of this sheet first. • For indoor use only.
• Install in accordance with ALL local codes.
Specifications
Technology: Passive Infrared (PIR) and Coverage: Major motion – 1000 sq. ft.
Ultrasonic (US)
Electrical Ratings Light Level Sensing: 0 to 200 foot-candles
120 VAC: Operating Environment:
• Incandescent/Tungsten – Max. load: 6.7 amps, • Temperature: 32° F – 104° F (0° C – 40° C)
800W, 50/60 Hz • Relative Humidity: 20% to 90% Non-condensing
• Fluorescent/Ballast – Max. load: 10 amps, 1200W, Housing: Durable, injection molded housing.
50/60 Hz Polycarbonate resin complies with UL94VO.
Motor Load: ¼ HP @ 125 VAC Size:
230/277 VAC: • Mounting Plate/Strap Dimensions:
• Fluorescent/Ballast – Max. load: 9.8 amps, 4.195" H x 1.732" W (106.553 mm x 44 mm)
2700W, 50/60 Hz • Product Housing Dimensions: 2.618" H x 1.752"
Ballast Compatibility: Compatible with magnetic and W x 1.9" D (66.5 mm x 44.5 mm x 48.26 mm)
electronic ballasts LED Indicators: Red LED indicates PIR detection; Green
No Minimum Load Requirement LED indicates Ultrasonic detection; Green LED acts as
Time Delays: Self-Adjusting, 15 seconds/test (10 min EcoMeter or night light locator.
Auto), Selectable 5, 15, 30 minutes
Description

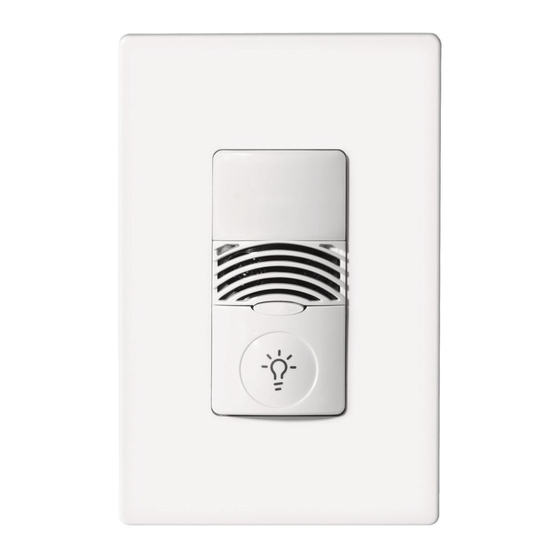

The ONW-D-1001-MV-N Occupancy Sensing Wall Switch is a Passive Infrared (PIR) and Ultrasonic (US) motion
sensing lighting control and conventional Wall Switch all-in-one, used for energy savings and convenience.
The sensor combines PIR and US technologies to monitor a room for occupancy.
PIR Technology
The sensor's segmented lens divides the field of view into sensor zones, and detects the changes in temperature
that are created when a person, or part of a person as small as a hand, passes into or out of a sensor zone.
US Technology
The sensor produces a low intensity, inaudible sound. It detects occupancy from changes in the acoustic waves
caused by motion, such as reaching for a telephone, turning a page in a book, walking into a room, turning in a swiv-
el chair, etc. The sensor does not respond to audible sound.
Dual Technology sensors ensure the greatest sensitivity and coverage for tough applications thus saving additional
energy. PIR is used to turn the lights ON and then either or both technologies are used to keep the lights ON.
The ONW-D-1001-MV-N allows the control of one load with one occupancy sensor switch.
The sensor can be configured to enhance energy savings by setting the unit for manual ON operation.
In Automatic ON Mode, the lights turn ON automatically when a person enters the room. In Manual ON Mode, the
lights are turned ON by pressing the universally recognized light icon Pushbutton. In either mode, the lights stay ON
as long as the sensor detects motion in the room. When the room is vacated, the lights turn OFF automatically after
a preset Time Delay interval.
The sensor includes self-adaptive technology that continually adjusts to conditions by adjusting sensitivity and
Time Delay in Real-time. By adjusting sensitivity and Time Delay automatically, the sensor is maximizing the poten-
tial energy savings that are available in the particular application.
The EcoMeter provides a visual indicator of energy usage, increasing end user awareness and reminding individu-
als to take control of their lighting to maximize energy savings.
The Daylighting feature prevents lights from turning ON, when the room is adequately illuminated by natural light.
Cooper Controls
203 Cooper Circle, Peachtree City, GA 30269
800-553-3879
www.coopercontrol.com
NeoSwitch Dual Technology Single Relay
Occupancy Sensing Wall Switch
(Neutral Required)
EcoMeter Operation
Load 1 EcoMeter LED
OFF ON
ON OFF
Minor motion – 300 sq. ft.
Walk-Through feature maximizes energy savings by not leaving the lights ON after a momentary occupancy. The
sensor will switch the lights ON when it detects a person entering the area. If the sensor does not continue to detect
motion 20 seconds following the initial activation, it will automatically go to a shorter 2 minute Time Delay.
Coverage
The ONW-D-1001-MV-N is designed for offices up to 300 square feet. Coverage testing has been performed accord-
ing to the NEMA WD7 Guideline.
,
8
,
8
,
10
Location
When installing the ONW-D-1001-MV-N in a new junction box, choose the switch location carefully to provide opti-
mum coverage of the occupied area. When replacing an existing Wall Switch, bear in mind that there must be a clear
Line-of-sight between the sensor and the area to be covered. Avoid pointing the ONW-D-1001-MV-N directly into the
hallway where it may detect passers-by.
Action EcoMeter Benefit
A person enters the space and
OFF
one of the loads is activated
The area is vacated and the Increased awareness of energy savings;
ON
lights turn OFF automatically Acts as a night light locator
Increased awareness of energy savings and
A person turns the lights OFF reminds individuals to take control of their
ON
manually upon exiting an area lighting for additional savings; Acts as
a night light locator.
The daylighting feature prevents
Increased awareness of energy savings and
the lights from automatically
ON lets the individual know that the
turning ON when a person
daylighting feature is working
enters an area
,
36
,
20
Minor Motion, IR
Major Motion, IR
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
The NEMA WD 7 Guide and robotic
method were utilized to verify
,
15
,
20

Installation Instructions

Installation
The ONW-D-1001-MV-N can be installed in any standard single
gang box. It may be installed in the same manner as an ordinary Wall
Switch.
• Wire the ONW-D-1001-MV-N as described in the wiring section.
• Mount the ONW-D-1001-MV-N in the junction box.
Wiring
CAUTION: Before installing or performing any service on a Greengate system, the power MUST be turned OFF
at the branch circuit breaker. According to NEC 240-83(d), if the branch circuit breaker is used as the main
switch for a fluorescent lighting circuit, the circuit breaker should be marked "SWD." All installations should
be in compliance with the National Electric Code and all state and local codes.
NOTE REGARDING COMPACT FLUORESCENT LAMPS: The life of some compact fluorescent lamps (CFLs) is
shortened by frequent automatic or manual switching. Check with CFL and ballast manufacturer to determine the
effects of cycling.
1. Make sure power is turned OFF at the branch circuit breaker.
2. Wire units as shown in wiring diagrams per applicable voltage requirements.
3. Mount unit to Wall Box.
4. Turn power back ON at the branch circuit breaker and wait 2 minutes for the unit to stabilize.
5. Make necessary adjustments. (See Checkout and Adjustments section)
6. Install Wall Switch plate.
Wiring Diagram 1:
120 to 277 VAC single level
120 to 277 VAC
single circuit wiring diagram
coverage patterns.
NEUTRAL
Model # ONW-D-1001-MV-N-W
Model # ONW-D-1001-MV-N-V
Model # ONW-D-1001-MV-N-LA
Model # ONW-D-1001-MV-N-G
Model # ONW-D-1001-MV-N-B
BLACK BLUE
GREEN
LOAD
WHITE
GROUND
