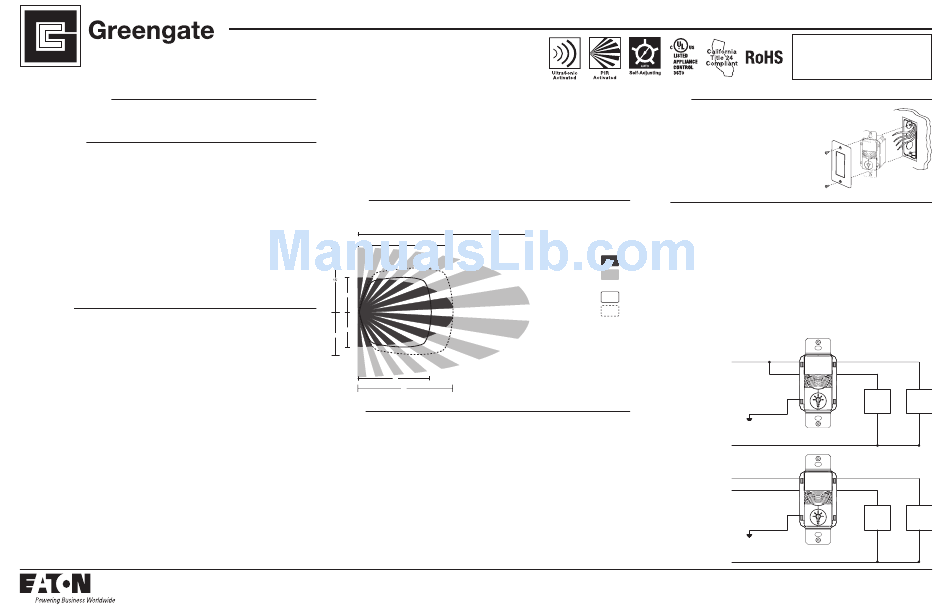

Cooper Controls ONW-D-1001-DMV-W Installation Instructions

P/N 9850-000317-01
General Information
• Read all instructions on both sides of this • Install in accordance with ALL local codes
sheet first • For indoor use only
Specifications
Technology: Passive Infrared (PIR) and Ultrasonic (US) Coverage: Major motion – 1000 sq. ft.
Electrical Ratings:
120 VAC: Light Level Sensing: 0 to 200 foot-candles
• Incandescent/Tungsten – Operating Environment:
Max. load: 6.7 amps, 800W, 50/60 Hz • Temperature: 32° F – 104° F (0° C – 40° C)
• Fluorescent/Ballast – • Relative Humidity: 20% to 90% non-condensing
Max. load: 10 amps, 1200W, 50/60 Hz Housing: Durable, injection molded housing.
Motor Load: ¼ HP @ 125 VAC Polycarbonate resin complies with UL 94VO.
277 VAC: Size:
• Fluorescent/Ballast – • Mounting Plate/Strap Dimensions:
Max. load: 9.8 amps, 2700W, 50/60 Hz 4.195" H x 1.732" W (106.553 mm x 44 mm)
Ballast Compatibility: Compatible with magnetic and • Product Housing Dimensions: 2.618" H x 1.752"
electronic ballasts W x 1.9" D (66.5 mm x 44.5 mm x 48.26 mm)
No Minimum Load Requirement LED Indicators: Red LED indicates PIR detection;
Time Delays: Self-Adjusting, 15 seconds/test (10 min
Green LED indicates Ultrasonic detection.
Auto), Selectable 5, 15, 30 minutes
Description
The ONW-D-1001-DMV Occupancy Sensing Wall Switch is a Passive Infrared (PIR) and Ultrasonic (US) motion
sensing lighting control and conventional wall switch all-in-one, used for energy savings and convenience.
The sensor combines PIR and US technologies to monitor a room for occupancy.
PIR Technology
The sensor's segmented lens divides the field-of-view into sensor zones, and detects the changes in temperature
that are created when a person, or part of a person as small as a hand, passes into or out of a sensor zone.
US Technology
The sensor produces a low intensity, inaudible sound. It detects occupancy from changes in the acoustic waves
caused by motion, such as reaching for a telephone, turning a page in a book, walking into a room, turning in a
swivel chair, etc. The sensor does not respond to audible sound.
Dual Technology sensors ensure the greatest sensitivity and coverage for tough applications thus saving
additional energy. PIR is used to turn the lights ON and then either or both technologies are used to keep the
lights ON.
The ONW-D-1001-DMV allows the control of two separate loads with one occupancy sensor switch.
Energy Saver Mode – Either or both loads may be configured to turn ON manually. The default setting for the
second load is Manual ON. This ensures the wall switch only activates one load. If both loads are ON when the
sensor times-out, only the primary load will be activated. If the lights were shut OFF manually, the unit will activate
the primary load only.
In Automatic ON Mode, the lights turn ON automatically when a person enters the room. In Manual ON Mode, the
lights are turned ON by pressing the universally recognized light icon pushbutton. In either mode, the lights stay ON
as long as the sensor detects motion in the room. When the room is vacated, the lights turn OFF automatically after
a preset time delay interval.
The sensor includes self-adaptive technology that continually adjusts to conditions by adjusting sensitivity and
time delay in real-time. By adjusting sensitivity and time delay automatically, the sensor is maximizing the potential
energy savings that are available in the particular application.

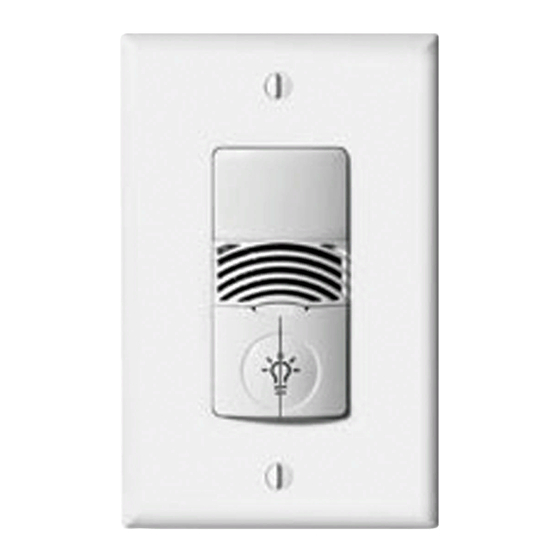

NeoSwitch Dual Technology Dual Relay
Occupancy Sensing Wall Switch
(Ground Required)
The Daylighting feature prevents lights from turning ON, when the room is adequately illuminated by natural light.
Walk-Through feature maximizes energy savings by not leaving the lights ON after a momentary occupancy. The
sensor will switch the lights ON when it detects a person entering the area. If the sensor does not continue to detect
motion 20 seconds following the initial activation, it will automatically go to a shorter 2 minute time delay.
Bathroom Mode – When selected, bathroom mode keeps the second relay ON for an additional 8 minutes, after the
first relay has been turned OFF. Combine this with changing the pushbutton to the light/fan graphic and you now have
the universally recognized and easy to use bathroom solution.
Relay Swap Option – A common problem in electric wiring is wiring the wrong switch to the wrong load. This can
Minor motion – 300 sq. ft.
make control of loads confusing to an end user. The Relay Swap option solves the problem by allowing the switch
buttons on the face of the unit to be swapped, after the unit is wired and installed.
Coverage
The ONW-D-1001-DMV is designed for offices up to 300 square feet.
,
8
,
8
,
10
Location
When installing ONW-D-1001-DMV in a new junction box, choose the switch location carefully to provide optimum
coverage of the occupied area. When replacing an existing wall switch, bear in mind that there must be a clear line-of-
sight between the sensor and the area to be covered. Avoid pointing the ONW-D-1001-DMV directly into the hallway
where it may detect passers-by.
,
36
,
20
Minor Motion, IR
Major Motion, IR
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
The NEMA WD 7 Guide and robotic
method were utilized to verify
, coverage patterns.
15
,
20

Installation Instructions

Model # ONW-D-1001-DMV-W
Model # ONW-D-1001-DMV-V
Model # ONW-D-1001-DMV-LA
Model # ONW-D-1001-DMV-G
Model # ONW-D-1001-DMV-B
Installation
The ONW-D-1001-DMV can be installed in any standard single gang box. It may be
installed in the same manner as an ordinary wall switch.
• Wire the ONW-D-1001-DMV as described in the wiring section
• Mount the ONW-D-1001-DMV in the junction box
Wiring
CAUTION: Before installing or performing any service on a Greengate system, the power MUST be turned
OFF at the branch circuit breaker. According to NEC 240-83(d), if the branch circuit breaker is used
as the main switch for a fluorescent lighting circuit, the circuit breaker should be marked "SWD." All
installations should be in compliance with the National Electric Code and all state and local codes.
NOTE REGARDING COMPACT FLUORESCENT LAMPS: The life of some compact fluorescent lamps (CFLs) is
shortened by frequent automatic or manual switching. Check with CFL and ballast manufacturer to determine the
effects of cycling.
1. Make sure power is turned OFF at the branch circuit breaker.
2. Wire units as shown in wiring diagrams per applicable voltage requirements.
3. Mount unit to wall box.
4. Turn power back ON at the branch circuit breaker and wait 2 minutes for the unit to stabilize.
5. Make necessary adjustments. (See Checkout and Adjustments section)
6. Install wall switch plate.
Wiring Diagram 1:
120/277 VAC BLACK
120/277 VAC dual level single
circuit wiring diagram
RED
GREEN
GROUND
NEUTRAL
Wiring Diagram 2:
CIRCUIT 1
BLACK
120/277 VAC
120/277 VAC dual level
CIRCUIT 2
dual circuit wiring diagram RED
120/277 VAC
GREEN
GROUND
NEUTRAL
BLUE
RED
LOAD 2 LOAD 1
BLUE
RED
LOAD 2 LOAD 1
