Summary of Contents for MOULDPRO SZxxx0 Series

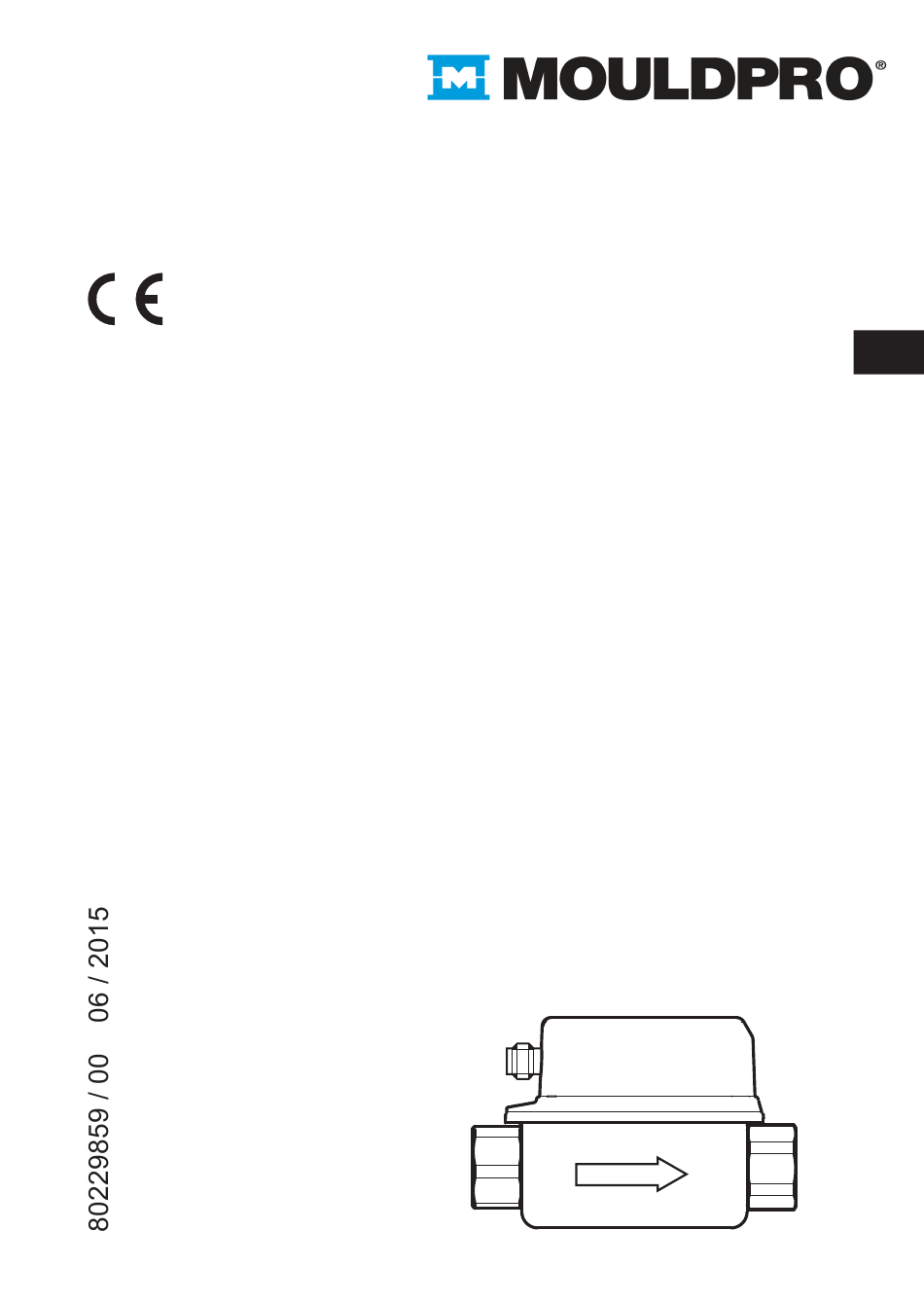

  • Page 1 Operating instructions Vortex flow meter SZxxx0...
  • Page 2: Table Of Contents

    Contents 1 Safety instructions �����������������������������������������������������������������������������������������������3 2 Functions and features ����������������������������������������������������������������������������������������3 3 Function ���������������������������������������������������������������������������������������������������������������4 4 Installation������������������������������������������������������������������������������������������������������������4 5 Electrical connection ��������������������������������������������������������������������������������������������6 6 Operating and display elements ��������������������������������������������������������������������������7 7 Menu ��������������������������������������������������������������������������������������������������������������������8 7�1 Main menu �����������������������������������������������������������������������������������������������������8 7�1�1 Explanation main menu ������������������������������������������������������������������������9 7�2 Extended functions – basic settings ������������������������������������������������������������10 7�2�1 Explanation basic settings (CFG) �������������������������������������������������������...
  • Page 3: Safety Instructions

    1 Safety instructions • Please read this document prior to set-up of the unit� Ensure that the product is suitable for your application without any restrictions� • If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property can occur�...
  • Page 4: Function

    3 Function • The unit detects the volumetric flow quantity based on the Vortex measuring principle� • It features an IO-Link interface� • The unit displays the current flow and temperature� It generates 2 output signals according to the parameter setting: OUT1/IO-Link: 2 selection options - switching signal for volumetric flow quantity limit value - or frequency signal for volumetric flow quantity...
  • Page 5 Disturbance Inlet pipe length Outlet pipe length Non-ideal bend ≥ 5 x DN ≥ 1 x DN Ideal bend ≥ 0.5 x DN Multiple bends (2 x 90°) ≥ 15 x DN Reduction of internal pipe diameter ≥ 15 x DN ≥...
  • Page 6: Electrical Connection

    5 Electrical connection The unit must be connected by a qualified electrician� The national and international regulations for the installation of electrical equipment must be adhered to� Voltage supply according to EN 50178, SELV, PELV� ► Disconnect power� ► Connect the unit as follows: BK: black BN: brown OUT2...
  • Page 7: Operating And Display Elements

    6 Operating and display elements 1 and 2: switching status LEDs • LED 1 = switching status OUT1 (lights when output 1 is switched) • LED 2 = switching status OUT2 (lights when output 2 is switched) 3: TFT display •...
  • Page 8: Menu

    7 Menu 7.1 Main menu Process value display (RUN) FEP1 FrP1 FSP2 FEP2 FrP2 CFG, MEM, DIS 1: Output functions ou1 (→ 7.2.1) 2: Output functions ou2 (→ 7.2.1) The parameters are only displayed when selected at ou1 / ou2�...
  • Page 9: 7�1�1 Explanation Main Menu

    7.1.1 Explanation main menu Switching output with hysteresis function Set point 1 = upper limit value at which OUT1 switches� Reset point 1 = lower limit value at which OUT1 switches off� Set point 2 = upper limit value at which OUT2 switches� Reset point 2 = lower limit value at which OUT2 switches off�...
  • Page 10: 7�2 Extended Functions - Basic Settings

    7.2 Extended functions – basic settings Main menu - - - - Hno Hnc Fno Fnc FRQ Info Hno Hnc Fno Fnc FRQ 0,0...60 s 0,0...60 s 0,0...60 s 0,0...60 s l/min PnP nPn 0,0...5,0 s FOU1 FOU2 SEL2 FLOW TEMP The parameters are only displayed when oux = Hno, Hnc, Fno, Fnc�...
  • Page 11: 7�2�1 Explanation Basic Settings (Cfg)

    Restoring the factory settings Info Device information Submenu basic settings Submenu min/max memory Submenu display settings 7.2.1 Explanation basic settings (CFG) Output function OUT1 • Flow: Hno, Hnc, Fno, Fnc, FRQ Output function OUT2 • Flow: Hno, Hnc, Fno, Fnc, FRQ •...
  • Page 12: 7�3 Extended Functions - Min / Max Memory - Display

    7.3 Extended functions – min / max memory – display Main Menu 0,0 l/min Lo.F 0,0 l/min Hi.F Info 0,0 °C Lo.T 0,0 °C Hi.T L1 L2 diS.L d1 d2 d3 diS.U 0 90 180 270 diS.R 25 50 75 100 OFF diS.B coL.F OFF rEd...
  • Page 13: 7�3�1 Explanation Min/Max Memory (Mem)

    7.3.1 Explanation min/max memory (MEM) Lo�F Minimum value of the flow measured in the process Hi�F Maximum value of the flow measured in the process Lo�T Minimum value of the temperature measured in the process Hi�T Maximum value of the temperature measured in the process 7.3.2 Explanation display function (DIS) diS�L Standard layout of the display(L1: flow or L2: flow and temperature)
  • Page 14: 8�1 Parameter Setting In General

    The parameters can also be set via the IO-Link interface� 8.1 Parameter setting in general 1� Change from RUN mode to the main menu [●] 2� Selection of the requested parameter [▲] or [▼] 3� Change to setting mode [●] 4�...
  • Page 15 Parameter Factory setting User setting FOU1 (FLOW) FOU2 (FLOW, TEMP) SEL2 FLOW (FLOW, TEMP) col.F (FLOW) col.T (TEMP) l/min (SVx6xx: gpm) 0.6 s diS.L diS.U diS.R diS.B 75 % cFH.F cFL.F cFH.T cFL.T MEW = final value of the measuring range MAW = initial value of the measuring range * The percentage values refer to the final value of the measuring range�...
