U3 SET MANUAL
MICROPHONE
WIRELESS SYSTEM

Advertisement

Table of Contents
loading

Related Manuals for Xvive Audio U3

Summary of Contents for Xvive Audio U3

  • Page 1 U3 SET MANUAL MICROPHONE WIRELESS SYSTEM...
  • Page 2 This Class B digital apparatus complies with Canadian CAUTION ICES-003. RISK OF ELECTRIC SHOCK DO NOT OPEN IC Caution: RSS-Gen Issue 4 December 2014"&"CNR-Gen 4e Décembre 2014: WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK: DO NOT REMOVE SCREWS. This device complies with Industry Canada licence-exempt NO USER-SERVICEABLE PARTSINSIDE.

  • Page 3: Fcc Certification

    FCC CERTIFICATION THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential OPERATION IS SUBJECT TO THE FOLLOWING TWO installation. This equipment generates, uses and can radiate CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL radio frequency energy and, if not installed and used in...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE U3 MICROPHONE WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions carefully in the U3 manual. 3. Do not place near heat sources, such as radiators, heat 2.
  • Page 5 U3 SET PRODUCT INTRODUCTION PACKAGE DETAILS U3 Transmitter 1PCS system, Approved for use in worldwide. U3 Receiver 1PCS USB Cable 1PCS channels. Manual 1PCS 1PCS reflection and interference ) Transmitter & Receiver) condenser microphones. Mic mode for microphone and Line mode for other Gear output of traditional wireless microphone systems.

  • Page 6: Quick Start

    QUICK START 1. Plug the Transmitter into the XLR dynamic microphone 2. Plug the Receiver into the Mixer. and battery-powered condenser microphones.
  • Page 7 QUICK START Hello! 3. Turn on the Transmitter and the 4. After connecting successfully, the LED lights on receiver will through the microphone. stay on.

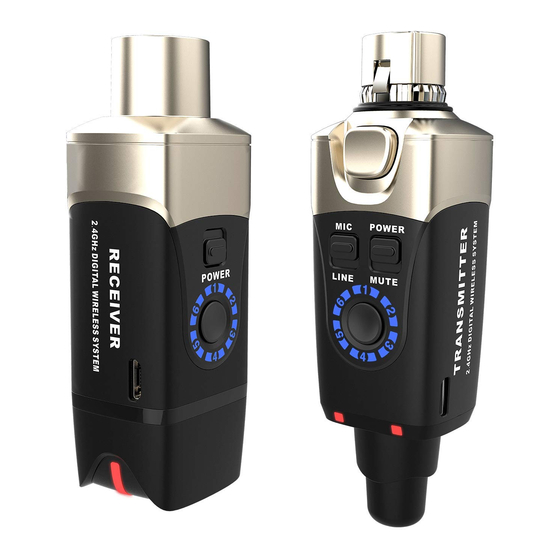

  • Page 8 BASIC OPERATION U3 TRANSMITTER Spring: Circumferential ground spring providing an accurate connection to the mating shell Input level switch: MIC = 0dB input LINE = -10dB input Power switch: switches unit on/off Channel status LED: indicates selected channel Channel switch: selects Channels 1-6...
  • Page 9 BASIC OPERATION U3 RECEIVER Power switch: switches the unit on and off Channel status LED: indicates selected channel Channel switch: selects Channels 1-6 USB Port: For charging the battery RF Status LED: Flashing = Signal connection interference Power status Led: indicates power status.

  • Page 10: Specifications

    SPECIFICATIONS U3 MICROPHONE WIRELESS SYSTEM Tuning Bandwidth Up to 90ft. Actual Range Depends On Rf Signal Absorption, Reflection And Interference. Audio Frequency Response rophone Type Or Input Signal. Dynamic Range 110dB Battery Life Up To 5 Hours RF Sensitivity -88dBm Total Harmonic distortion 0.2%...
  • Page 11 U3 TRANSMITTER U3 RECEIVER Dimensions 31 X 29 X 98 mm 31 X 29 X 98 mm Weight Housing Molded Plastic And Cast Metal Molded Plastic And Cast Metal Battery 3.7V Rechargeable Li-lon, 860mA 3.7V Rechargeable Li-lon, 860mA Impedance Input...

  • Page 12: Batteries And Charging

    2 hours 2:30 5 hours * Always store U3 at room temperature state regularly and charge if necessary. Connect Power Note: Turn off the power switch while charging. Please do not use U3 when charging, which may reduce battery life.
  • Page 13 2422MHz, 2456MHz, 2458MHz products. 3) In case of environmental interference from other WiFi * U2 1~4 channels are the same as U3/U3C 1~4 channels, systems, shorten the distance between the receiver U2 and U3/U3C use in sametime max is 6 sets.

  • Page 14: Troubleshooting

    TROUBLESHOOTING ISSUE SOLUTION No Sound The Receiver can be paired with one Transmitter at a time. Distortion or Faint Sound Signal instability: RF LED Unable to switch the channel Multiple connect Use one transmitter can connect with more than 2 receivers.

  • Page 15: Application Scene

    APPLICATION SCENE Live Sound Mixers Dynamic Microphone Portable PA Systems DI Or XLR Output Gear U3 Receiver Recorders U3 Transmitter Mixer U3 SET DYNAMIC MICROPHONE WIRELESS SYSTEM...
