Summary of Contents for Xvive Audio U3

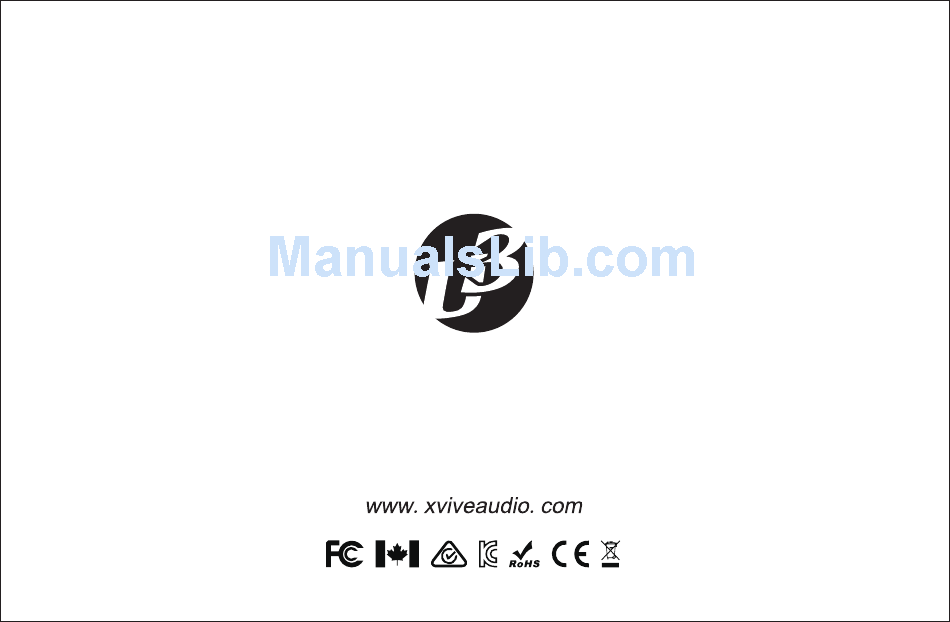

- Page 1 SHENZHEN FZONE TECHNOLOGY CO., LTD. 2nd floor, Building 12, Xicheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Guangdong China. 518101 E-mail: nancy@xviveaudio.com...
- Page 2 MANUAL MICROPHONE WIRELESS SYSTEM...
- Page 3 CAUTION RISK OF ELECTRIC SHOCK CERTIFICATION DO NOT OPEN WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC This Class B digital apparatus complies with Canadian SHOCK: DO NOT REMOVE SCREWS. ICES-003. NO USER-SERVICEABLE PARTSINSIDE. Radio Approvals: FCC Part 15.249, FCC Part 15 B, RSS-210 REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
-
Page 4: Fcc Certification
FCC CERTIFICATION FCC Rules. These limits are designed to provide reasonable THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO protection against harmful interference in a residential installation. This equipment generates, uses and can radiate CONDITIONS: radio frequency energy and, if not installed and used in (1) THIS DEVICE MAY NOT CAUSE HARMFUL... - Page 5 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS IN A SAFE PLACE WARNING: BEFORE USING YOUR XVIVE U3 MICROPHONE WIRELESS SYSTEM, CAREFULLY READ THE OPERATING INSTRUCTIONS. 1. Observe all instructions carefully in the U3 manual. 3. Do not place near heat sources, such as radiators, heat 2.
- Page 6 • High Resolution 24-bit/48kpbs Audio • Dynamic Range 110dB • Signal to Noise Ratio is 110dB • U3 wireless aims to take the complexity and frustration, out of traditional wireless microphone systems. Creating a flexible, all-in-one solution that makes any your favorite...
- Page 7 QUICK START 1. Plug the Transmitter into the Dynamic Microphone 2. Plug the Receiver into the Mixer.
- Page 8 QUICK START Hello! 3. Turn on the Transmitter and the 4. After connecting successfully, 5. Check the connection by talking receiver and check the Channel. the LED lights on receiver will through the microphone. stay on.
-
Page 9: Basic Operation

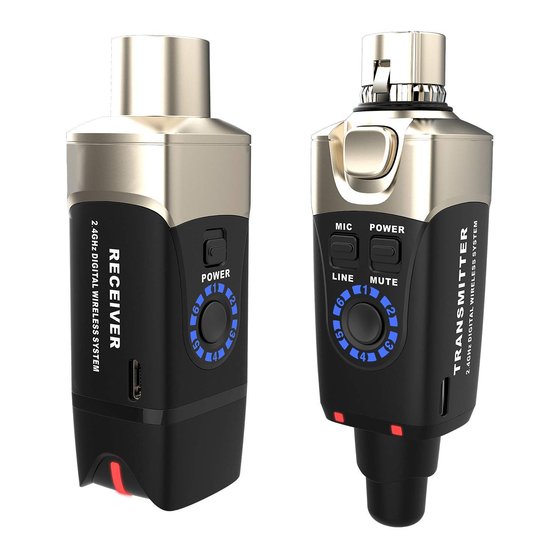

BASIC OPERATION TRANSMITTER Mic In – XLR microphone input jack Spring - Circumferential ground spring providing an accurate connection to the mating shell Mic Lock – secures transmitter to the microphone Input level switch – MIC = 0dB input; LINE = -10dB input Power switch –... - Page 10 BASIC OPERATION RECEIVER XLR OUT - XLR microphone input jack Power switch – switches the unit on and o Channel status LED - indicates selected channel Channel switch - selects Channels 1-6 USB Port – For charging the battery RF Status LED – ON = Transmitter is on and link is established Flashing = Signal connection interference OFF = Transmitter o or unlinked...
-
Page 11: Specifications
SPECIFICATIONS U3 MICROPHONE WIRELESS SYSTEM Tuning Bandwidth 2400 – 2483.5MHz Indoors 90ft Working Range Actual range depends on RF signal absorption, reflection and interference. Audio Frequency Response 20Hz – 20KHz(-3dB). Dependent on microphone type or Input signal. Dynamic Range 110dB... - Page 12 TRANSMITTER RECEIVER Dimensions 31 x 29 x 98 mm 31 x 29 x 98 mm Weight Housing Molded Plastic and cast Metal Molded plastic and cast metal Battery 3.7V Rechargeable Li-lon, 860mA 3.7V Rechargeable Li-lon, 860mA Impedance Input 15KΩ(1KHZ) Output 470Ω(1KHZ) Audio Input Connector Balanced XLR male input Audio Output Connector...
- Page 13 1 hours 1:00 2 hours 2:30 5 hours * Always store U3 at room temperature * When storing the unit, please check the battery state regularly and charge if necessary. Connect Power Connect to the socket Note: In an emergency, power can be supplied via a USB wall...
- Page 14 2.4 GHz SPECTRUM OVERVIEW AND INTERFERENCE 2.4Ghz Frequency Tables U3 operates within the 2.4GHz ISM band which is utilized by Wi-Fi, Bluetooth, and other wireless devices. 2.4Ghz is CHANNEL 1 2402MHz, 2480M Hz, 2482MHz an open band and, as such, does not require a license to be...
-
Page 15: Troubleshooting
SOLUTION • Check that the U3 Receiver's blue RF LED is lit. • Check that the microphone is turned on and receiving signal from the U3 Transmitter No Sound • Check that the power switch is turned on for both the Transmitter and the Receiver. - Page 16 APPLICATION SCENE Live Sound Mixers Dynamic Microphone Portable PA Systems DI Or XLR Output Gear Recorders MICROPHONE WIRELESS SYSTEM...
