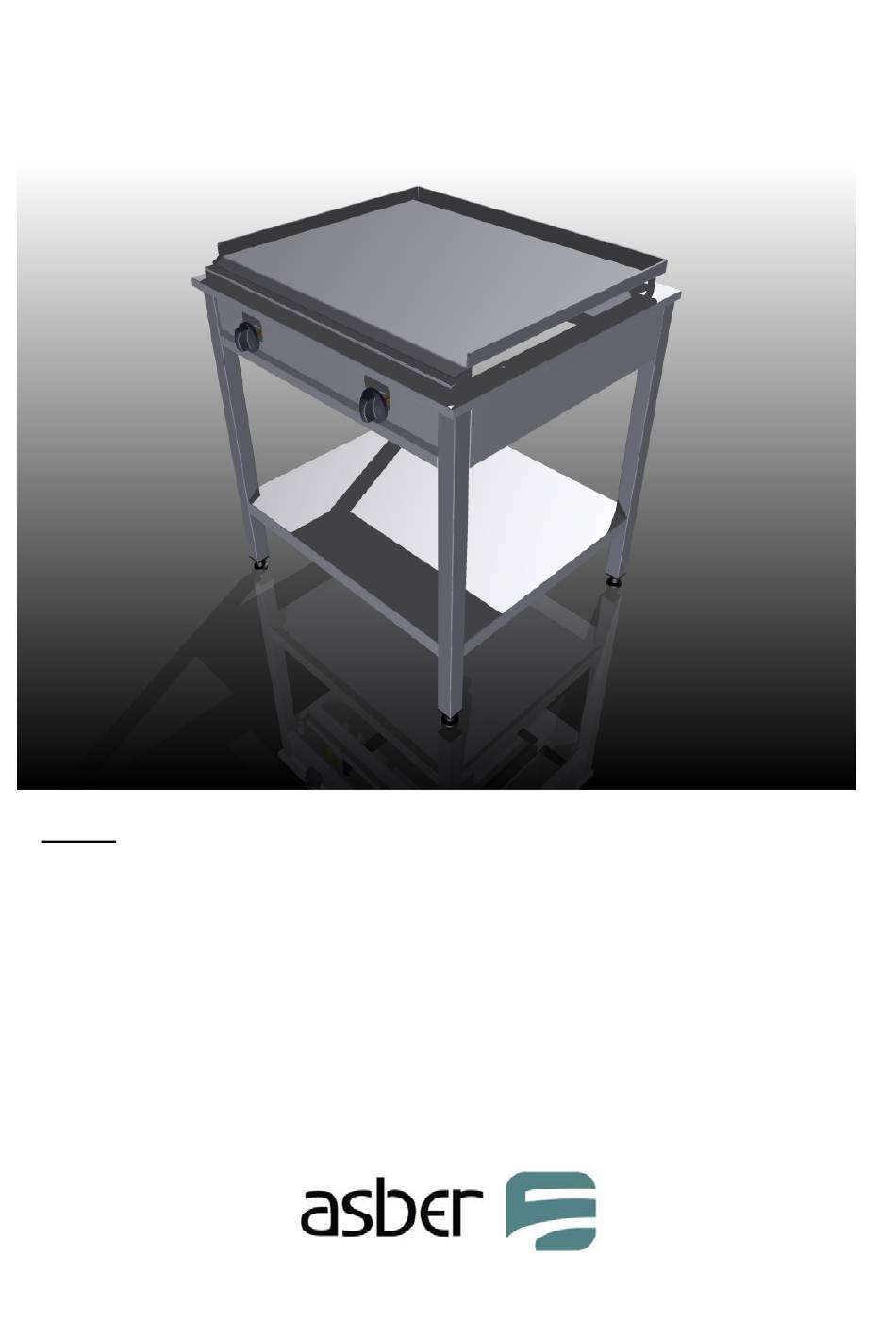

- Page 1 General instruction for installation, use and maintenance ELECTRIC FRY TOP Models: EFTE-400 EFTE-800 EFTE-400T EFTE-800T...
-
Page 2: Table Of Contents
Nevertheless, we recommend you thoroughly read this manual compiled by FAGOR's kitchen supervisors, in order to benefit to the maximum from the multiple possibilities and advantages this appliance offers you. Keep this manual near to the appliance and at all times in an accessible place. ASBER INDEX INSTALATION .......................... 3 General and connection dimensions .................. 3 ... -
Page 3: Instalation
INSTALATION General and connection dimensions EFTE-400 EFTE-400T... - Page 4 EFTE-800 EFTE-800T W – pointer P – termostat control K – control light CO – reset switch of safety thermostat ...
- Page 5 REGULATED LEGS Drawing 1 OFF MINIMUM MAXIMUM Drawing 2...
-
Page 6: Technical Specifications
Technical specifications Table 1 Model EFTE-400 EFTE-800 Width Depth External [mm] dimension Height Height T model NET WEIGHT [kg] NET WEIGHT T models [kg] Heating elements Resistance 1,4 kW Wire cross 5 x 1,5mm 5 x 2,5mm Electric power 380-415 V... -
Page 7: Positioning And Leveling
Positioning and leveling ∗ The positioning and gas installation should always be carried out by an AUTHORISED TECHNICIAN, observing the standards of each country. ∗ It is advisable to install an extraction hood for the optimum operation of the appliance. ∗ Place the appliance in a well ventilated place. ∗... -
Page 8: Use
USE Using the appliance Turning the fry top ON Activate the power switch located outside of the device (if installed). Turn the adjustment thermostat control “P” clockwise until control light “K” turns ON. Turn the adjustment thermostat control “P” clockwise to the required position Fig. 2. Operation When the vat reaches the selected temperature the thermostat light turns OFF and the resistors stop operating. -
Page 9: Maintenance
MAINTENANCE Daily cleaning. Clean all the stainless steel surfaces and the inside of the plate daily with lukewarm water and detergent. Rinse with plenty of cold water and dry it, paying special attention to the bottom of the fry-top plate. Do not scratch the stainless steel surfaces with spatulas or iron wire brushes. -
Page 10: Environmental Protection Recommendation
ENVIRONMENTAL PROTECTION RECOMMENDATION On ending its useful life, this product must not be thrown away in a standard rubbish bin, but must be left in an electrical waste and electronic equipment collection point for recycling. This is confirmed by the symbol on the product, user manual, or packaging. Depending on the symbol, the materials can be recycled.
