Pre-Rinse Faucet Kits
Installation Instructions
BKF-SMPR-WB-G
BKF-BDMPR-WB-G BKF-DMPR-WB-G
BKF-8HDDPR-WB-G BKF-4HDDPR-WB-G

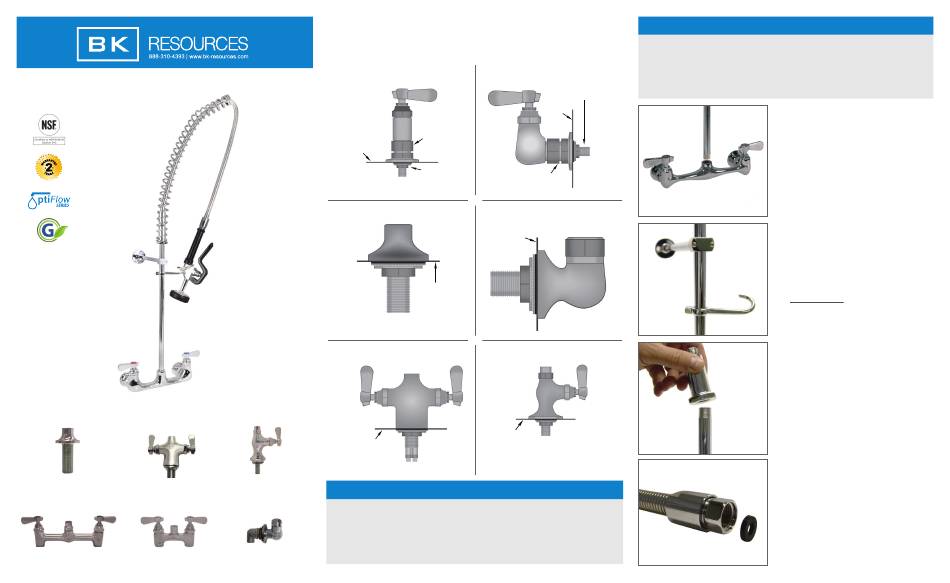

Step 1
Mount your faucet body to the sink or other application utilized in the
drawings below.
Deck Mount Dual Valve
Sink Deck
Single Deck Mount
Deck Mount Dual Valve
Sink Deck
BKF-SDMPR-WB-G
Faucet Installation Notes:
Mounting kits are not included with all models. Kits (BK-DMMK
or BK-DMMK-90) are available if needed or inquire with your
plumbing professional. Some models include couplings that allow for
connection to ½" threaded pipe. Pipe is not included with the unit.
BKF-BWMPR-WB-G
Splash Mount Dual Valve
Mounting Kit
Not Included
Sink
Backsplash
Tighten Coupling
Mounting Kit
Tighten Coupling
Not Included
Single Splash Mount
Sink
Backsplash
Sink Deck
Deck Mount Single Valve
Sink Deck
Required Tools and Installation Notes:
You will need the following tools to install your new BK
Resources faucet. Two adjustable wrenches, Phillips
screwdriver, saw for cutting metal, Teflon tape or approved
compound for sealing the threaded pipe connections.
Step 2
Install riser pipe into faucet body.
After applying Teflon tape or
appropriate compound to threads on
bottom of the riser pipe (BK-PR-18-
RP-G) to prevent leaks, thread it into
the faucet body of the pre-rinse unit.
Step 3
Install wall bracket and hook.
Arm must be cut to proper length.
Mount the Riser Pipe (BK-PR-18-
RP-G) to the wall with the Wall Bracket
(BK-PR-WB). Measure distance from
back of the Riser Pipe to the wall and
deduct ¼". After cutting the arm on
the non-threaded end, securely mount
to wall and riser pipe. Then mount
Spray Head Retaining Hook (BK-PR-
SHR) to riser pipe.
Step 4
Install spring stop onto riser pipe.
Apply Teflon tape or appropriate
compound to the threaded top of
the Riser Pipe ( BK-PR-18-RP-G)
to prevent leaks and thread Spring
Stop/Retainer (BK-PR-SPR) to pipe.
Securely tighten with wrench.
Step 5
Insert washer into hose.
Make sure that the appropriate washer
that is included separately in your box
is placed in the end of the pre-rinse
hose (BKH-44-G).
