Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

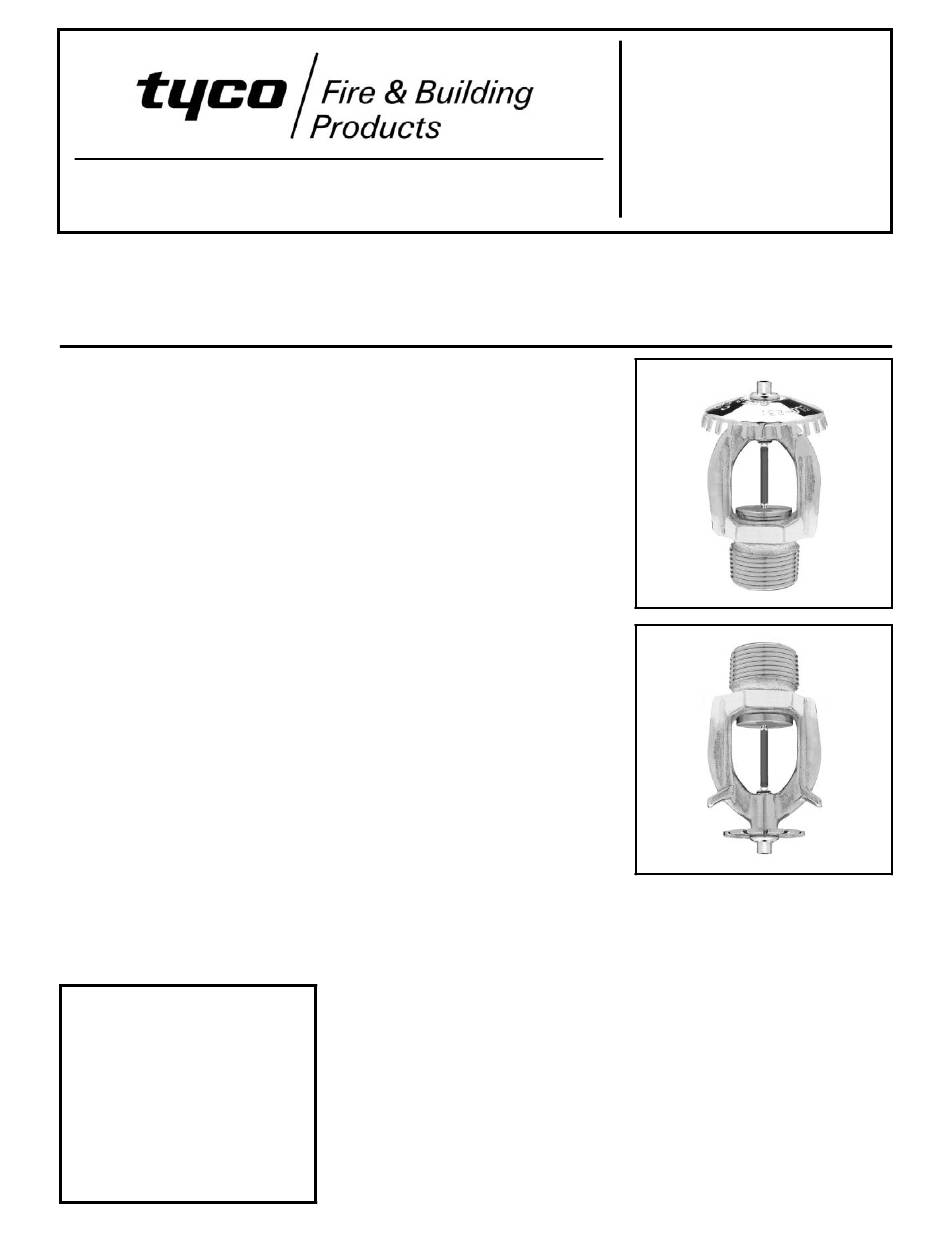

Series ELO-231FRB — 11.2 K-factor
Upright and Pendent Sprinklers
Quick Response, Standard Coverage
General
Description

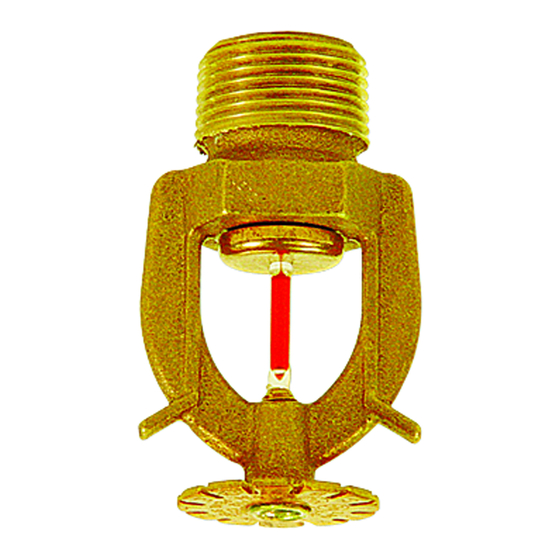

The 11.2 K-factor, Series ELO-
231FRB, Quick Response, Standard
Coverage, Upright and Pendent Sprin-
klers (Ref. Figure 1) are automatic
sprinklers of the frangible bulb type.
They are "quick response - spray
sprinklers" that produce a hemispheri-
cal water distribution pattern below the
deflector.
The 11.2 K-factor, ELO-231FRB Up-
right and Pendent Sprinklers were
subjected to full scale, high-piled stor-
age, fire tests to qualify their use in lieu
of 5.6 or 8.0 K-factor standard spray
sprinklers for the protection of high-
piled storage.
Higher flow rates can be achieved at
much lower pressures with the 11.2
K-factor, ELO-231FRB Sprinklers —
making their use highly advantageous
in high density applications, such as
the protection of high-piled storage.
For in-rack applications an upright in-
termediate level version of the Series
ELO-231FRB Sprinklers can be ob-
tained by utilizing the Series ELO-
231FRB Upright Sprinkler with the
WSG-2 Guard & Shield, and a pendent
intermediate level version of the Se-
ries ELO-231FRB Sprinklers can be
obtained
by
utilizing
the
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
ELO-231FRB Pendent Sprinkler with
the WS-2 Shield. If there is a possibility
of the pendent intermediate level ver-
sion being exposed to mechanical
damage, a G-2 Guard can be added.
WARNINGS
The 11.2 K-factor, Series ELO-
231FRB Upright and Pendent Sprin-
klers described herein must be in-
stalled and maintained in compliance
with this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do
so may impair the performance of
these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
Installation of Series ELO-231FRB
Pendent Sprinklers in recessed es-
cutcheons will void all sprinkler war-
ranties, as well as possibly void the
sprinkler's Approvals and/or Listings.
Model/Sprinkler
Identification
Numbers
Series
TY5131 - Upright 11.2K, 3/4"NPT
TY5231 - Pendent 11.2K, 3/4"NPT
TY5131 is a redesignation for C5131.
TY5231 is a redesignation for C5231,
G1870, and S2551.
MARCH, 2007
TFP344
