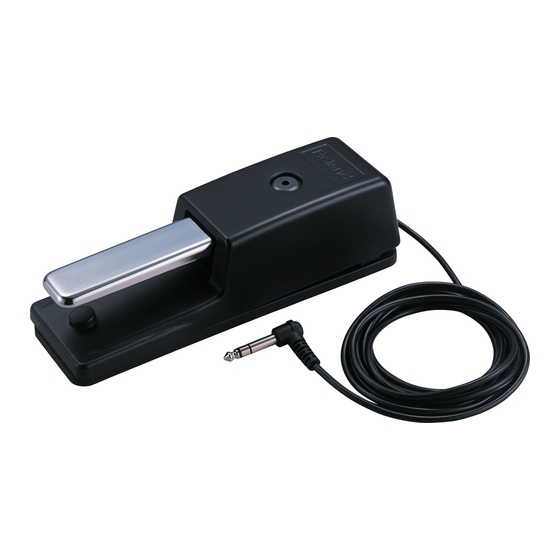

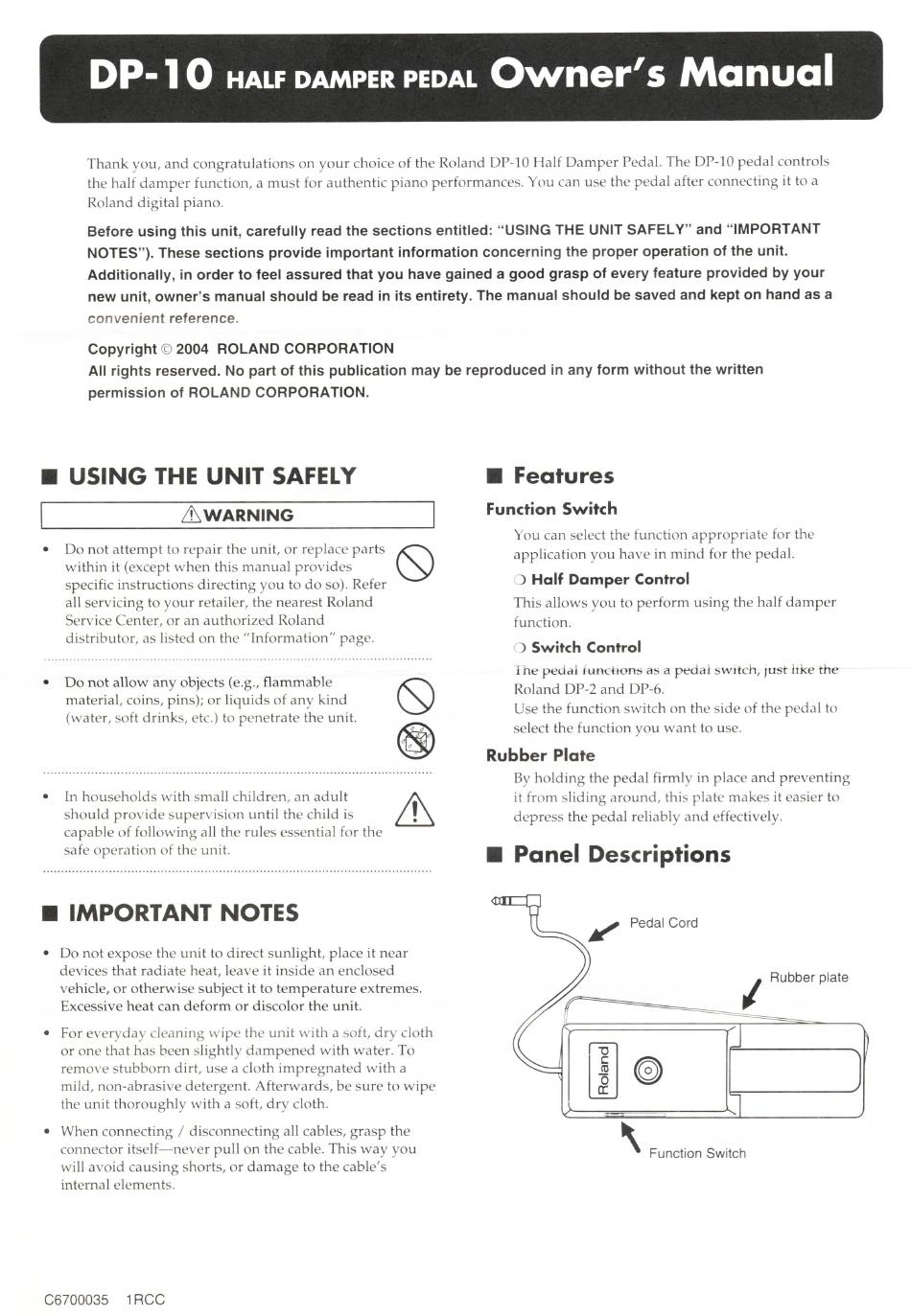

DP-10
HALF DAMPER PEDAL
Ovvner' s Manual
Thank you, and congratulations on your choice of the Roland DP-10 Half Damper Pedal. The DP-10 pedal controls
the half damper function, a must for authentic piano performances. You can use the pedal after connecting it to a
Roland digital piano.
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT
NOTES"). These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your
new unit, owner's manual should be read in its entirety. The manual should be saved and kept on hand as a
convenient reference.
Copyright© 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written
permission of ROLAND CORPORATION.
• USING THE UNIT SAFELY
LG
WARNING
•
Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the "Information" page.
•
Do not allow any objects (e.g., flammable
material, coins, pins); or liquids of any kind
(water, soft drinks, etc.) to penetrate the unit.
•
In households with small children, an adult
li\
should provide supervision until the child is
ill
capable of following all the rules essential for the
safe operation of the unit.
• IMPORTANT NOTES
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Excessive heat can deform or discolor the unit.
• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
• When connecting
I
disconnecting all cables, grasp the
connector itself-never pull on the cable. This way you
will avoid causing shorts, or damage to the cable's
internal elements.
C6700035 1 RCC
• Features
Function Switch
You can select the function appropriate for the
application you have in mind for the pedal.
O Half Damper Control
This allows you to perform using the half damper
function.
O Switch Control
1
he pedal Junctions as a pedal switch, just like the
Roland DP-2 and DP-6.
Use the function switch on the side of the pedal to
select the function you want to use.
Rubber Plate
By holding the pedal firmly in place and preventing
it from sliding around, this plate makes it easier to
depress the pedal reliably and effectively.
• Panel Descriptions
I
Rubber plate
'
Function Switch
