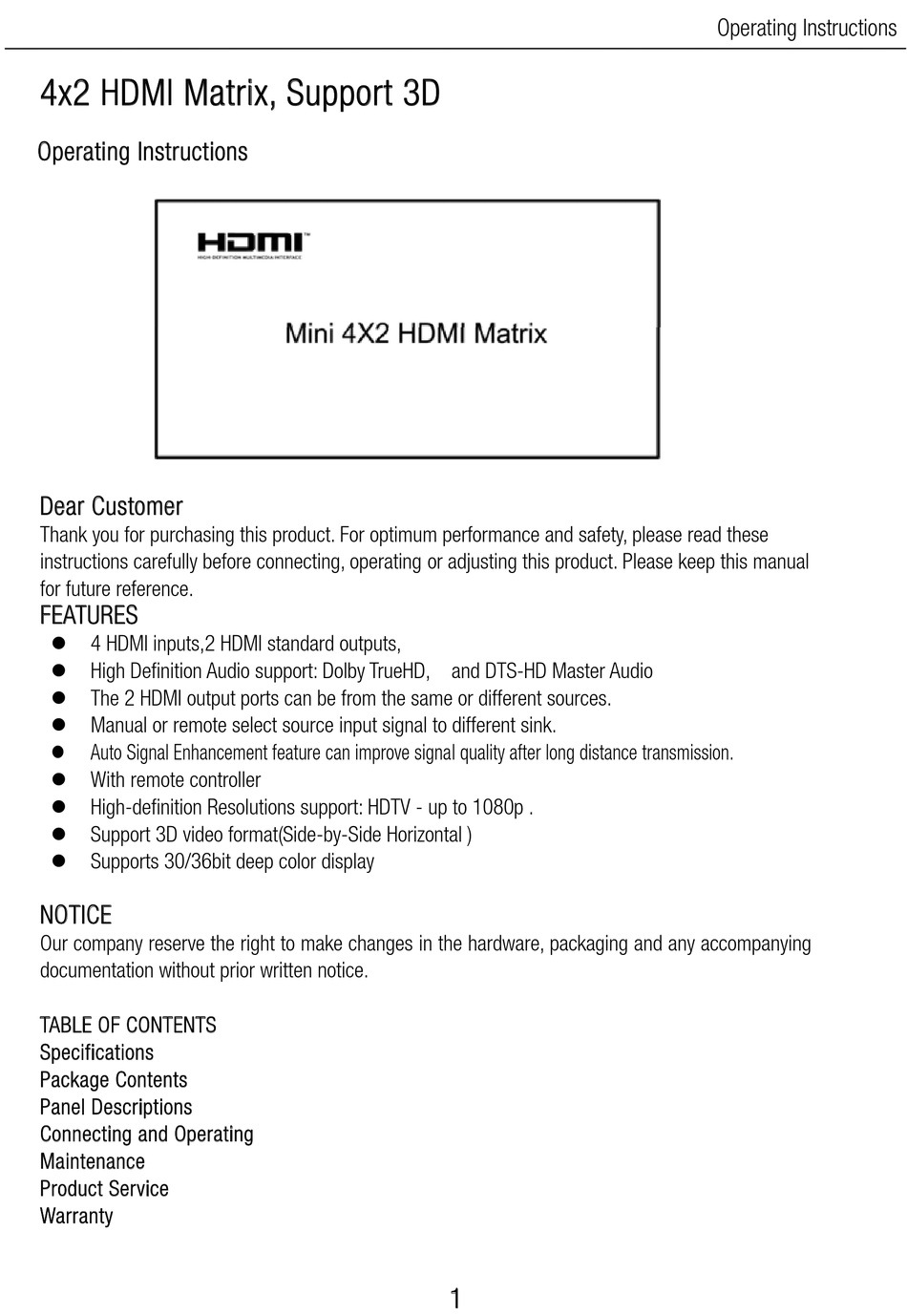

Operating Instructions 4x2 HDMI Matrix, Support 3D Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES 4 HDMI inputs,2 HDMI standard outputs, ...
Page 2
Operating Instructions SPECIFICATIONS Operating Temperature Range -5 to +35 ( ℃ +23 to +95 ) ℉ Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) Data transfer speed rate 6.75Gbps(Maximum) DTV/HDTV: Video Format Supported...
Page 3
Operating Instructions Left Panel Rear panel Right Panel Indicator of OutputB's Input source:The corresponding red LED light will illuminate according to which input you connect. Indicator of OutputA's input source:The corresponding blue LED light will illuminate according to which input you connect. Output A port Power input Input ports...
Page 4
Operating Instructions WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
