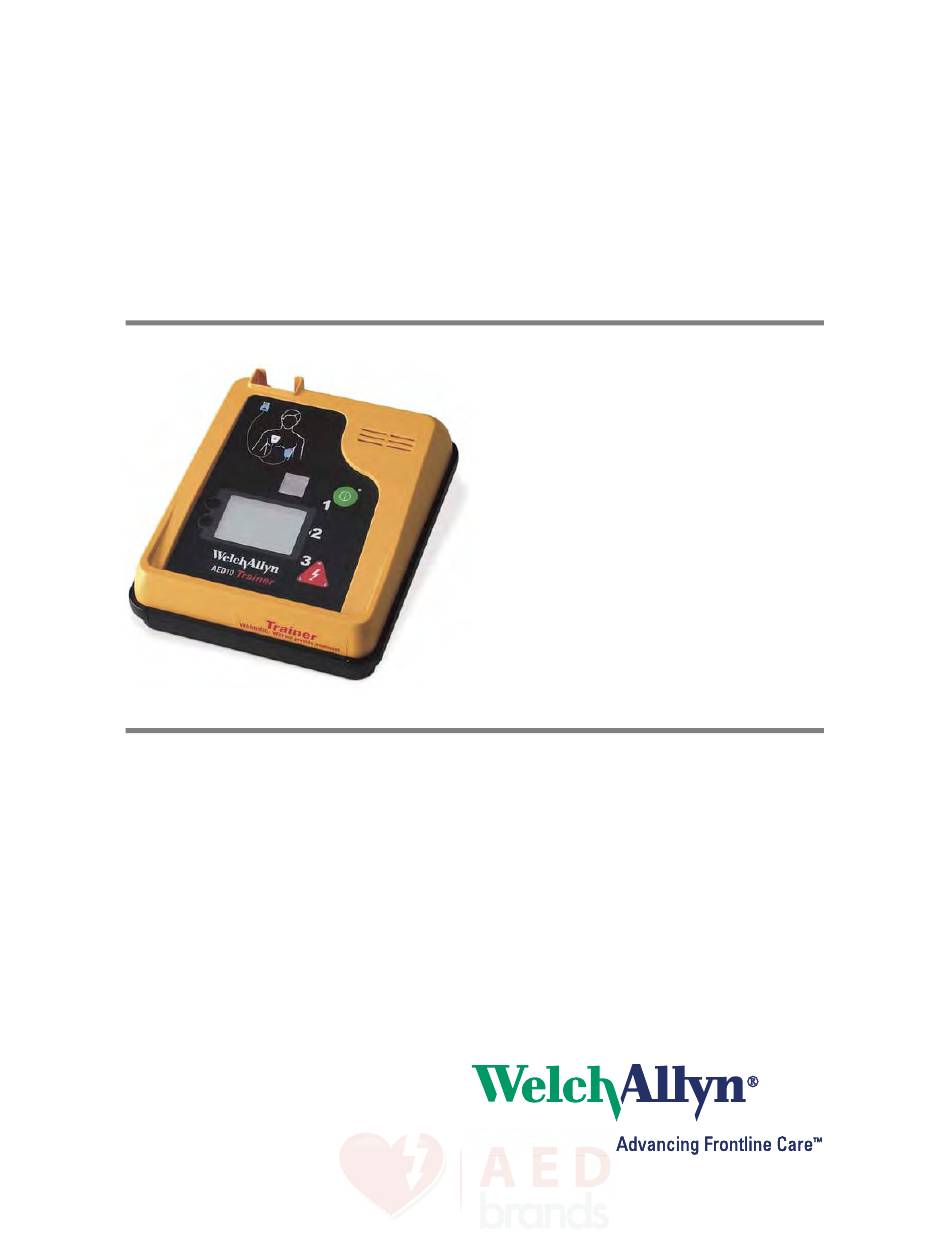

- Page 1 Welch Allyn ® AED 10 Trainer Operating Instructions Software version 01.04.XX...
- Page 2 Welch Allyn AED 10 Trainer © 2009 Welch Allyn. All rights are reserved. No one is permitted to reproduce or duplicate, in any form, this manual or any part thereof without permission from Welch Allyn. Welch Allyn assumes no responsibility for any injury to anyone, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or statement of intended use published in this manual.
-
Page 3: Table Of Contents
The Welch Allyn AED 10 Trainer is a training tool for preparing emergency responders to use the Welch Allyn AED 10 defibrillator to treat a victim of sudden cardiac arrest. The Trainer provides realistic simulation of the defibrillator without actually charging or discharging electrical energy. -
Page 4: User Interface
Displays the current battery level. The Trainer displays text and voice prompts when the battery needs to be changed. Note: The Battery Level Indicator is only available on Welch Allyn AED 10 defibrillators using software versions 2.06.02 and earlier. Menu buttons Control volume, contrast, scenario, CPR timer, and language. -
Page 5: Operation
The word “LOW” appears under the battery level symbol if the average battery voltage falls below operating levels. The Battery Level Indicator is only available on Welch Allyn AED 10 defibrillators Note using software versions 2.06.02 and earlier. -
Page 6: Menu Mode
Welch Allyn AED 10 Trainer Menu Mode Menu mode allows the user to access and set various system parameters. Menu mode is enabled by holding down the lower menu button while turning on the Trainer. Once the Trainer has been powered up into Menu mode the following menu appears on the screen: Figure 2. - Page 7 Operating Instructions Scenario Pressing the Enter button while the Scenario menu item is highlighted displays the Scenario menu, allowing the user to select different scenarios (see “Scenarios” page 9 for more details). Pressing the Next button causes a sequential display of possible Scenario numbers, and pressing the Enter button causes the current scenario number to be selected and the Save menu item to be highlighted.
- Page 8 Welch Allyn AED 10 Trainer Main Menu Enter Volume CPR Timer Menu CPR Timer Enter CPR Tempo Menu CPR Tempo Contrast Enter Main Menu Back Scenario Enter Language More CPR Timer Pressing the Enter button while CPR Timer is highlighted displays the CPR Timer menu, allowing the user to select a CPR time of 15, 30, 45, 60, 75, 90, 120, 150, or 180 seconds.
- Page 9 Operating Instructions Language Pressing the Enter button while the Language menu item is highlighted causes the Language menu to be displayed. The current Language is displayed, and pressing the Next button scrolls through the list of available languages. Each language selection is displayed in its own language as the list is traversed, and pressing the Enter button while the Save menu item is highlighted stores the currently selected language as the new language parameter.
- Page 10 Welch Allyn AED 10 Trainer Maintenance Pressing the Enter button while the Maintenance menu item is highlighted displays the Maintenance Menu. This menu is for factory use only. More Menu Maintenance Restore Defaults System Test Maintenance Service Enter Back Debug...
-
Page 11: Scenarios
Operating Instructions Scenarios The Trainer provides training scenarios that follow the American Heart Association (AHA) recommended AED training scenarios. These scenarios are preconfigured and give an AED Instructor a standard means of training and testing proficiency in AED use. Scenarios 1 to 10 may be selected with the Menu Mode Scenario menu or with the Remote Control. -
Page 12: Changing The Batteries
Welch Allyn AED 10 Trainer Changing the Batteries Remove the four screws on the back panel. 2. Remove the panel. 3. Replace all batteries at the same time with 6 C-cell alkaline batteries. After battery replacement, the status indicator will flash until the unit is powered on. - Page 13 Operating Instructions Table 3. Remote Control Buttons (continued) Allows the Instructor to select Allows the Instructor to select AHA Scenario number 3 as the AHA Scenario number 4 as the default scenario. The Trainer will default scenario. The Trainer will automatically turn off after the automatically turn off after the selection has been made.
-
Page 14: Specifications
Electromagnetic emissions (IEC 60601-1-2 Table 201) The Welch Allyn AED 10 Trainer is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn AED 10 Trainer should assure that it is used in such an environment. - Page 15 Electromagnetic immunity (IEC 60601-1-2 Table 202) The Welch Allyn AED 10 Trainer is intended for use in the electromagnetic environment specified below. The customer or the user of the Welch Allyn AED 10 Trainer should assure that it is used in such an environment.
- Page 16 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Welch Allyn AED 10 Trainer is used exceeds the applicable RF compliance level above, the Welch Allyn AED 10 Trainer should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Welch Allyn AED 10 Trainer.
- Page 17 Welch Allyn AED 10 Trainer (IEC 60601-1-2 Table 205) The Welch Allyn AED 10 Trainer is intended for use in an environment in which radiated RF disturbances are controlled. The customer or the user of the Welch Allyn AED 10 Trainer...
- Page 18 Welch Allyn AED 10 Trainer...
